| Prod Model: |
ZJQZ-2620 |
| Max. Glass Sheet Size: |
2500*1900mm |
| Glass Thickness: |
2~19mm |
| Dimensions (L*W*H): |
3248*2720*1140mm |
| Max. Cutting Speed: |
25m/Min |
| Air Pressure: |
0.6~0.8MPa |
| Pneumatic Parts: |
Airtac (Taiwan) |
| Low Voltage Electric Parts: |
Schneider (France) |
| PLC: |
Omron |
| Type: |
Glass Cutting Machine |
| Certification: |
ISO |
| Control System: |
PLC |
Product Description

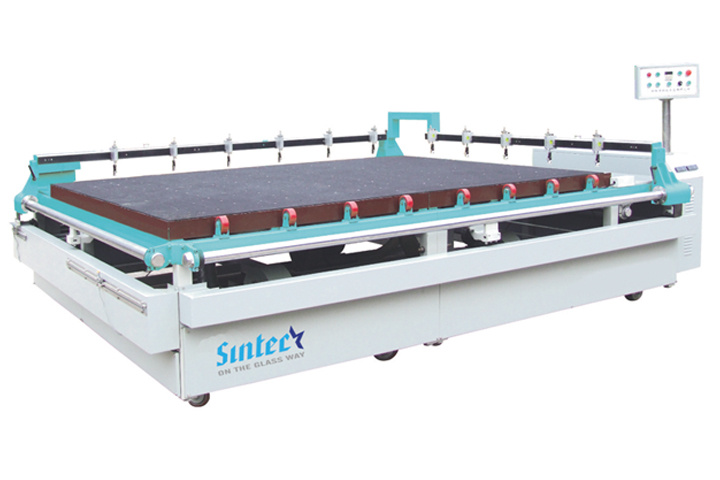

ZJQZ-620 Semi-Automatic Glass Cutting Table
Characteristic-

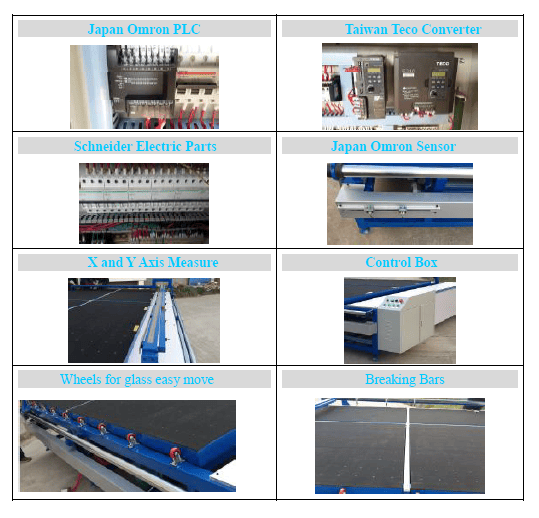

Omron PLC control -
Multi-cutters, high efficiency and high precision-
Self-lubricating system-
Air float table for glass easy move-
Removable cutting wheels-
Cutting boxes interval distance manual adjustment -
Auto-run available on the control panel -
Both of the cutting arms return to origin after cutting work -
Controlled by frequency converter Technical parameter: | Model | Max. glass size | Thickness | Dimensions (L*W*H) | Min. size | Weight |
| ZJQZ-800 | 700*650mm | 0.7~15mm | 1400*1510*1140mm | 15*15mm | 600kg |
| ZJQZ-1612 | 1500*1100mm | 2~15mm | 2248*1910*1140mm | 15*15mm | 900kg |
| ZJQZ-2116 | 2000*1500mm | 2~15mm | 2748*2310*1140mm | 15*15mm | 1530kg |
| ZJQZ-2620 | 2500*1900mm | 2~15mm | 3248*2720*1140mm | 15*15mm | 1650kg |
| ZJQZ-3725 | 3660*2440mm | 2~15mm | 4544*3285*1140mm | 15*15mm | 2050kg |
| ZJQZ-4026 | 3900*2500mm | 2~15mm | 4980*3385*1140mm | 15*15mm | 2250kg |
Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.
To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.
After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.
Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.
Sintec for its excellent quality and perfect after sale service by the customers trust and support,
We will take sincere attitude of friends at home and abroad, joint development of glass machinery manufacturing industry brilliant tomorrow!
