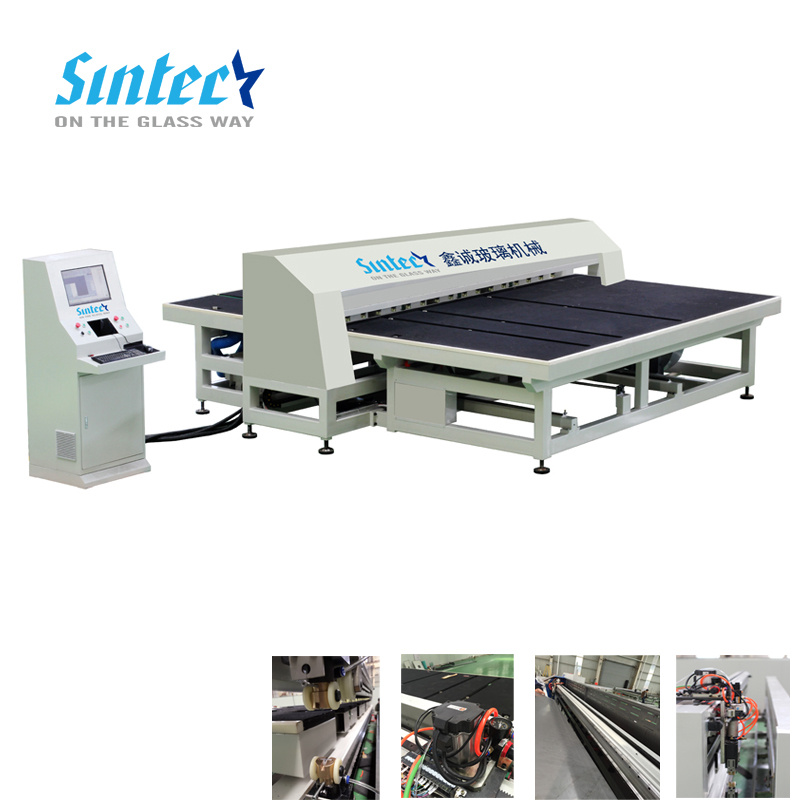

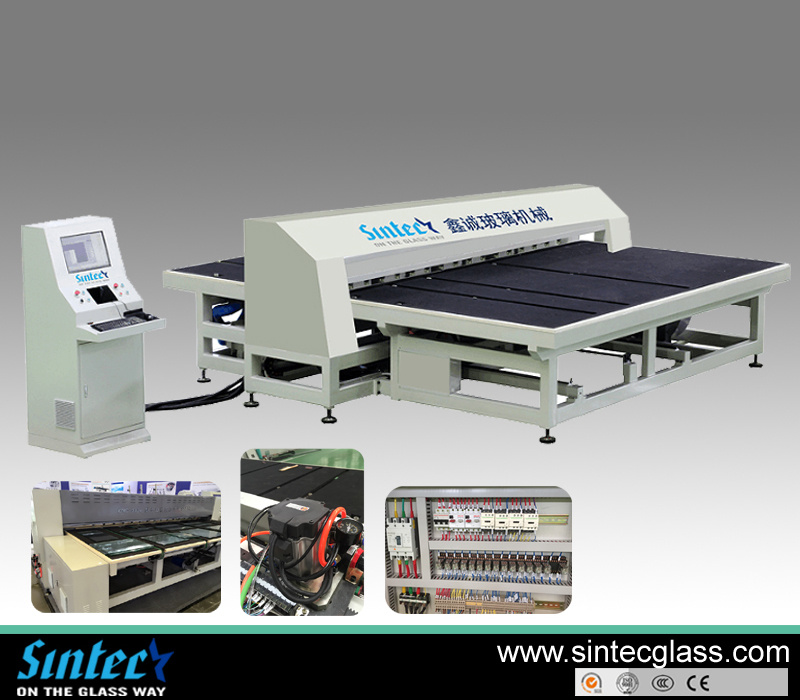

EVA/ PVB Laminated Glass Cutting Machine, Laminated Glass Cutting Table
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XC-LM3826 |
| Type: |
Glass Cutting Machine |
| Certification: |
ISO |
| Control System: |
Industrial Computer |
Product Description
Characteristic1. Easy operation, high cutting precision2. International standard steel with perfect surface treatment 3. Key area was annealed and milled, which ensures the high stability and intensity4. Cutting and breaking pressure adjustable5. Far-infrared heating temperature and heating time adjustable 6. Machine includes three sections and bridge frame7. The first two sections are glass loading and transfer area with auto location system and mechanical location device 8. The third section has functions of glass stretch and glass break9. Bridge frame is the center of the cutting system, which includes up and down double cutters, upper clamp and film far-infrared cutting. Main mechanical parts:- Rack and rail: KHK Japan
- Guide rail: Hiwin Taiwan
- Cutter wheel and cutter holder: Bolhe Germany
Main electric parts: - CNC System: Galil (USA)
- Servo motor: YASKAWA (Japan)
- Pneumatic parts: Airtec (Taiwan)
- Low voltage electric parts: Schneider (France)
- Cutting pressure valve: SMC (Japan)
Technical parameter: | Machine Name | Automatic Laminated Glass Cutting Machine |
| Model | XC-LM3826 |
| Max. Glass Sheet Size | 3700*2500mm |
| Min. Glass Cutting Size | 400*350mm |
| Glass Thickness | 3+3mm-------12+12mm |
| Heating Temperature and Time | Manual Set |
| Max. Cutting Speed | 120m/min |
| Dimensions | 7100*4500*1500mm |
| Weight | 3000KG |
Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.
To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.
After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.
Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.
Sintec for its excellent quality and perfect after sale service by the customers trust and support,
We will take sincere attitude of friends at home and abroad, joint development of glass machinery manufacturing industry brilliant tomorrow!
