| Prod Model: |
VCT-1590R-4H |
| Machine Size(X*Y): |
1100X1500mm |
| Spindle Power: |
1500W* 4PCS |
| No. Of Rotary: |
4 PCS |
| Motor Driver: |
Stepper Motors (8PCS) |
| Rotary Transmission: |
Belt Transmission |
| Xyz Transmission: |
Tbi Ball Screw for Xyz Axis |
| Max Engraving Speed: |
12000mm/M |
| Air Cylinder Support: |
Yes (300mm Long Air Cylinder) |
| Oil Lubrication System: |
Yes |
| Controller: |
4 Axis Nc Studio Controller with Handle Wheel |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
4 Axis |
Product Description

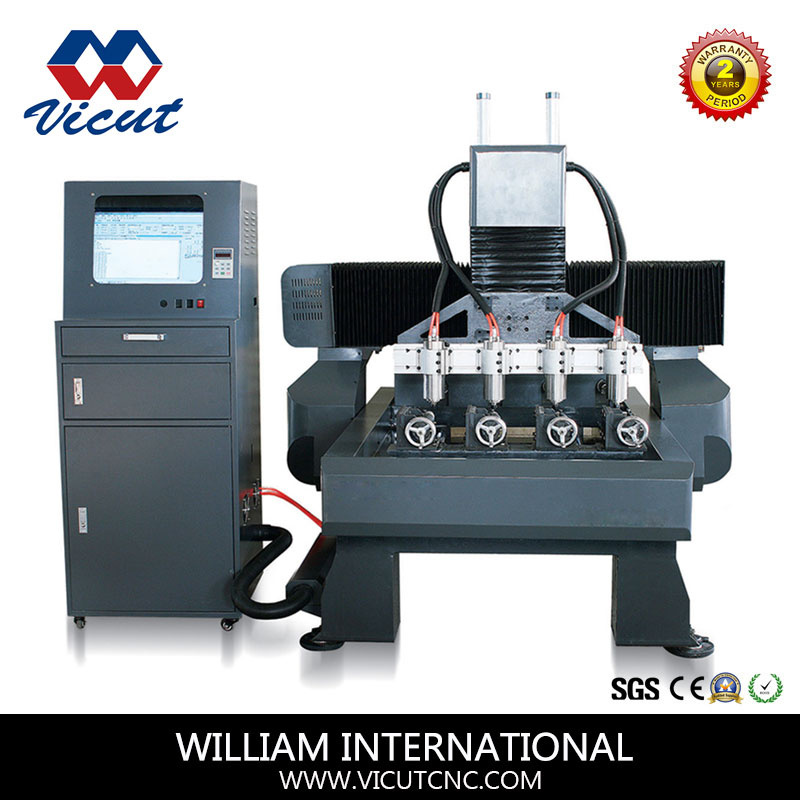

Rotary CNC Router Woodworking Engraving Machine (VCT-1590R-4H)
Features:
1. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
2. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time to realize 3D rotary engraving column material.
3. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.
4. Use gear rack locking system instead of common screws to adjust and fix the rotary device, more tight and stable.
Applications:
Material: engraving and cutting wood sheet, PVC, ABS Sheet, aluminum sheet, brass, etc.
Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.
Technical Parameters:
| Model | VCT-1590R-4H | VCT-3512R-6H | VCT-2512R-8H | VCT-2013R-2Z-8H |
| Dimension(X*Y) | 1100×1500mm (3.6'x4.9') | 2600 x 2000mm
(8.6'x6.6') | 2500 x2000mm
(8.2'x6.6') | 2100×2000mm
(6.9'x6.6') |
| 3D Rotary Working Size | 900mm(length) x 150mm(rotary diameter) | 1200mm(length) x 350mm(rotary diameter) | 1200mm(length) x 250mm(rotary diameter) | 1300mm(length) x 200mm(rotary diameter) |
| Spindle Power | 1500W×4PCS | 2200W×6PCS | 2200W×6PCS | 2200W×8PCS |
| No. Of Rotary | 4 PCS | 6 PCS | 8 PCS | 8 PCS |
| Motor Driver | Stepper Motors (8pcs) | 6pcs Panasonic Servo Motors
(2pcs support rotary, 1pcs for X axis, 1pcs for 2Z, 2pcs for Y axis) | 7pcs Panasonic Servo Motors
(2pcs support rotary, 1pcs for X axis, 2pcs for 2Z, 2pcs for Y axis) |
| Rotary Transmission | Belt Transmission | Gear box (reduction rate: 1:25) /Belts transmission is optional |
| XYZ Transmission | TBI Ball Screw for
XYZ axis | TBI Ball Screw 40mm for Z axis, High precision Gear Rack for XY axis |
| Max Engraving Speed | 12000mm/m | 15000mm/minute |
| Air Cylinder Support | Yes (300MM long air cylinder) |
| Oil Lubrication system | Yes |
| Tool Diameter | 4,6, 8, 12mm |
| Body Structure | Thick steel tube welding |
| Guiding Rails | XYZ Taiwan Linear Square Rails |
| Reposition Accuracy | <0.03/300mm |
| Spindle Speed | 6000~24000rpm |
| Controller | 4 axis NC Studio Controller with handle wheel ( PC control ) |
| Format of instructions | G code or HPGL |
| Voltage | 380V/60Hz or 220V/50HZ |
| Weight | 600KG | 2500KG | 2100KG | 2000KG |
| Packing size(L*W*H) | 1485x 1300x1750mm ( 3.38CBM) | 4200x2200x2200mm (20CBM) | 2700×2200×2200mm(13.1CBM) | 2700×2200×2200mm(13.1CBM) |

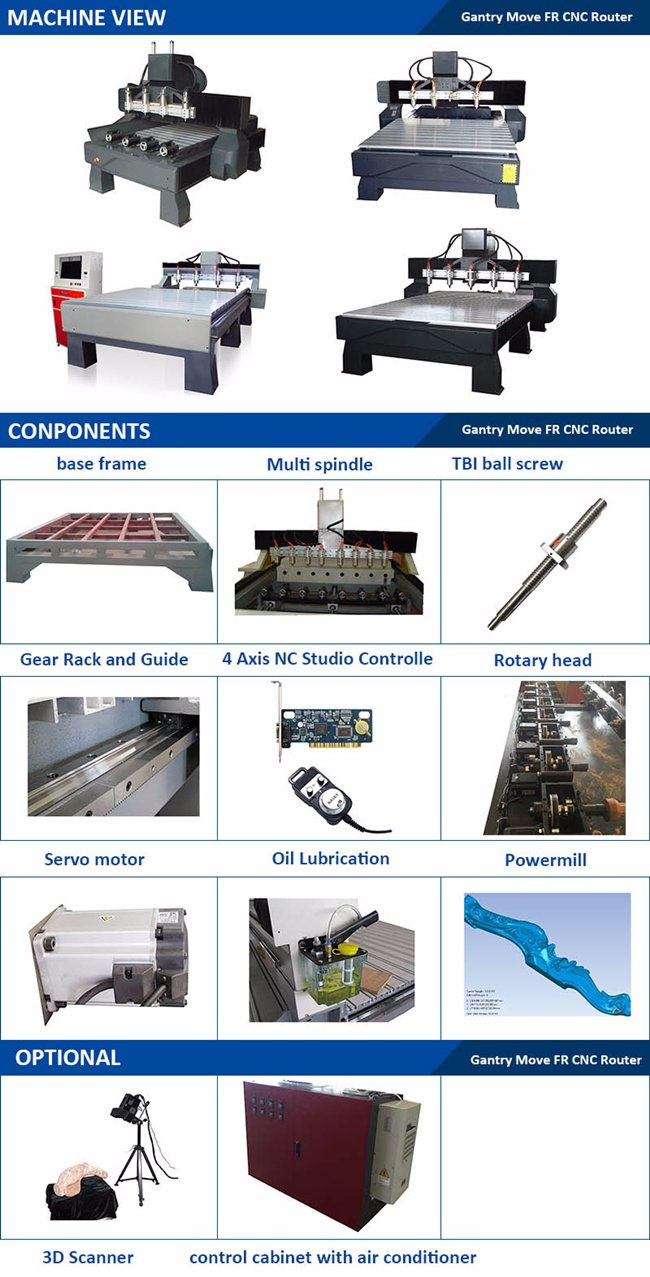

Machine Details
1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. Multiple Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; we offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V,3Phase-50-60Hz.Series of tools are available, for example, diameter 3.175mm,4mm,6mm,8mm and 12.7mm.
3. Ball Screw: Use TBI ball screw for Z axis, anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy.
4. Gear rack: XY axis use high accuracy gear rack. The combination for ball screw and gear rack makes machine working more accurate and stable.
5. NC Studio 4 AXIS Controller: 85A model. PC based NC Studio Controller with friendlier human& machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Handle wheel can be used to control the movement of machine.
6. Servo Motor: AC Panasonic Servo motor for more smooth motion and triple working speed and they require no regular maintenance.
7. Rotary Axis: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; we can put different number of rotary axis according to specified requirement.
8. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
9. Central Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
10. 4 AXIS Software: You can use power-mill software to make processing of 3D files which was scanned with 3D scanner. We can make 4 axis movements, AXYZ axis can move at the same time.
Optional
1. 3D Scanner: with the 3D scanner you can scan any objects which you want to make by machine, input the scan file generated by scanner to computer, and process it with postprocessor software, saved it as G code which can be recognized by CNC router.
2. Control cabinet with air conditioner: the air conditional installed on the control cabinet, ensure the machine can be used in tropical area countries to reduce the tempreture inside of the cabinet, avoid damage of the electric components
