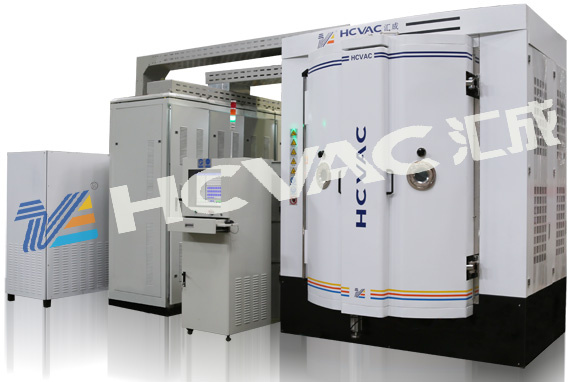

PVD Titanium Coating Machine for Stainless Steel Sink, Basin, Kitchen Ware
| Price: |
US $ 8-88/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HCCA-1618, HCCA-1215 |
| Name: |
Ceramic Basin PVD Coating Machine |
| Type 1: |
Physical Vapor Deposition Machine |
| Hcvac Customer: |
Kohler, Toto, Roca, Moen etc. |
| Coating Film: |
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Coating Color: |
Gold, Rosegold, Silver, Black, Blue, Ect |
| Operating System: |
PLC Touching Screen Automatic Control |
| Service: |
Installment, Training, After Sale Service |
| Coating Material: |
Stainless Steel, Metal Alloy, Ceramic, Glass etc. |
| Coating Technology: |
Magnetron Sputtering+Arc Ion Coating |
| Brand: |
Hcvac, Dongguan, China |
| Coating: |
Vacuum Coating |
| Type: |
Ceramic Basin PVD Coating Machine |
| Substrate: |
Ceramic Basin PVD Coating Machine |
Product Description
PVD titanium coating machine for stainless steel sink, basin, kitchen wareThis machine mainly integrates the technology of MF magnetron sputtering and electric arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films.

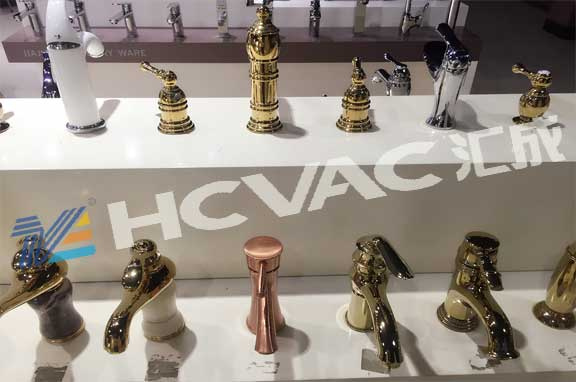

Applied industry: It is widely used in the sanitary ware, watchband, watchcase, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.
It equips with the new target and the arc power supply, arc spot is stable. It is not easy running arc, the current is low and ionparticles is small. Applied to metal, ceramics, glass and other materials of the surface coating of hard metal film and metal compounds film. Pumping speed faster, vacuum stability, and superior quality film, widely used in hardware, watches, glasses, tools, dies, metal, glass, ceramics, building materials, and other surface treatment industry.
HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
Films classified with colors:
Real gold an real rosegold coating
Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC
Coating film performance:
(1) The coating is uniform, dense, with good adhesion, high hardness and low friction factor.
(2) The color does not fade over 2-3 years, which can meet the ROHS environmental standard.
(3) High physical property, good abrasion resistance; non-stick dirt on the surface of the coating.
(4) Stable performance, perspiration resistance/salt mist/abrasion/bend/RCA are all qualified.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile: 0086-13825720037Technical parameters:Mode
Dimension | JTL-900 | JTL-1100 | JTL-1250 |
| 900*1000mm | 1100*1000mm | 1250*1100mm |
Coating mode and main confirguration | Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets |
Six multi-arc targets + a pair of twin (MF)magnetron sputtering targets | Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets |
| Power source | Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source. |
| Process gas control | Quality flowmeter + electromagnetism ceramic valve |
| Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
| Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
Why a HCVAC system? Over 1000 plants installed worldwideQuick cycle timesHigh production capability with low energy consumptionMore up time due to ease of loading/unloading and low maintenanceHigh productivity with only a single operatorSteel process chambers, built to lastEco-friendlySpace saving designPVD option available on all plants1 year component warranty and 12 years minimum guaranteed working lifeComplete global network of consulting, engineering and renowned after sales service
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
