PVD Coating Machine for Bathroom Faucet, Water Basin, Toilet Accessories

PVD Coating Machine for Bathroom Faucet, Water Basin, Toilet Accessories
Price: US $ 8-88/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: HCKB-1619, HCKB-1612
Type 1: Faucet PVD Coating Machine
Name: Faucet Titanium Coating Machine
Hcvac Customer: Kohler, Toto, Roca, Jomoo etc.
Coating Film: Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc.
Coating Color: Gold, Rosegold, Silver, Black, Blue, Ect
Operating System: PLC Touching Screen Automatic Control
Service: Installment, Training, After Sale Service
Coating Material: Stainless Steel, Metal Alloy, Ceramic, Glass etc.
Coating Technology: Magnetron Sputtering+Arc Ion Coating
Brand: Hcvac, Dongguan, China
Coating: Vacuum Coating
Type: Sanitary Ware PVD Ion Coating Machine
Substrate: Faucet Gold Plating Machine

Product Description

PVD coating machine for bathroom faucet, water basin, toilet accessories

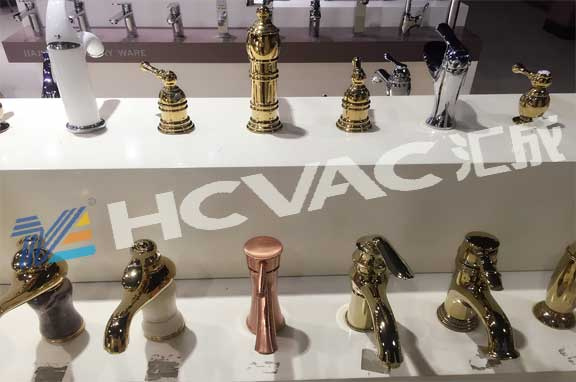

The machine is mainly design for sanitary ware/bathroom fitting parts. It's equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.

Applied industry: It is widely used in the sanitary ware, watchband, watchcase, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.




HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.

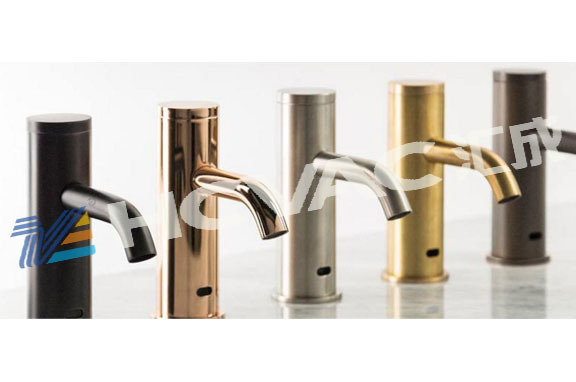

Films classified with colors:
Real gold an real rosegold coating

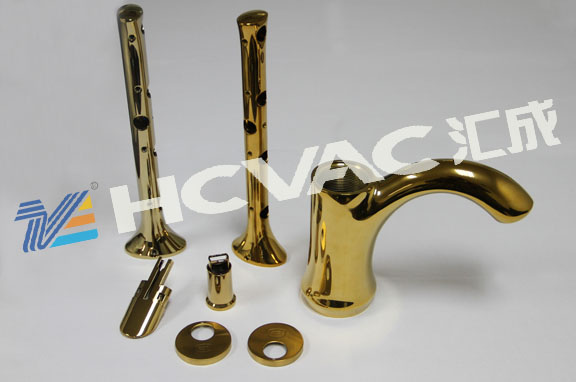

Imitation gold series: TiN, ZrN, TiN+Au, ZrN+Au
Rose Gold Series: TiCN, TiAlN, TiCN+Au--Cu, TiAlN+Au, Cu
Silver white series: CrN, CrSiN, Zr (micro N)
Grey series: Ti, stainless steel (S.S), (S.S) N
Coffee color series: TiCN, TiAlCN, ZrC
Blue series: TiO, CrO, TiALN
Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C, O) and DLC

Coating film performance:
(1) The coating is uniform, dense, with good adhesion, high hardness and low friction factor.
(2) The color does not fade over 2-3 years, which can meet the ROHS environmental standard.
(3) High physical property, good abrasion resistance; non-stick dirt on the surface of the coating.
(4) Stable performance, perspiration resistance/salt mist/abrasion/bend/RCA are all qualified.




We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.

ISO 9001 standard to ensure the quality can meet the customer's requirements.


Easy to implement

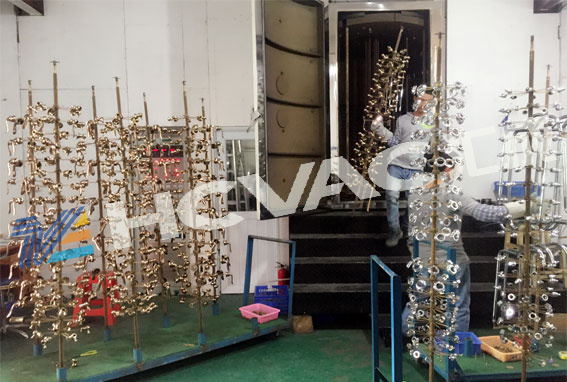

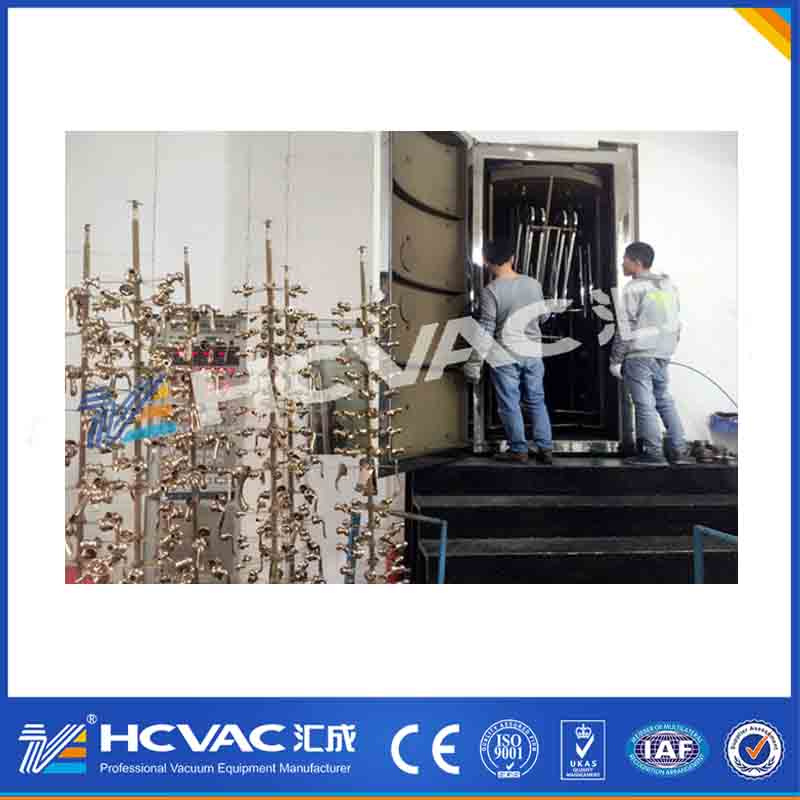

To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.


Please feel free to contact us for further information!


Contact: Lillian Yang

Mobile: 0086-13825720037



Technical parameters:
Mode
Dimension
HCCA-1215HCCA-1612HCCA-1619
1250*1500mm1600*1200mm1600*1900mm

Coating mode and main confirguration
Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets
Six multi-arc targets + a pair of twin (MF)magnetron sputtering targets
Twelve multi-arc targets + two sets of  plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets
Power sourceElectric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source.
Process gas controlQuality flowmeter + electromagnetism ceramic valve
Vacuum chamber structureVertical single(side) door, pump system postposition, double water-cooling
Vacuum systemMolecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa)
Workpiece baking temperature
Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion modePublic rotation Frequency control: 0-20 rotation per minute
Measure modeNumber display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control modeManual/Automatic/PC/PLC + HMI/PC  four choice of control mode
RemarkWe can design the dimension of the equipment according to customer's special technique requirement.


Why a HCVAC system?

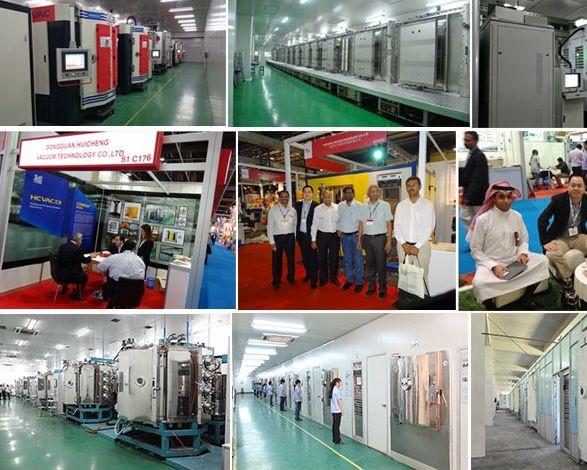

Over 1000 plants installed worldwide
Quick cycle times
High production capability with low energy consumption
More up time due to ease of loading/unloading and low maintenance
High productivity with only a single operator
Steel process chambers, built to last
Eco-friendly
Space saving design
PVD option available on all plants
1 year component warranty and 12 years minimum guaranteed working life
Complete global network of consulting, engineering and renowned after sales service
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.

Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.

Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
