Professional Table Moving Flat and Rotary Wood Engraving Machine Vct-TM2515fr-8h

Name: Professional Table Moving Flat and Rotary Wood Engraving Machine Vct-TM2515fr-8h
Brand: thisfurniture.com
SKU: 786618375
Availability: InStock
Rating: 4.5 (38 reviews)

Price:	US $ 11000-29000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	VCT-TM2515FR-8H
Working Size:	25001500250mm(8.2'4.9'0.8')
Net Weight:	3000kgs
Max Speed:	15000mm/Min
Resolution:	<0.03/300mm
Spindle Power:	Water Cooling 2.2kw*8PCS
Spindle Rotation:	6000~24000rpm
Xyz Transmission:	Xyz Tbi 4010 Ball Screw
Controller:	4 Axis Nc Studio Controller with Handle Wheel( Use
Drive System:	Panasonic/Schneider Servo Motors
File Format:	G Code or Hpgl

Product Description

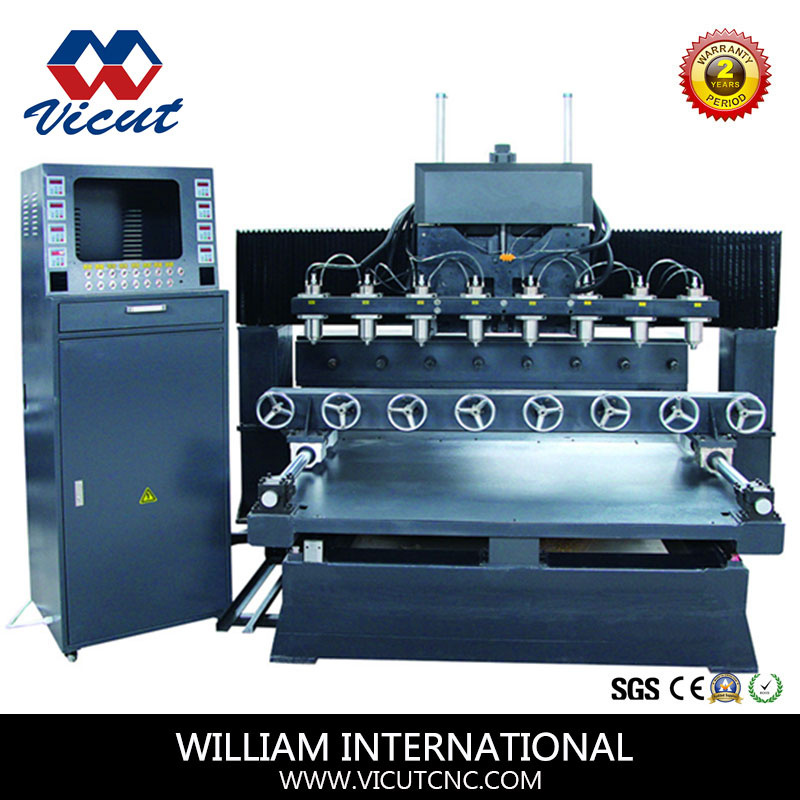

Table Move Flat & Rotary CNC Carving machine

Features:

1. Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.
2. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.
3. Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine.
4. This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.

Applications:
Material: engraving and cutting on flat and column material, such as: wood, acrylic, PVC, ABS, aluminum, brass, etc.
Field: mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.

Technical Parameters:

Model	VCT-TM2515FR-8H	VCT-TM2523FR-10H
Dimension	3000×1900mm(9.8'x6.3')	3000×2700mm(9.8'x8.9')
2D Working Size	2500×1500×250mm(8.2'x4.9'x0.8')	2500×2300×250mm(8.2'x7.5'x0.8')
Spindle Power	Water cooling 2200W×8PCS	Water cooling 2200W×10PCS
No. Of Rotary	8 PCS	10 PCS
Motors & Drivers	XYZ axes use Panasonic/Schneider servo motor, A axis use Leadshine hybrid servo
Rotary Transmission	One hybrid servo motor drive one rotary with Belt box transmission ( Gear box transmission is optional)
3D Rotary Working Size	1100mm(length)*250mm(rotary diameter)	2000mm(length)*250mm(rotary diameter)
Air Cylinder Support	Yes (300MM long air cylinder)
Oil Lubrication system	Yes
Tool Diameter	4/6/8/12mm
Body Structure	Thick steel tube welding
XYZ Transmission	XYZ TBI 4010 ball screw
Guiding Rails	XYZ Taiwan PMI Linear Square Rails
Reposition Accuracy	<0.03/300mm
Max Engraving Speed	15000mm/m
Spindle Speed	6000~240000rpm
Controller	4 axis NC Studio Controller with handle wheel ( Use computer to control the machine)
Format of Instruction	G code or HPGL
Voltage	380V/60Hz or 220V/50HZ
Weight	3000KGS	3500KGS
Packing Size	3000×2200×2200mm(15CBM)	3000×2200×2200mm(15CBM)

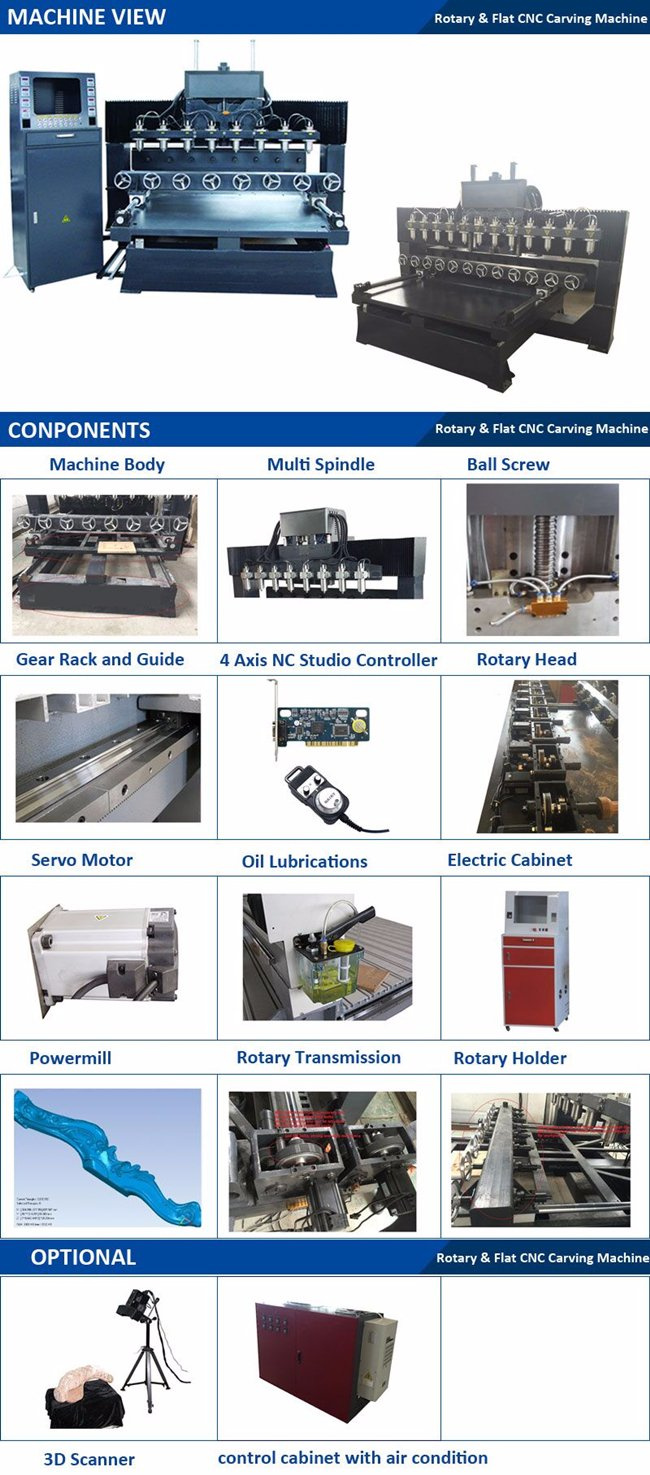

Details:
1. Base Frame: Table move machine structure, with cements inside of gantry holder, increases the total weight. The heavier base frame is made of heavy-duty tubular steel that is welded, fixed with precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true steady over the operational life of the machine.
2. Multiple spindle and holder: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; we offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.
3. Ball screw transmission: We use precision TBI ball screw 4010 for XYZ AXIS, ensures high accuracy.
4. NC Studio 4 AXIS Controller: 85A model. PC based NC Studio Controller with friendlier Human& machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control.
5. Square rails: Original Taiwan PMI linear guide square rails for XYZ axis, carefully installed and regulated by experienced worker with special purpose instrument, and this assures smooth motion and long term reliability.
6. Rotary holder: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; we can put different number of rotary axis according to specified requirement.
7. Motor and Driver: we use 5 sets Panasonic /Schneider servo motors and drivers, including 2 sets support 8 rotary,3 motors for XYZ axis.
8. Central oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
9. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
10. 4 AXIS Software: You can use power-mill software to make processing of 3D files, which was scanned with 3D scanner. We can make 4 axis movements(AXYZ axis moves at the same time).

Optional:
1. 3D Scanner: with the 3D scanner you can scan any objects which you want to make by machine, input the scan file generated by scanner to computer, and process it with postprocessor software, saved it as G code which can be recognized by CNC router.
2. Control cabinet with air conditioner: the air conditional installed on the control cabinet, ensure the machine can be used in tropical area countries to reduce the temperature inside of the cabinet, avoid damage of the electric components

CNC Engraving and Cutting Solution Provider

WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.

With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.

Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.

Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.

Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.

Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
