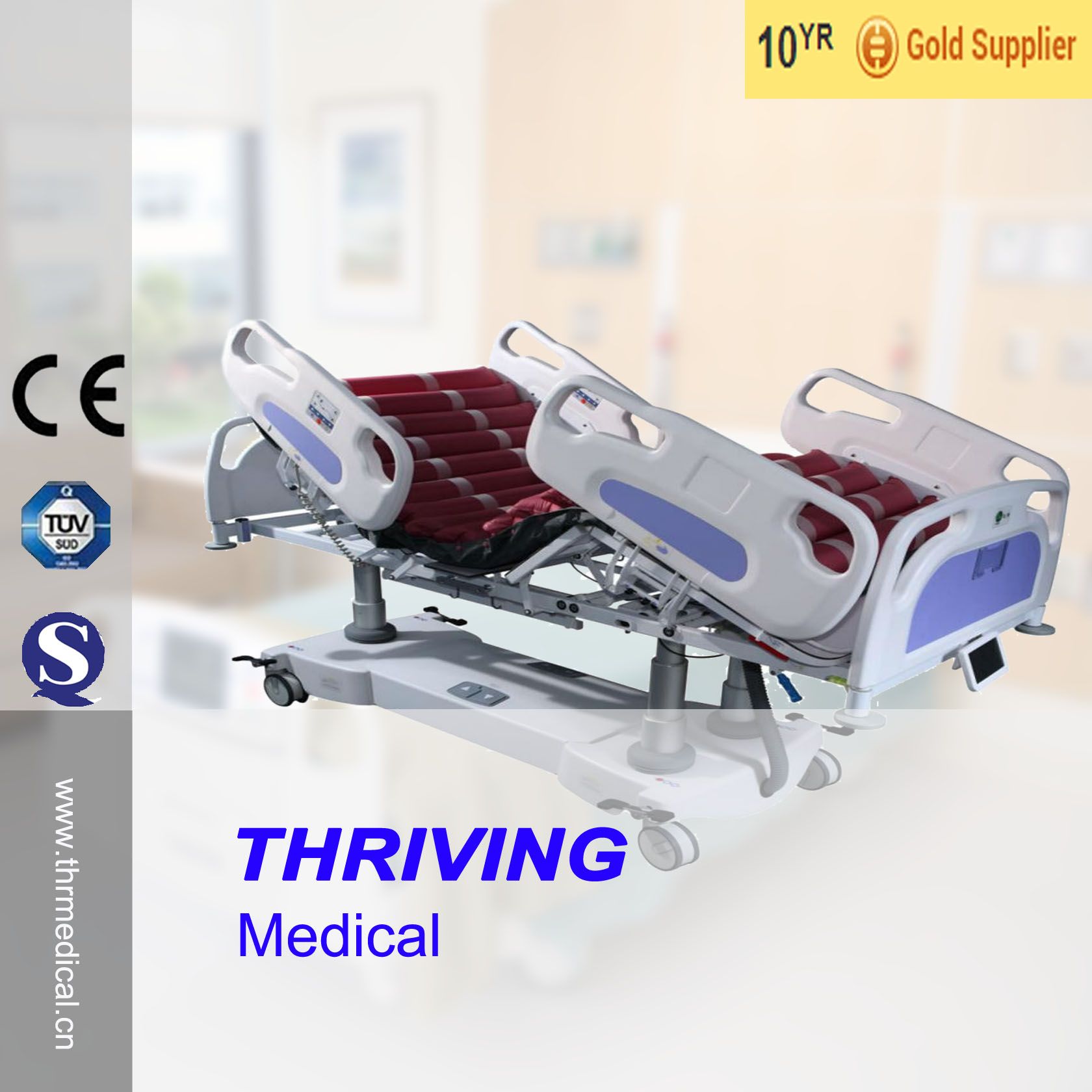

Professional ICU Electric Multi-Function Hospital Bed (THR-IC-15)

Prod Model:	THR-IC-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	multi-bed position available
X-ray Examination:	available
Precise Scale System:	available
Auto Contour Function:	available
Controllers:	Built-in side rail and foot board
Bed Exit Alarm:	available
Backrest Manual CPR:	available
Thighrest Manual CPR:	available
Night Light:	at the bottom of the bed
Rechargeable Battery Back-up:	Up to 72 hours of standby time in normal use
Material:	Metal
Folded:	Unfolded
Certification:	CE

Product Description

THR-IC-15 Professional ICU Electric Multi-Function Hospital Bed


Brief Introduction:
THR-IC-15 is widely used for patients' diagnosis, critical care and recovery. With excellent multifunction and satisfactory appearance, IC-15 ICU bed has pallet position adjustment, precise scale system and lateral tilt function. The can be connected with wireless CCM system which can control the bed and monitor the beds condition. The bed greatly reduces the work strength of caregivers and improves the nursing quality to patients.

Multi-bed position:
Droved by the actuator of German Dewert, the bed can change the height of the pallet, the inclination angle of backrest segment and thigh rest segment, and the angle of longitudinal and lateral tilt. Mean while IC-15 has one-key preprogrammed CPR position, cardiac-chair, Fowler position, and shock position. It meets all the requirement from caregivers and patients.

Lateral tilt function:
It can effectively prevent pressure ulcers and resolve the problem of regularly turning over the patients with pulmonary infection. It also provide better drainage after operation. Special mattress (personal shape) and belts for lateral tilt are available.

Precise scale system:
Using Germany HBM sensor, the scale system reaches precision up to 50g. The absolute and differential weight can be measured continuously for adjusting the dosage of the drug and the volume of the transfusion.

X-ray examination:
X-ray translucent material of the pallet and X-cassette tray behind backrest segment make it easily to take X-ray picture of upper body without moving patient. Optional X-cassette tray below the pallet allows C arm to exam whole body.

Advanced operation and clear LCD display:
THR-IC-15 has three controllers, touch screen(6 inch), siderail controller and foot controller.
The main controller, touch screen can show the absolute weight, differential weight and medical record(should be with CCM system). Lockable Siderail controllers in both side of the backrest segment are available for patients in any positions. Foot controllers provide caregivers with simple operation of the bed while hands are not free.

Humanized Dual-Regress function:
When adjusting the backrest and thighrest segment, they simultaneously and smoothly slide apart. This effective design prevent the formation of pressure ulcers and avoid the wound split.

Technology characteristic of THR-IC-15
(1) Angle of lateral tilt: 30
(2) Pre-programed positions: Cadiac-chair, Fowler position, shock position, CPR position, 3examination position.
(3) Patient surface is made of HPL which is X-ray translucent and water-resistant.

Manual and electric CPR:
(1) 2 operating system: 6inch touch screen, handset.
(2)Scale system with high precision up to 50g. Absolute and differential weight can be displayed and weight digit can be frozen.
(3) Dual-Regress function
(4)X-ray tray behind backrest segment for upper body examination, and below the pallet for whole body examination.

Humanized functions:
(1) With high volume battery, 50 basic operates available while power cut.
(2) Adopting 150mm German TENTE medical castors and central brake system, the bed can bed moved smoothly in any direction or in a straight direction or be braked.
(3) 200mm bed pallet extension.
(4) Removable head and foot board
(5) Side rails can be folded under the pallet.
(6) Each side of the pallet has 2 drainage hooks and holes in corners of the bed for drip bottle holder.
(7) Bumpers in 4 corners of the bed
(8) Fifth castor makes it easy for the bed to turning around and entering and exiting lift.
(9) The level of water proof is IPX4.

Trusty quality:
Yy0571-2005/IEC60601-2-381996 special safety requirements of medical electrical beds
GB9706.1-1995/IEC601-1-1998 safety requirements of electrical system for medical device
Certified by ISO9001: 2000 and ISO 13485: 2000.
CE mark.

Specifications
DC Linear Actuators	2
Lifting Columns	3
Safety supporting load (include the mattress and the accessories)	230kg
Overall Length	2000mm
Overall Length with extended platform	2200mm
Overall Width	1030mm
Height Adjustment	510mm-910mm
Angle of back rest segment inclination	0°- 75°
Angle of thigh rest segment inclination	0°- 45°
Angle of Shank rest segment inclination	0°- 40°
Trendelenburg/Anti-trendelenburg	±17°
Angle of lateral tilting	30°
Weight system precision	100g
Backrest segment regress distance	120mm
Thighrest segment regress distance	90mm
Backrest x-ray cassette holder	420mm×650mm
Diameter of Castors	150mm
Voltage	220~230V, 50Hz~60Hz Standard (110~127V, 50Hz~60Hz Option)
Waterproof Mattress(ICM-500)	1
Night light	1
X-ray examination tray for backrest	1
IV pole	1
Trapeze Bar	Optional
Wireless monitoring system (wireless control software for nurse station)	Optional(software is free)
