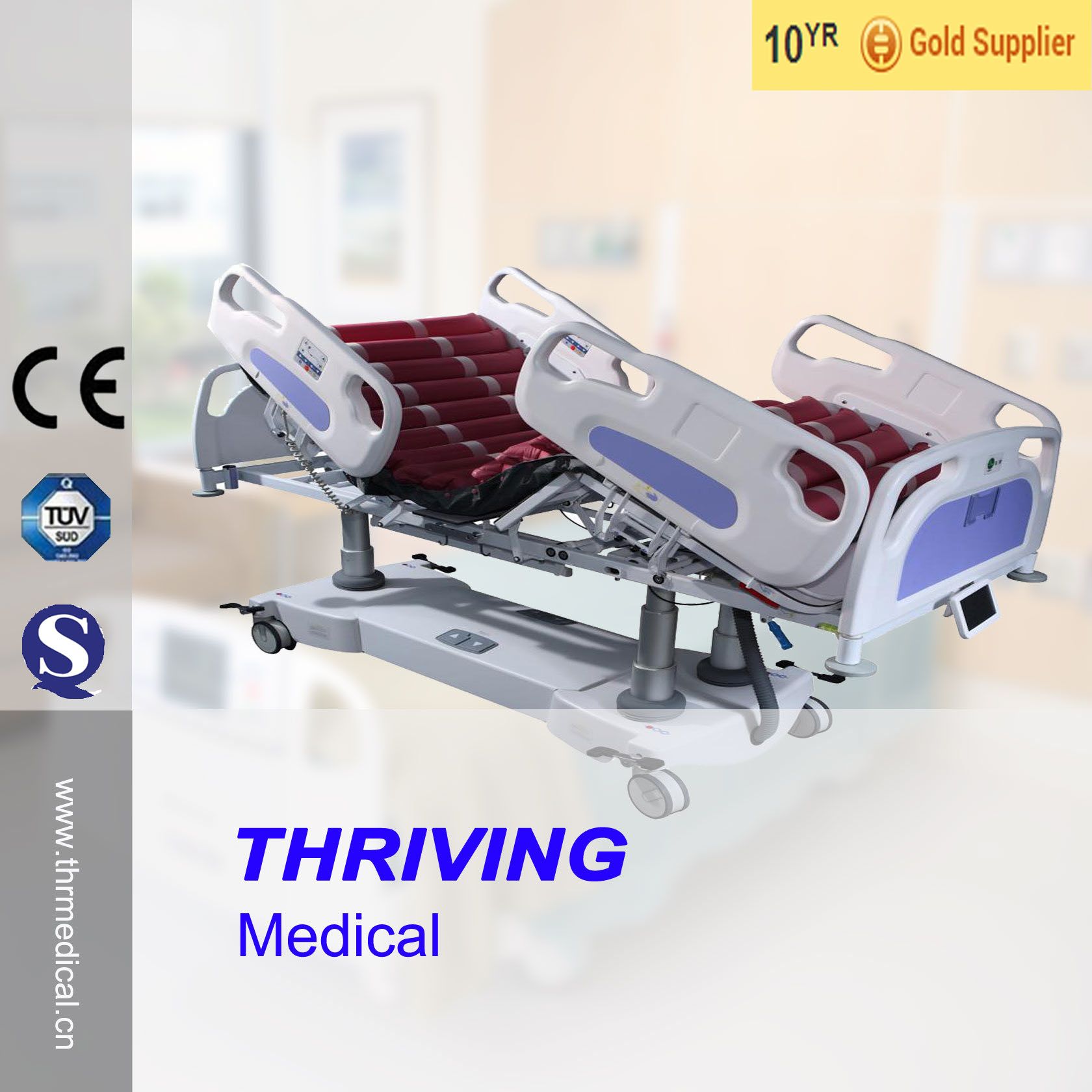

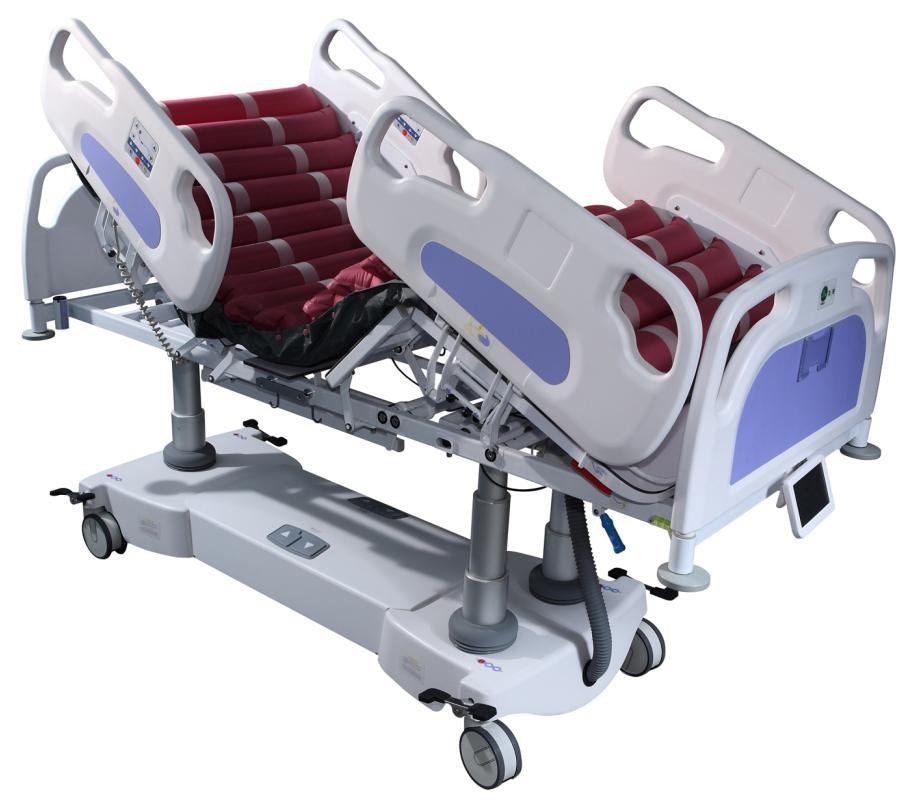

Professional ICU Electric 5-Function Hospital Bed

Prod Model:	THR-IC-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hospital Bed:	ICU Electric 5-Function Hospital Bed
Size:	2300*1080*510-910 Mm
CPR Function:	Available
X-ray Examination Board:	Available
Castors:	Dia 150 Mm Central Control
Weight Scale:	Available
Head And End Board:	ABS, End Board with Nurse Controller
Side Rails:	ABS with Insult Control Board
Motors:	Germay Dewert
Warranty Time:	5 Years for Motors, 1 Year for Parts
Type Of Hospital Bed:	Manual Bed
Folded:	Unfolded
Using Ambient:	Hospital
Material:	ABS

Product Description

Description

Innovationist of sickroom products:

TheTHR- IC-10 ICU bed with excellent multifunction and satisfactory appearance, has pallet position adjustment and precise scale system. The can be connected with wireless CCM system which can control the bed and monitor the beds condition. The bed greatly reduces the work strength of caregivers and improves the nursing quality to patients.

Multi-bed position:

Droved by the actuator of German Dewert, the bed can change the height of the pallet, the inclination angle of backrest segment and thighrest segment, and the angle of longitudinal and lateral tilt. Mean while IC-10 has preprogrammed CPR position, cardiac-chair, Fowler position, and shock position. It meets all the requirements from caregivers and patients.

Precise scale system:

Using Germany HBM sensor, the scale system reaches precision up to 50g. The absolute and differential weight can be measured continuously for adjusting the dosage of the drug and the volume of the transfusion.

Easy operation and clear LCD display:

THR-IC-10 has three controllers, touch screen(6 inch), siderail controllers and foot controllersoptional.

The main controller, touch screen can show the absolute weight, differential weight and medical record(should be with CCM system). Lockable Siderail controllers in both side of the backrest segment are available for patients in any positions. Foot controllers provide caregivers with simple operation of the bed while hands are not free.

X-ray examination:

X-ray translucent material of the pallet and X-cassette tray behind backrest segment make it easily to take X-ray picture of upper body without moving patient. Optional X-cassette tray below the pallet allows C arm to exam whole body.

Humanized Dual-Regress function:

When adjusting the backrest and thighrest segment, they simultaneously and smoothly slide apart. This effective design prevent the formation of pressure ulcers and avoid the wound split.

Easy movement

Adopting 150mm German TENTE medical castors and central brake system, the bed can bed moved smoothly in any direction or in a straight direction or be braked. Optional fifth castor makes it easy for the bed to turning around and entering and exiting lift.

Humanized functions:
With high volume battery, 50 basic operates available while power cut.
200mm bed pallet extension.
Removable head and foot board
Side rails can be folded under the pallet.
Each side of the pallet has 2 drainage hooks and holes in corners of the bed for drip bottle holder.
Bumpers in 4 corners of the bed
Fifth castor makes it easy for the bed to turning around and entering and exiting lift.
The level of water proof is IPX4. Disinfect and cleanout easily.

Trusty quality:
Yy0571-2005/IEC60601-2-38 1996 special safety requirements of medical electrical beds
GB9706.1-1995/IEC601-1-1998 safety requirements of electrical system for medical device
Certified by ISO9001: 2000 and ISO 13485: 2000.
CE mark.
