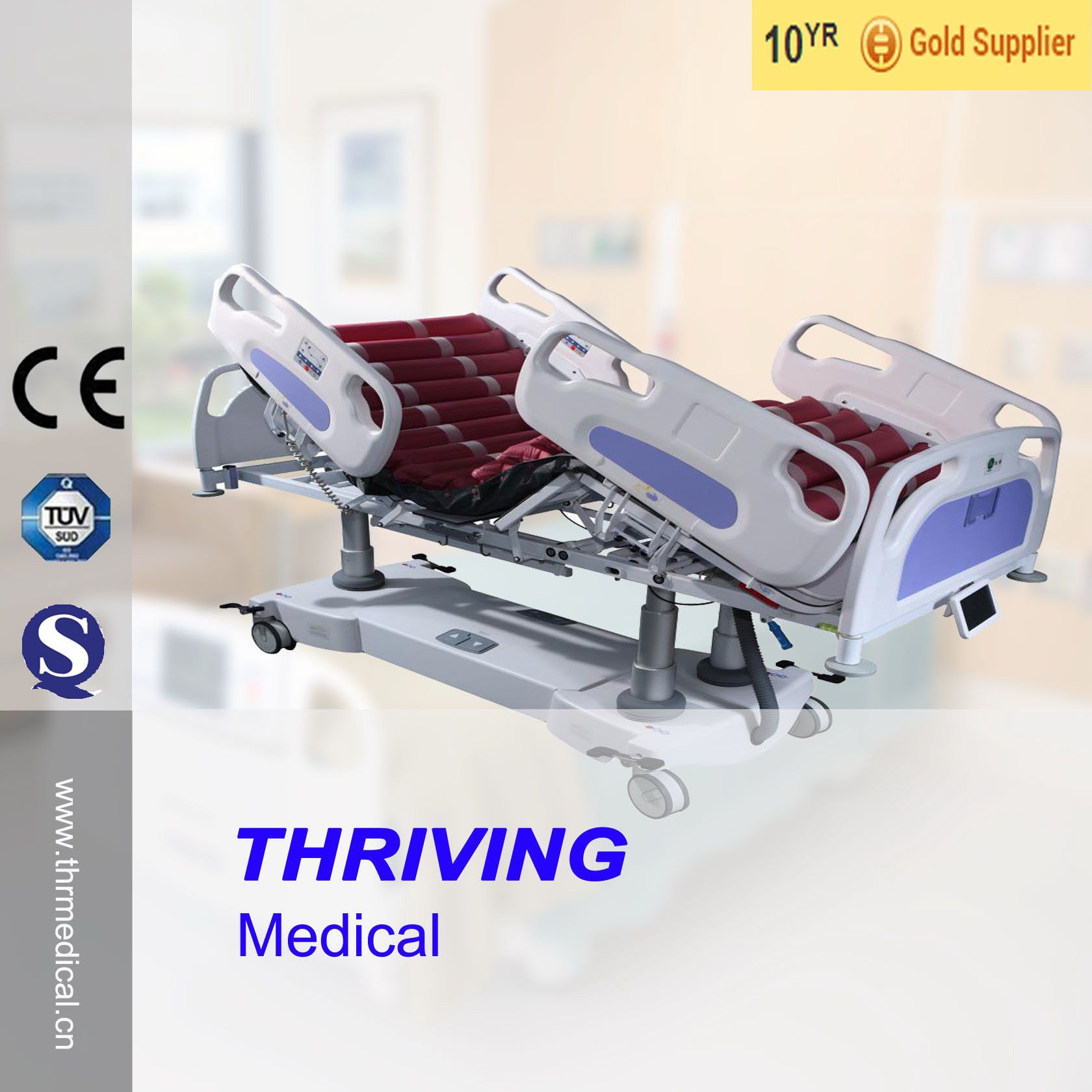

Professional Electric 5-Function Hospital ICU Bed

Prod Model:	THR-IC-05
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	LCD Display Screen
Material:	Metal
Type Of Hospital Bed:	Electric Bed
Folded:	Folded
Using Ambient:	Hospital
Numbers Of Function:	Five-function
Certification:	ISO13485

Product Description

Innovationist of sickroom products

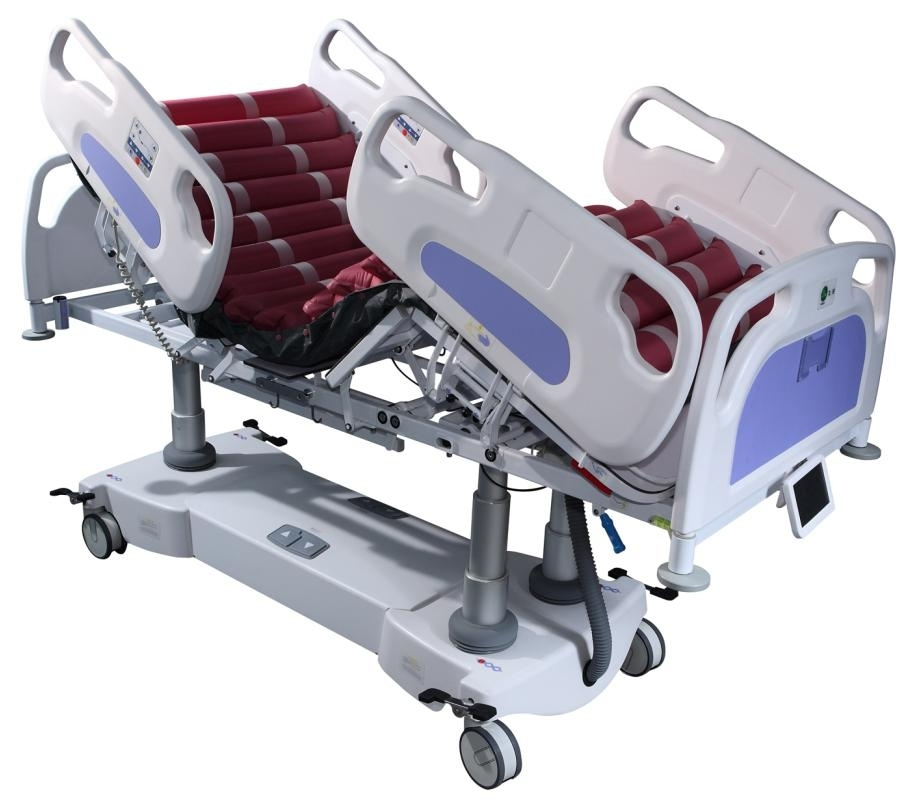

The THR-IC-05 ICU bed with excellent multifunction and high cost performance has pallet position adjustment and precise scale system. IC-05 can be connected with wireless CCM system which can control the bed and monitor the beds condition. The bed greatly reduces the work strength of caregivers and improves the nursing quality to patients.

Multi-bed position
Droved by the actuator of German Dewert, the bed can change the height of the pallet, the inclination angle of backrest segment and thighrest segment, and the angle of longitudinal and lateral tilt. Mean while IC-05 has preprogrammed CPR position, cardiac-chair, Fowler position, and shock position. It meets all the requirements from caregivers and patients.

Easy operation and clear LCD display
IC-05 has three controllers, touch screen(6 inch), siderail controller and foot controlleroptional.
The main controller, touch screen can show the absolute weight, differential weight and medical record(should be with CCM system). Lockable Siderail controllers in both side of the backrest segment are available for patients in any positions. Foot controllers provide caregivers with simple operation of the bed while hands are not free.

X-ray examination
X-ray translucent material of the pallet and X-cassette tray behind backrest segment make it easily to take X-ray picture of upper body without moving patient. Optional X-cassette tray below the pallet allows C arm to exam whole body.

Humanized Dual-Regress function
When adjusting the backrest and thighrest segment, they simultaneously and smoothly slide apart. This effective design prevents the formation of pressure ulcers and avoids the wound split.

Easy movement
Adopting 150mm German TENTE medical castors and central brake system, the bed can bed moved smoothly in any direction or in a straight direction or be braked. Optional fifth castor makes it easy for the bed to turning around and entering and exiting lift.

Humanized functions
With high volume battery, 50 basic operates available while power cut.
200mm bed pallet extension.
Removable head and foot board
Side rails can be folded under the pallet.
Each side of the pallet has 2 drainage hooks and holes in corners of the bed for drip bottle holder.
Bumpers in 4 corners of the bed
Fifth castor makes it easy for the bed to turning around and entering and exiting lift.
The level of water proof is IPX4. Disinfect and cleanout easily.

Trusty quality
Yy0571-2005/IEC60601-2-38 1996 special safety requirements of medical electrical beds
GB9706.1-1995/IEC601-1-1998 safety requirements of electrical system for medical device
Certified by ISO9001: 2000 and ISO 13485: 2000.
CE mark.
