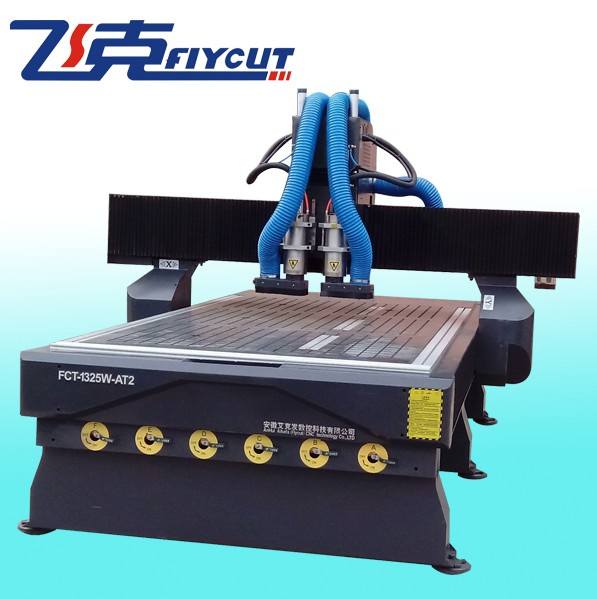

Professional CNC Auto Change Spindle Wood Router

Prod Model:	FCT-1325W-AT2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Fct-1325W-At2
Machine Size:	1600X2625 Mm
Flat Working Size:	1300X2500X200 Mm
Spindle Power:	5.5 Kw X 2
Spindle Rotation:	6000~24000 Rpm
Tool Diameter:	3.175,4,6,12.7
Xyz Rails:	Imported Square Rails
Mechincal Accuracy:	<0.03/300 Mm
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	SGS
Type:	CNC Cutting Machine
Spindle Number:	2

Product Description

Application:

Large quantity production for different materials, best choice for making wood door, antique reproduction furniture, furniture making, instruments making, arts and crafts, vacuum 3D led box, aluminum composite boards, model-bulding, etc.

Features:

1. This machine use more different tools for carving different designs on wood, no need to change tools manually, easy to operate machine and making programme.
2. The lathe is founded by industrial pipe welding, box- type structure to ensure high stability.
3. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
4. The major machine body makes the stability and no shacking in high speed.
5. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
6. The professional mechanical deisgn, scientific structure and generous appearance.
7. XYZ axis use abti-dust system, prevent dust during working, make sure long lifespan of spare parts.
8. High quality driver motors, spindle motors, cables, inverters, etc.
9. HIgh accuracy, high torsion and professional gear box without any gaps, ensure high engraving accuracy.
10. Professional CNC control system, can compatiable with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.



Special configuration:

Servo motor and driver, large models, imported spindles, etc.

Our service:

1. The machine comes with 1 year warranty;
When it exceed warranty period, if the machine's part need to be changed, we can sell to you at our cost price
2. Our technican could provide remote guide online if you need.
3. We are manufacturers specialized in CNC engraving and cutting machine, welcome to customize or distribute our machines.
4. If you have any questions or requirement, feel free to contact us, it's our honour to serve you.

Model	FCT-1325W-AT3			FCT-1325W-AT2
Table Size	1600 X 2625 mm
Working Size	1300 X 2500 mm
Spindle Power	No.1 5.5KW air cooling ,NO.2NO.3 3.7KW air cooling			NO.1&NO.2 spindle 5.5 KW water cooling
Z Axis structure	Independent Z axis ,3 air cylinders ,high accuracy ball screw
Spindle rotation	6000--24000rpm
Motor Driver	Stepper motor driver (Chinese servo motor and Japan servo motor is optional)
TOOL diameter	3.175, 4, 6, 12.7 mm
Machine structure	Industry square tube structure
Transmission	High accuracy gear rack
XYZ rails	Imported square rails
Mechanical accuracy	Less than 0.03/300mm
Engraving speed	12000 mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net  Weight	2000kg
