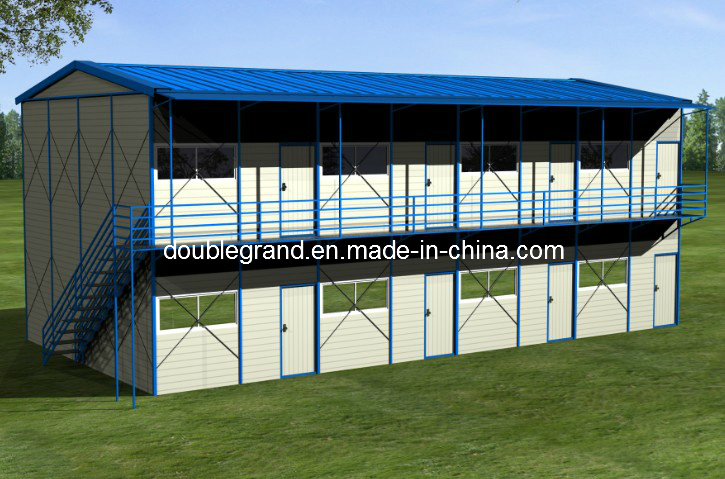

Prefabricated House with Light Steel Frame (new model)

Prefabricated House with Light Steel Frame (new model)
Price: US $ 30-100/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 200/Square Meter
Pay Type: L/C,T/T
Prod Model: DG4-052
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Roof: Sanwich Panel, EPS, PU, Rock Wool, Glass Wool
Wall: Sanwich Panel, EPS, PU, Rock Wool, Glass Wool
Insulation Thickness: 50-150mm
Connection: Screws, Bolts
Door: Sanwich Door, PVC Door
Window: Window, Aluminum Alloy Sliding Window
Hydroelectric System: Hydroelectric Plan
Surface: Hot DIP Galvanized or Painted
Floor: PVC Floor, Plywood Floor
Material: Steel Structure
Usage: Temporary Offices
Certification: BV
Customized: Customized

Product Description

Prefabricated House Temporary Office/Dornitory

1. General technical description for standard prefabricated house
Technical Parameter:
Technical Parameter of standard prefabricated house:
(1). Wind resistance: Grade 11(wind speed≤ 120km/h)
(2). Earthquake resistance: Grade 7
(3). Live load capacity of roofing: 0.6kn/m2
(4). External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
(5). Second Floor Load Capacity: 150 kg/m2
(6). Live load of corridor is 2.0kn/ m2
(7). Wall permitted loading: 0.6KN/ m2
(8). Ceiling Permitted live loading: 0.5 KN/m2
(9). Wall Coefficient of thermal conductivity: K=0.442W/m2k
(10). Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

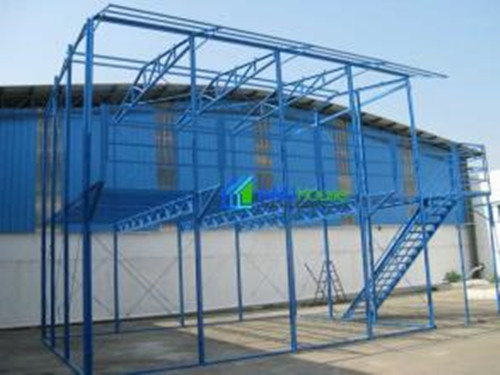

Steel framework

Main column: Fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel Surface working: Alkyd painting, two primary and two surface.

Main triangle Beam: Fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.

Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,

Surface working: Galvanized

Floor
Ground floor will be the concrete foundation with Ceramic tiles or PVC floor leather.
First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor

Ceiling
6mm Gypsum board for dry room
12mm PVC ceiling for wet room

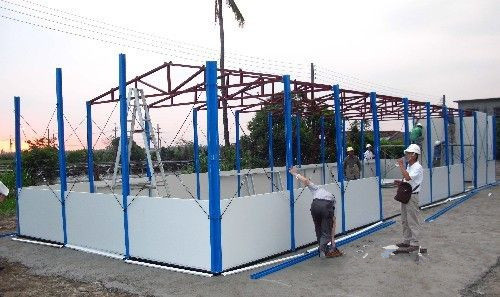

Walls
Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-1200mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3

Door
External door: Insulated with opening dimension 950*2100mm, furnished with lock, with 3 keys.
Inner door: Insulated steel door.

Windows
Window material: PVC window with fly screen, 4mm glass.

Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
Double tube fluorescent lamp, 220V, 50-60Hz
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings
(1). Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(2). Sanitary ware:
Western Close tool: Ceramic, with pipes and installation fittings
Urinal: Ceramic, with pipes and installation fittings
Wash basin: Ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

Temporary building Characteristics:
(1). Environment protective, no garbage caused
(2). Doors, windows and interior partitions can be flexibly fixed
(3). Beautiful appearance, different colors for the wall and roof.
(4). Cost saving and transportation convenient
(5). Anti-rust and normally more than 15 years using life
(6). Safe and stable, can stand 8 grade earthquake.

2. Our Services:
(1). Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
(2). Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
(3). Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Detailed description of Prefabricated Canbin House
DimensionLengthcustomer designed
Widthcustomer designed
Heightcustomer designed
Weather conditionWind speedm/s or km/h
Snow loadkg/m2
Earthquakedegree
Life span              25-50 years
Building bodySteel FrameQ235, panited or HDG
Bracing Angle brace, Welded Pipe
Wall & Roof claddingSingle color corrugated steel sheet
EPS, Glass wool, Rockwool, PU, etc sandwich panel
Steel sheet THK. :0.3-0.7mm
Heat Insulation THK.:50-150mm
 DoorSandwich door; PVC door
 WindowPVC sliding window;Aluminum alloy sliding window
SurfacePanited surfaceAntirust paint,total thickness: 100-120um; Warranty period: 18-20 years
Hot dip galvanized surface65,86um; Warranty period: 45-50 years
AccessoriesHydroelectric systemHydroelectric plan
Ventilation systemProviding design
FloorPVC floor; Plywood floor
Heating systemProviding design
Delivery time20-25days
ShipmentSteel frame packed in 40OT, maintenance packed in 40HQ or 40GP
Qingdao DoubleGrand Metal Products Co. Ltd specialized in various of steel structure building, jointly design, manufacture, export and erection of Industrial, Commercial and residential and Agriculture uses. We exported to more than 30 countries on 6 continents with well-established experience for more than 10 years.

SERVICE
Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture, deliver to installation and after-service.

We can manufacture strictly according to your drawings and request.
We can design ourself to supply you a most suitable proposal to you.

QUALITY
Raw material reserves: Steel bought from major steel mill
Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC continuous mode of production lines etc
Strictly quality control: Manufacture strictly according to drawings, Inspection every link, Pre assembled before delivery.

DESIGN & DELIVERY & PACKING
Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.

With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.

Packed in container by sea or by train, with stable package for no damage during transpotation.

CERTIFICATE

We have ISO9001: 2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.
