| Prod Model: |
DG4-052 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Roof: |
Sanwich Panel, EPS, PU, Rock Wool, Glass Wool |
| Wall: |
Sanwich Panel, EPS, PU, Rock Wool, Glass Wool |
| Insulation Thickness: |
50-150mm |
| Surface: |
Hot DIP Galvanized or Painted |
| Connection: |
Screws, Bolts |
| Door: |
Sanwich Door, PVC Door |
| Window: |
PVC Sliding Window, Aluminum Alloy Sliding Window |
| Hydroelectric System: |
Hydroelectric Plan |
| Floor: |
PVC Floor, Plywood Floor |
| Material: |
Steel Structure |
| Usage: |
Temporary Offices |
| Certification: |
BV |
| Customized: |
Customized |
Product Description
Regarding details, please check as follows:
Usage:
Homes, Residence, Accommodation, Hostel, Office, Reception house, Rest-room, Show-room, Public-accommodation, Place of recreation and so on.
House Size:
1) Length is free as client's requirement
2) Width: Less than 12m (no middle post), more than 12m (add post in the middle)
3) Height: Single floor≤ 5m, two or three floors, average height ≤ 4m.

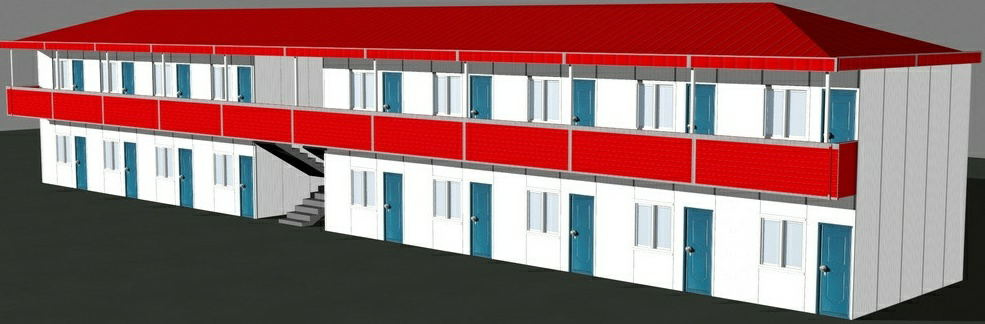

4) Floors: Ground+2 floors.
5) Roof pitch: Slope is 1: 10~1: 5
Design technical data:
1) Wind load: 0.6KN/sqm
2) Roof dead load: 0.3KN/sqm
3) Roof live load: 0.5KN/sqm
4) Floor dead load: 0.5KN/sqm
5) Floor live load: 2KN/sqm
4) Earthquake intensity: 8 grade
5) Location temperatures: -25º C to 50º C
House Body-bearing system:
1) Beam: Light gauge steel welding A-frame beam with paint.
2) Purline: Wall and roof purline, C type steel with paint
3) Square post: Square steel with paint, different house span and different weather condition with different section.
4) Ground channel: U type, galvanized, thick is 0.8mm
5) Hardware: All steel structure components are jointed with bolts.
House Body-maintenance system:
1) Wall panel: Color steel sandwich panel, the insulation could be EPS, glass wool, rock wool, or PU. Standard thickness: 50mm, 75mm, 100mm.
2) Roof panel: Color steel corrugated sandwich panel, the insulation could be EPS, glass wool, rock wool, or PU. Standard thickness: 50mm, 75mm, 100mm.
3) Decoration: Outside PVC or metal cladding panel, inside gypsum board with keel.
3) Door: Entrance door could be steel security door or aluminum door, interior doors could be steel frame sandwich panel door or compound wooden door.
4) Window: PVC or aluminum alloy window with screen, sliding or casement type.
5) Compression decorative parts: 0.4mm thick color steel sheet
Other option items (accessories):
1) Ceiling: PVC or aluminum ceiling for wet rooms, mineral wool ceiling board for other office, living room and other dry area.
2) Flooring: Ground tiles, PVC flooring, compound wooden floor or carpet of options.
3) Plumbing system: Indoor water supply and drainage pipes, couplings, elbows, tees etc., Chinese standard.
4) Wiring (High voltage) system: Indoor wires, sockets, switches, lamps, wire channels, distribution box, etc., Chinese standard.
5) Sanitary appliance: Wash basin, shower, toilet, bathtub as client's requirements.
6) Furniture: Kitchen cupboard, sofa, office table, desk, chair, bed, wardrobe, etc. As client's requirements.

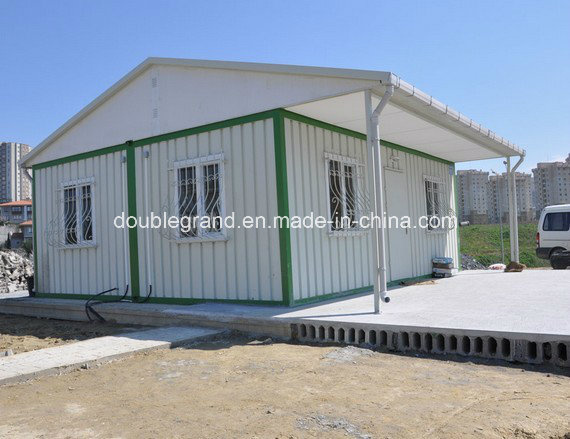

| Quick installation prefabricated house model customized type A house |
| Dimension | Length | Customized |
| Width | less than 12m |
| Height | Between 3m to 3.5m |
| House body | Steel structure | Hot dip galvanized or Painted steel structure, Q195-Q235 |
| Wall panel | 50mm-150mm sandwich panel |
| Roof panel | 50mm-150mm sandwich panel |
| Outside door | Security door, Sandwich door or Alumninum door |
| Inside door | Sandwich door |
| Window | PVC sliding window |
| Heat Insulation | EPS or Rock wool or PU |
| Accessories | Electricity system | Providing design |
| Water supply and Drainage | Providing design |
| Floor | Ceramic Tiles, PVC floor |
| Ceiling | Mineral wool acoustic board, Calcium silicate board, PVC board |
| Installation | | Ten skilled workers can install 1000m2 house in 15days with instruction of our supervisor |
| Shipment | | One 40HQ container can load about 160m2 |
| Wind load | | 0.5KN/m2 |
| Seismic density | | 7Degree |
| Life span | | 10 to 15 years |
Qingdao DoubleGrand Metal Products Co. Ltd specialized in various of steel structure building, jointly design, manufacture, export and erection of Industrial, Commercial and residential and Agriculture uses. We exported to more than 30 countries on 6 continents with well-established experience for more than 10 years.
SERVICE
Our goal is not only to provide high quality steel structure building, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand. One stop service from design, manufacture, deliver to installation and after-service.
We can manufacture strictly according to your drawings and request.
We can design ourself to supply you a most suitable proposal to you.
QUALITY
Raw material reserves: Steel bought from major steel mill
Full and advanced equipment: CNC laser cutting machine, vertical machining centers, CNC bending machines, Nc drilling machine CNC continuous mode of production lines etc
Strictly quality control: Manufacture strictly according to drawings, Inspection every link, Pre assembled before delivery.
DESIGN & DELIVERY & PACKING
Sales and engineer joint into an strong group, absorb your request and ideal image, give your reasonable and suitable suggestion, supply best design and expected building model, quotation, and design for you.
With more than 3000tons capacity each month, Quotation+Manufacture time + deliver time+installation time will better than local manufacturer.
Packed in container by sea or by train, with stable package for no damage during transpotation.
CERTIFICATE
We have ISO9001: 2008 certificate, Aisa Inspection, SGS Inspection and other third party Inspection acception.
