| Price: | US $ 700-1250/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | SW-TFG-18 |
|---|---|
| Place Of Origin: | Zhejiang, China (Mainland) |
| Brand Name: | Sugold |
| Model Number: | Sw-Tfg-18 |
| After-Sales Service Provided: | No Overseas Service Provided |
| Width: | 1.5m |
| Machine Type: | Fume Hood |
| General Use: | Commercial Furniture |
| Cerification: | ISO 9001 |
| Size: | 1800*760*1950mm |

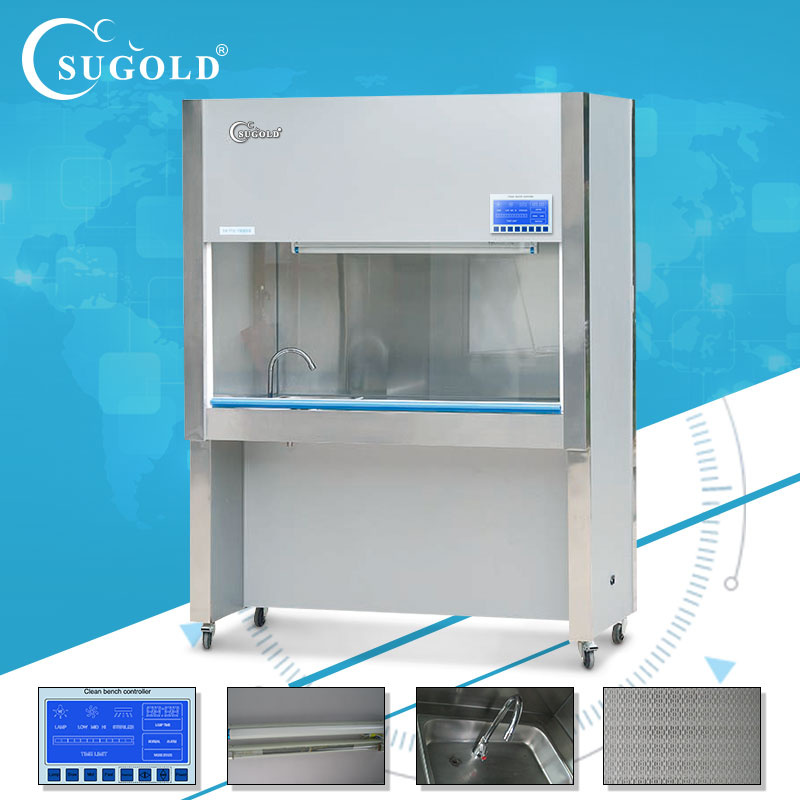

| Product Name: | Tubeless Fume Hood |
| Type: | Fume Hood |
Setting Information | |
process | |
rated voltage | 220V |
material | Plate steel |
light color | Blue/white |
installation | Yes |
temperature | 10-35 |
Hole diameter | 25MM |
The PP anticorrosive centrifugal fan
Water sink and the tap
Model Name | Laboratory steel fume hood gas extractor |
Upper Part | Using 1.0mm thick cold rolled steel, made through cutting, bending, welding, stamping and grinding, with surface treatment of acid washing, phosphating and epoxy electrostatic powder coating, impact test qualified, lined with 5mm thick compact panel, providing three-stage exhaust design, control panel is located on the side plate for convenient observation and operation. |
Lower Part | Using 1.0mm thick cold rolled steel with Epoxy powder coating, with embedded aluminum alloy handle and 316L stainless steel hinge (opening maximum at 145°), providing adjustable feet which consist of stainless steel screw, nylon cover and rubber material, with anti-skidding, shock absorbing, chemical resistant, corrosion resistant and strong bearing abilities. |
Size | 1200*850*2350 , 1500*850*2350*, 1800*850*2350 (optional) |
Viewable Window | Using :≥5mm anti-explosion toughened glass, available to stop at any height of the rain slider, the main window can slide around |
Top | solid physiochemical board/ Epoxy Resin board/ thickness 13/16/19mm/ catcher 26mm (optional) |
Accessories | see more |
Socket | anti-dust, splash proof safety socket with automatic closing lid, size of 60×60mm, 10A/16A /220V |
Light | round energy saving light hidden in top ceiling, not directly contact with the air in the fume hood, easy to be replaced |
Control Panel | multi-function socket, lighting , fan and fan valve control |
Sink | using imported PP material , chemical resistant , corrosion resistant and organic resistant |
Tap | using copper material with high gloss epoxy powder spayed surface, acid and alkali resistant, corrosion resistant, providing single/double/triple outlet types for choice, with detachable nozzle and ergonomic PP handle |
Sewer System | using high-density imported PP trap, corrosion resistant, chemical resistant and organic resistant, with filtering and smelly odor blocking function |
Specific Standards | |
Available Opening Height | 0-800 mm |
Face Velocity | 0.4-0.6m/s |
Noise | <60db |
Airflow Speed | 1080-1700m3/h |
Electricity | AC220V-380V/0.09-4kw |
1. Professional manufactor,fine workmanship
2. Good quality and competitive price
3. Fast delivery,good service
4. Accept OEM orders
5. 100% original raw material
6. All products approved by ISO9001, ISO14001
1.Directly manufacturing factory with competitive price and quality control,we check all material when we start to bulk product productions
2.Professional advice to help you purchase the products you wanted
3.Professional export service team servers in the deal
4.Customization service is available ,OEM business is appreciated
5.We will inspect and test all products material carefully to ensure no damage and lost
6.The success of our cooperation can be guaranteed for our company is a credible and honest partner.
1. Contact by e-mail or trade manager for specified items
2. Contract signed ,40% deposit in advance
3.Bulk productions
4.Balance payment before shipment .
5.Shipping send original documents or tele-release goods
6.Quality warranty for 2 years after shipment .
We always have stocks if your quantity below 10 pcs.f there is any stocks,we will inform you with details in the reply of your require.
This is depends on the size of your shipment and the method of shipping .When inquire about the shipping charges , we hope that you let us know the detailed information such as the codes and the quantity .Your favorable method of shipping .( by sea or by air ) and your designated port or air port .We will be gradeful if you can spare us some minutes to help us since it will enable us to evaluate the cost based on the information provided .
Sure ,We are a manufacturer of lab furniture in SHAOXING ,China .Please contact us in advance and will make an appointment with you .
Of course ,pls provice you pictures of your brand or your company details and then give the authourization to our factory.
A: Yes, we offer 2 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Welcome to visit our factory in SHAOXING ,ZHEJIANG
We invite reginal agents in the world sincerely accoring ot our advantage price and good service!!
Main products:
Laminar flow cabinet/Clean bench
Biosafety cabinet
Fume hood
Air shower
Weighing booth/Dispensing booth
Pass box
Static & Dynamic UV air disinfector
Incubator
Pressure Steam sterilizer autoclaves
Muffle furnace
Drying oven
Water distiller& Water bath
Particle counter
