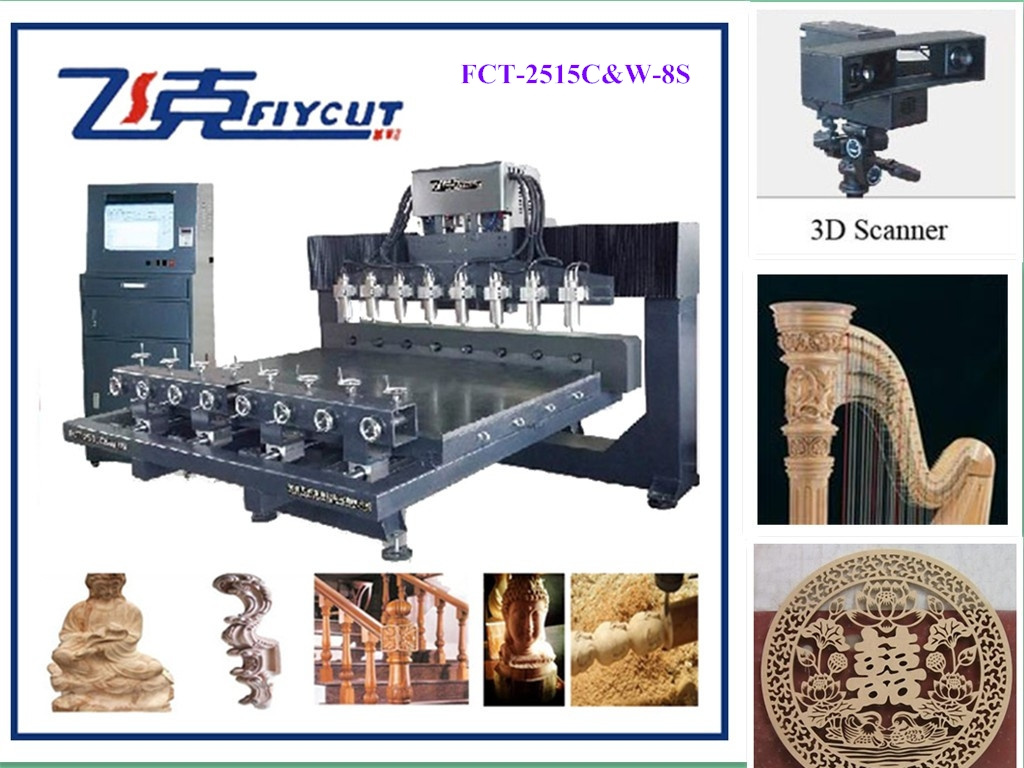

Powerful CNC Machine with High Accuracy and Stability

Prod Model:	FCT-2515C&W-8S
Markets:	North America,Southeast Asia,Mid East
Type:	Engraving Router
Spindle Layout:	Horizontal
Feed Mode:	Mechanical
Controlling Mode:	CNC
Customized:	Customized
Condition:	New
Color:	Iron Grey
Spindle Number:	8 Spindles

Product Description

Trademark:Flycut
Prodcut name:CNC flat-rotary engraver
Model No:FCT-2515C&W-8S

Application:
Rotary engraving: Making relief on cylinder items, stair rail, handrail, desk or chair legs, tea-tray, the human body, avatar, buddha statue, etc.
Flat engraving: Antique reproduction furniture, Solid wood carving, arts and crafts carving, ornamental engraving, furniture-processing, instrument making, etc.

Special Configuration:
Customized model machine, imported spindle, servo motors .oil lubrication system, 6-12 spindle heads, etc.


Features:
1.       The lathe is founded by industrial pipe weilding, box-type structure to ensure the high stability.
2.       The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3.       The major machine body makes the stability and no shacking in high speed.
4.       XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5.       The professional mechnical design, scientific structure and generous appearance.
6.       XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7.       High quality driver motors, spindle motors, cables, inverters, etc.
8.       High Accuracy, High Torsion and Professional Gear Box without any gaps, ensuure high engraving accuracy.
9.       Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.


Model	FCT-7090C&W-4S	FCT-1618C&W-4S	FCT-1625C&W-4S	FCT-2515C&W-8S
Rotary diameter	230	230	230	250
Rotary length	800mm	1300mm	2000mm	1500mm
Flat working size	700×900×200mm	1600×1800×200mm	1600×2500×200mm	2150×1500×200mm
Spindle power	Water cooling 1500W×4	Water cooling 1500W×4	Water cooling 2200W×4	Water cooling 2200W×8
Spindle rotate	6000--2400rpm
Motor driver	Chinese servo motor and Japan servo motor is optional
Tool diameter	3.175,4,6mm			3.175,6,12.7mm
Machine structure	Industry square tube structure			industry square structure,table moving
Transmission	XY ball screw, Y high accuracy gear rack			XYZ TBI ball screw
XYZ rails	PMI square rails
Dust-proof system	XYZ high quality dust cover
Mechanical accuracy	<0.03/300mm
Engraveing speed	8000mm/min			10000mm/min
Data transmission	PC-connection directly
Support format	G code or HPGL
Working voltage	AC220V/50Hz or 380V/50Hz
Net weight	600kg	100kg	1200kg	3500kg

If you are not sure which machine you should choose,kindly afford the following information.Suitable machine will be recommend to you.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials (Length*Width*Thickness)?
