Price: | US $ 18-260/Piece |
---|---|
Min Order: | 50/Piece |
Pay Type: | L/C,T/T,Western Union |

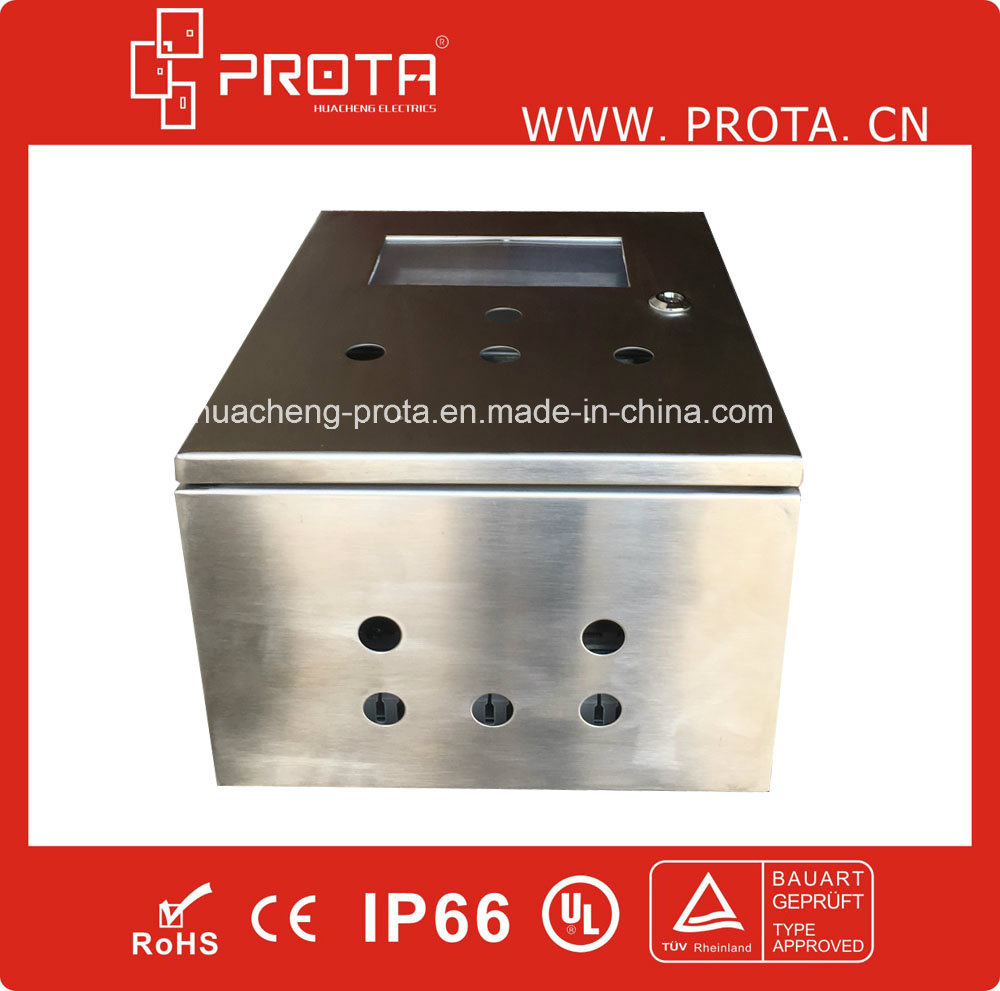

Material: | Cold Rolling Steel, 304AISI/316L Stainless Steel |
---|---|
Surface Finish: | Textured Powder-Coated |
Color: | Ral7032/Ral7035/Customize |
Thickness: | 1.2mm&1.5mm |
Lock: | Plastic Lock/Metal Lock |
Type: | Distribution Metering Box |
Structure: | Protection |
Application Range: | Electrical Distribution |
Shell Protection Grade: | IP66 |
Standard Configuration
1,Standard configuration: mounting plate, locking system, galvanized mounting plate, gland plate, sealing gasket and fixing accessories.
2,Material and thickness: cold-rolled sheet steel
Door: 1.2mm or 1.5mm
Body: 1.5mm or 2.0mm
Mounting plate: 1.5mm or 2.0mm
When the enclosure is less than 800mm high, body and door is 1.2mm THK, mounting plate is 1.5mm THK; if over 800mm high, body and door is 1.5mm THK, mounting plate is 2.0mm THK.
3,Surface: epoxy thermosetting powder coating, textured finish
4,Color: RAL 7032, RAL 7035
5,protection degree: IP 66
Craftsmanship Feature

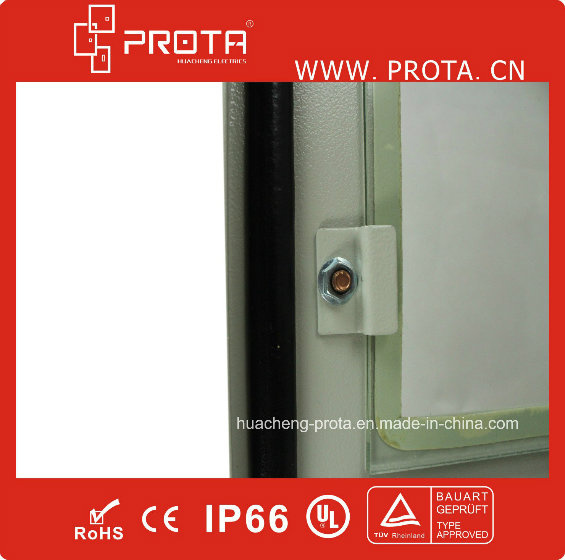

1,There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2,The foam PU sealing gasket inside the door.

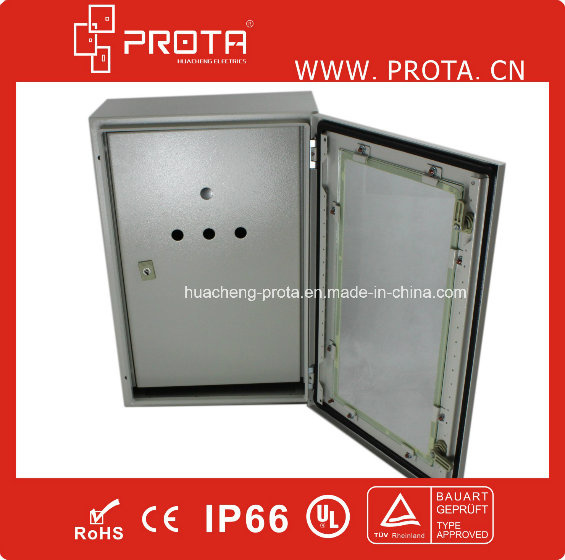

3,The door can be opened 130°by the plugging hinges
4,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6,The door can be switched by both left and right side.
Selection Table
Model No. | H(mm) | W(mm) | D(mm) |
PTIP2215 | 200 | 200 | 150 |
PTIP3215 | 300 | 200 | 150 |
PTIP3315 | 300 | 300 | 150 |
PTIP4315 | 400 | 300 | 100 |
PTIP5315 | 500 | 300 | 150 |
PTIP5415 | 500 | 400 | 150 |
PTIP6415 | 600 | 400 | 150 |
PTIP6515 | 600 | 500 | 150 |
PTIP32520 | 300 | 250 | 200 |
PTIP3320 | 300 | 300 | 200 |
PTIP4420 | 400 | 400 | 200 |
PTIP5520 | 500 | 500 | 200 |
PTIP6620 | 600 | 600 | 200 |
PTIP7620 | 700 | 600 | 200 |
PTIP8620 | 800 | 600 | 200 |
PTIP8820 | 800 | 800 | 200 |
PTIP32525 | 300 | 250 | 250 |
PTIP4325 | 400 | 300 | 250 |
PTIP5325 | 500 | 300 | 250 |
PTIP5425 | 500 | 400 | 250 |
PTIP6425 | 600 | 400 | 250 |
PTIP7525 | 700 | 500 | 250 |
PTIP8625 | 800 | 600 | 250 |
PTIP9625 | 900 | 600 | 250 |
PTIP10825 | 1000 | 800 | 250 |
PTIP4330 | 400 | 300 | 300 |
PTIP5530 | 500 | 500 | 300 |
PTIP6430 | 600 | 400 | 300 |
PTIP7630 | 700 | 600 | 300 |
PTIP8630 | 800 | 600 | 300 |
PTIP9630 | 900 | 600 | 300 |
