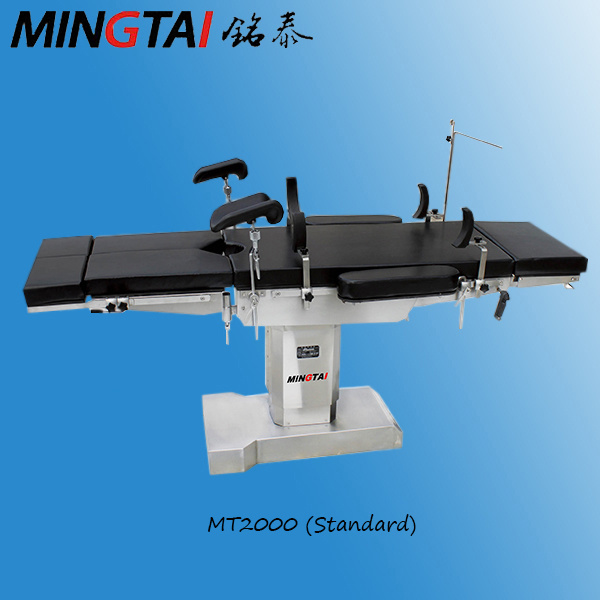

| Prod Model: |
MT2000 |
| Length: |
2000mm;50mm |
| Width: |
555mm |
| Lowest And Highest Table Height: |
(750-1000)mm; 50mm |
| Forward/Backward Lean: |
32degree |
| Left/Right Lean: |
22degree |
| Head Board Up/Down: |
90degree |
| Motor Brand: |
"Linak" Brand |
| Type: |
Operating Table |
| Certification: |
CE |
Product Description
Technical parameters
| Length | 2000mm±50mm |
| Width | 555mm |
| Lowest and highest table height | (750-1000) ± 50mm |
| Lowest table height(optional) | 600mm |
| Table lifting height | (200-450)mm |
| Forward/Backward tilt | ≥32° |
| Left/right tilt | ≥22° |
| Head board up/down | ≥90° |
| Waist bridge elevator | ≥130mm |
| Leg board down | ≥90° |
| Leg board evagination | ≥90° |
| Back board | Up: ≥80°, down: ≥40° |
| Power | AC 220V 50Hz |
| Input power | 500VA |
Unique advantage
Multi-function 5 electro-motor surgical table
Imported LINAK linear motor from Denmark
Table body is SUS 304 stainless steel from Korea
Superior wide of operating table: 555mm
Taiwan high precision linear translation guide
Overall memory sponge + SBR material mattress
Double motors rise bakc board, double control system, "T" shape base
Electric braking (optional), electric kidney bridge (optional)
Main feature:
1. Electric motor driving system: imported the Danish LINAK brand motor, low noise, smooth table motion. Lifting and rising, forward and backward, left ward and rightward and the back plane are all controlled by system, manual head plate and leg plate, easy and convenient for operate
2. 5 groups electric motor work, 2 of them rise the flanks back board. High performance charged battery can work ≥50 times to make sure the operation table can work without power source. The charged battery doesn't need maintenance; you can use it for long time. AC power source support power, guarantee the largest safety.
3. The whole bed is made of high quality SUS304# stainless steel, super thick≥4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation
4. Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. 5 sections board design: head board, back board, built-in kidney elevator and leg board
5. Square lifting column is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable
6. Patented brake system, when lock the foot brake system, operating table will not move anymore.
7. The operating table performance is good, full-featured, handsome in appearance, easy to operate. Head board with hoop-type adjustment device, can be folded up and down 90 ° and any positioning lock. Leg plate can be demolished, abduction and removable, adjusting very convenient, convenient urinary surgery.
8. Operation table base has fix or movement function, flexible movement and stable fix, different function accessories can be provided for different surgery needed
