| Prod Model: |
MT2100 |
| Length: |
2000mm±50mm |
| Width: |
550mm |
| Forward And Backward Tilt: |
≥32° |
| Left/Right Tilt: |
≥25° |
| Head Board Up/Down: |
≥90° |
| Back Board Up: |
≥90° |
| Leg Board Down/ Evagination: |
≥90° |
| Waist Bridge Up: |
≥130mm (Optional Electric Kidney Bridge) |
| Type: |
Operating Table |
| Certification: |
ISO9001 |
| Kind: |
Multifunction |
Product Description

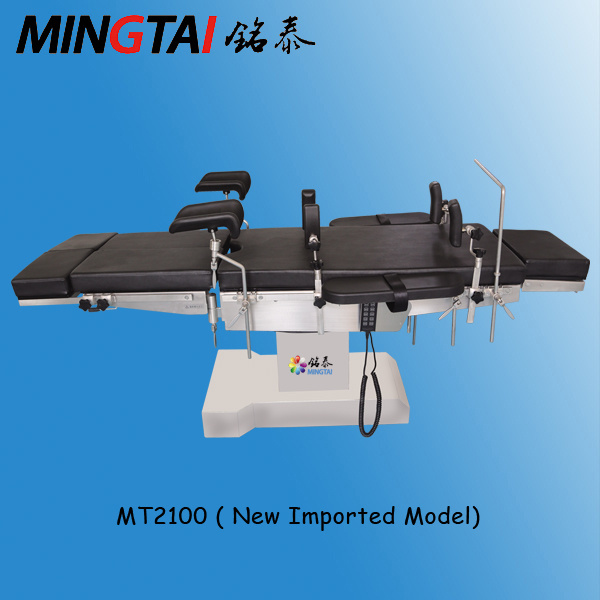

Patient Hospital 6 Group Motors Orthopedic Comprehensive operating table
1. 6-electric-motor comprehensive orthopedic Comprehensive operating table
2. Korean POSCO brand SUS304# Stainless steel section bar
3. Imported Taiwan high precision straight line translation guide rail
4. 555mm ultra-wide table width
5. 2 motors raise the back board, double controlling pattern, "T" shaped base design
6. All-in-one memory sponge + SBR material mattress
7. Electric waist bridge (optional), electric braking (optional)Technical parameters: | Length | 2000mm ± 50mm |
| Width | 555mm |
| Chinese standard lowest and highest height | (750-1000) ± 50mm |
| Optional table width | 480-600mm |
| Optional table height of lifting up and down | 200-450mm |
| Optional lowest height | 600mm |
| Forward/backward tilt | ≥28°, ≥18° |
| Left/right tilt | ≥18° |
| Head board up | ≥90° |
| Head board down | ≥90° |
| Waist bridge lift up | ≥130mm |
| Leg board down | ≥90° |
| Leg leg evagination | ≥90° |
| Back board up | ≥80° |
| Power | AC220V 50Hz |
| Input power | 500VA |
Main Feature
1. Electric motor driving system: Imported Danish LINAK brand motor is chosen. The noise of the whole table body is low and the motion of table top is smooth and steady. The raising up/down, translational motion, forward/backward tilt, left/right tilt of table top and back board movement are all controlled by operation system. The head boards and leg boards are operated by hand and the manual operation is relaxed and convenient.
2. Six groups of electric motors, two of them located in both flanks raise back board up and down. The stress acted on the back board is well-distributed and the reasonable design can improve the lifespan of the whole operating table body. 3.The whole table body is made of high quality SUS304# stainless steel super thickness≥4mm (stainless steel shield cover is not included). The whole surgery table body, cover and accessories are all made of high-quality nickel chromium alloy stainless steel shield cover. It can be guaranteed that the table will not rust over 15 years and can fully meet disinfection requirement after operation.

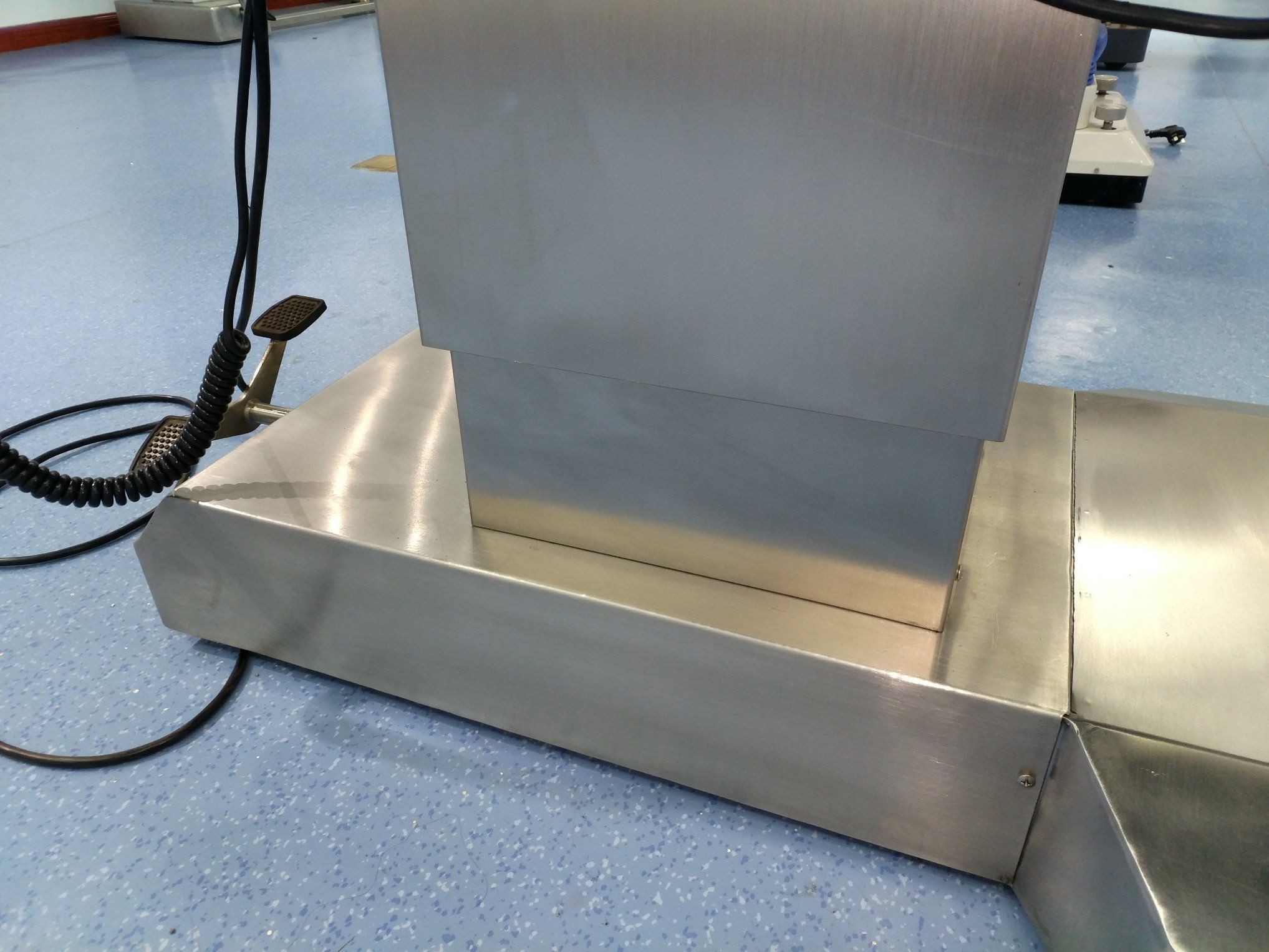

4. "T" shape base design supply excellent shock resistance and stability, easy for clear and disinfection. 6 sections board design: head board, back board, built-in kidney elevator, hip board and leg board. FLEX and RE-FLEX positions and angles of back board and seat board can be formed after considering the physiological curvature of patients. It can fulfill needs for operation of different parts
5.Stability: Adopt the patented design of three lifting columncraftsmanship. Key column section: It has 4 times safety factor for load capacity and apply square lifting colum, 8 fasteners for fixation and double square frame style movable joints to ensure
stable bearing ability of column.
6. Braking system: Braking device with patent design for operating table. The operating table position will not vary after stepping on the pedal for locking to ensure stability and safety of tabletop during operation.7.Mattress: Memory spong and SBR material mattress with 70mm thickness can relieve patients' pressure point and prevent bedsore occurring after operation. The material of mattressl meet the safety standard. The surface is antibacterial and easy to clean which can meet the disinfection requirements of operating room.
8.Safe side rail function: It can prevent the injury of slipping due to careless movement of attachments.
9.Horizontal movement: Taiwan high precision imported straight line guide rail. The movement distance of longitudinal shift can be over 300mm. There are not any obscured article in the middle of the table body. X-ray perspectivity of the whole body can be realized without need of moving patients.
