Outdoor and Indoor Concert Portable Adjustable Aluminum Plywood Stage

Prod Model:	ZC008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1.22*1.22m, 1.22*2.44m and Can Be Customized
Frame Material:	Aluminum Alloy 6061-T6/Aluminum Alloy 6082-T6
Topping Material:	Plywood
Main Tube:	50mm*3mm
Thickness Of Table Board:	18mm
Advantages:	Flexible, Movable, Protable, Light

Product Description

Adjustable aluminum stage
Size: 1.22m*1.22 m and 1.22m*2.44m
Height. Adjustable from 0.8 m to 1.2 m
Topping materials: Carpet/ plywood/glass
The size can be customized according to your need
Any enquiry. Feel free to contact me on MSN or Skype.

Plywood aluminum stage:
Size: 1.22m*1.22m, 1.22m*2.44m
Stage board material: Plywood.
Stage board thickness: 18mm
Stage board color: red, black, blown
Stage frame material: Aluminum alloy 6061-T6 /6082-T6

Stage frame color: Silvery
Advantage: Waterproof and skid resistance. Easy to install and dismantle.
Adjustable:0.6m to 1.0m and 0.8m to 1.2m.It can be customized according to your request.


Plexiglass stage:
Size: 1.22m*1.22m
Stage board material: Plexiglas's
Stage board thickness: 18mm
Stage frame material: Aluminum alloy 6061-T6 /6082-T6
Stage frame color: Silvery
Normal high: It is generally fixed height for 0.4m and 0.6m, it also can be customized according to your request.

Advantage:  Simple structure, suitable for fixed installation, it can be open outfit storing and transportation, save the costs.
Using the most flow structure and appearance, suitable materials elegant, durable, waterproof.
The stage board can be appropriate for color lighting and LED screen, it could changes in all sorts of color and image. It can be create a better stage effect with the lights.
Adjustable: 0.6m to 1.0m and 0.8m to 1.2m.It can be customized according to your request.


Aluminum folding stage
Size: 1.22m*2.44m
Stage board material: Plywood
Stage board thickness: 18mm
Stage board color: red, black, blown
Stage frame material: Aluminum alloy 6061-T6 /6082-T6
Stage frame color: Silvery
Advantage: Waterproof and skid resistance. It could folding and folding after the pulley can be driven, handling convenient.
Normal high: It is generally fixed height for 0.4m and 0.6m, it also can be customized.
Unit price: (it includes stage board, stage stand, stage brace, extendable tube, adjustable basement.)


Stage Features:
1. Our aluminum stage is design for the outdoor or indoor events
2. The height of legs can be adjustable, it is movable
3. Good loading capacity
4. Easy to set up and remove, Convenient transportation and save time, Smooth running, reduce vibration
5. The color of the floor and stage size can be changed according to customer's requirement
6. This product usually used for events, parties, model shows, music shows, fashion shows, etc.
7. It is very popular at stadium, mostly use in project.


Name	Stage
Place of Origin	Guangzhou China
Material	Aluminum 6061-T6, 18mm plywood
Dimension	1.22m*2.44m, 1.22m*1.22m or be customized
Height	0.6m-1m, 0.8m-1.2m, other height can be designed
Feature	Indoor or outdoor events, exhibitions, parties, model shows, music shows, fashion shows, etc.
Max Load capacity	750kg/sqm
Thickness of plywood	18mm, other thickness can be designed
Carpet color	Red and black, other colors can be customized

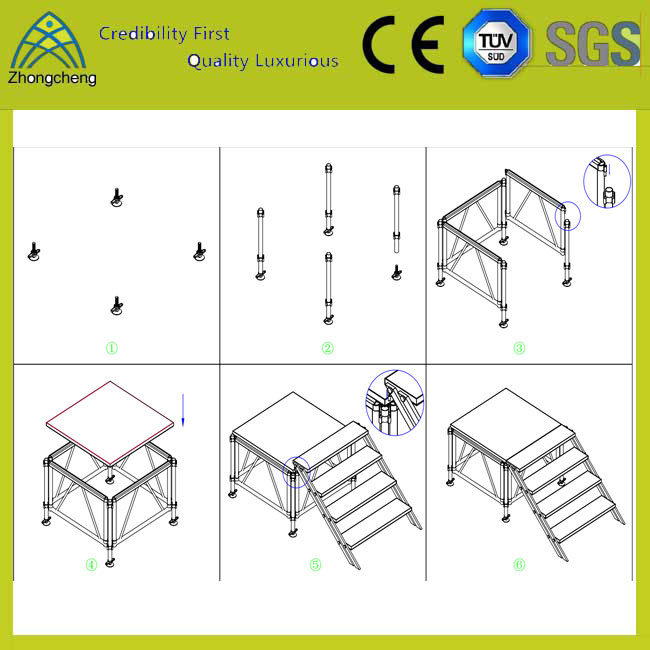

How to install the stage ?


the specification of truss we do as follows:
The size of truss we manufacture as bellow:
200mm*200mm,300mm*300mm,400mm*400mm,450mm*450mm,500mm*500mm,400*600mm,500mm*600mm, 520mm*760mm,600mm*760mm,760mm*910mm. The size can be customized to your special need.

Material	Aluminum 6082/T6. Aluminum 6061/T6
Length available	0.5m to 4m
Shape	Square
Color	Silvery
Type	Spigot
Certification	CE,SGS
Characteristics	Light weigh ,easy install and dismantle.
application	LED truss to hang LED screen / Iinear speakers or decorate truss
	Background truss: to hang up lights and LED, screen for truss frame
	Truss system: to hold events( for light, LED, speaker, audio, and so on)

Our company is a professional design, manufacture and sale various of aluminum truss, stage lighting stands, truss frame, line formation grid, tent, moving stage, folding stage and sound equipment racks and other performances production-oriented enterprises. Specifications and designs can be customized according to your needs. These professional equipment can be widely used in various of performances, exhibitions, weddings and all kinds of celebrations and so on.

Our company is located in Baiyun District of Guangzhou City, the plant covers an area of 3000 square meters, a beautiful environment, convenient transportation. The company not only has advanced equipment, strong technology, superb technology, as well as a complete and scientific quality management system and a group sense of community cooperation, hardworking employees. Companies adhering to the customer-focused, integrity-based, quality-win business philosophy. Through unremitting efforts to struggle the company's integrity, strength and quality of products recognized by the industry, has won domestic and  international customer recognition and support.
