Aluminium Alloy Indoor Performance Event Lighting DJ Stage

Prod Model:	ZC002
Size:	1.22m*1.22m
Truss Material:	Aluminum 6061-T6
Application:	Event Truss, Exhibition Truss, Performance Truss
Adjustable:	0.6m-1m, 0.8m-1.2m, 1.5m-2m
Large Bear-Loading:	750kg

Product Description

Aluminium Alloy Indoor Performance Event Lighting DJ Stage
aluminum plywood stage
Size: 1.22m*1.22m

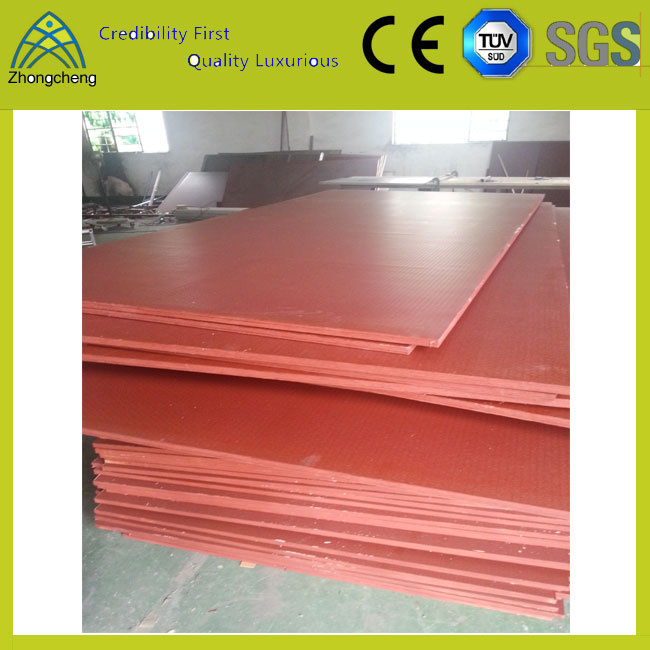

Stage board material: plywood
Stage board thickness: 18mm
Stage board color: black,red and brown
Stage frame material: Aluminum alloy 6061-T6 /6082-T6
Stage frame color: Silvery
Advantage: Waterproof and skid resistance. Easy to install and dismantle.
Adjustable:0.6m to 1.0m and 0.8m to 1.2m.It can be customized according to your request.


Material	Aluminum 6061-T6/6082-T6
Length available	0.5m to 4m ,it depends on your need .
Shape	square
colour	silvery,
type	acrylic stae, plywood stage
certification	SGS,CE
application	performance,exhition,project,ad.event

Material: Aluminum Alloy 6061-T6/ 6082-T6
Main tube: φ50mm*3mm thickness
Brace tube: φ30mm*2mm thickness
Stage specification:1.22x1.22m per piece or 1.22x2.44m per piece or be customized
Top platform:18mm thickness acrylic glass, plywood
Loading capability:750kg/sqm
Platform color Transparent,red, brown or black


Other type of our aluminum stage
Plexiglass stage:
Size: 1.22m*1.22m
Stage board material: Plexiglas's
Stage board thickness: 18mm
Stage frame material: Aluminum alloy 6061-T6 /6082-T6
Stage frame color: Silvery
Normal high: It is generally fixed height for 0.4m and 0.6m, it also can be customized according to your request.

Advantage:  Simple structure, suitable for fixed installation, it can be open outfit storing and transportation, save the costs.
Using the most flow structure and appearance, suitable materials elegant, durable, waterproof.
The stage board can be appropriate for color lighting and LED screen, it could changes in all sorts of color and image. It can be create a better stage effect with the lights.
Adjustable: 0.6m to 1.0m and 0.8m to 1.2m.It can be customized according to your request.

The Package of stage:


Aluminum folding stage
Size: 1.22m*2.44m
Stage board material: Plywood
Stage board thickness: 18mm
Stage board color: red, black, blown
Stage frame material: Aluminum alloy 6061-T6 /6082-T6
Stage frame color: Silvery
Advantage: Waterproof and skid resistance. It could folding and folding after the pulley can be driven, handling convenient.
Normal high: It is generally fixed height for 0.4m and 0.6m, it also can be customized.

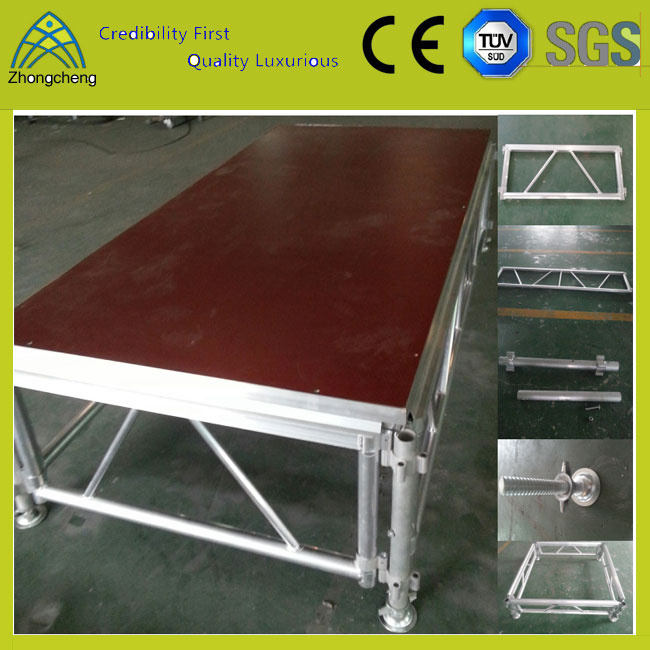

Unit price: (it includes stage board, stage stand, stage brace, extendable tube, adjustable basement.)

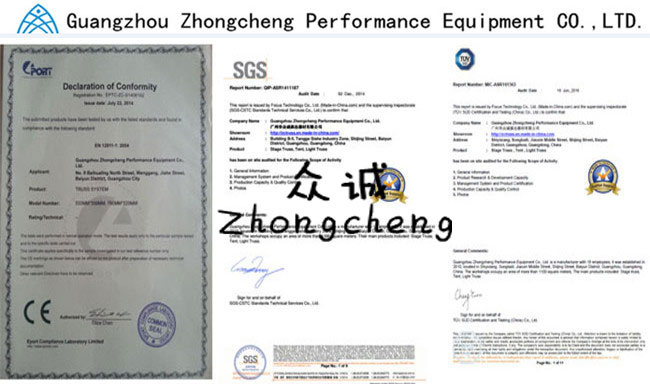

The certification of zctruss products


Trade Information

International Commercial Terms (Incoterms)	EXW, FOB, C&F, CIF (commonly use) Accepted Incoterms 2000 and 2010
Terms of Payment	TT, LC, West Union, Paypal 30 deposit prepaid before production, and balance paid before delivery
Average Lead Time	Peak season lead time: within 15 days Off season lead time: within 15 days
Packing	Bubble/ Hard Carton
Shipping Methods	1. By Express (DHL, UPS, FEDEX, TNT,EMS,ETC ETC) 2. By Air to your nearest airport---Loading Airport: Baiyun Airport 3. By Sea to your nearest seaport---Loading Port: Huangpu, Guangzhou

Transaction Process

Inquiry, Offer, Counteroffer, Acceptance (Product)	Specification
	Quantity
	Price
	Packing
	Place of Origin
	Delivery Time
	Terms of Payment
	Claim for Compensation
	Arbitration
Sign a contract	Order goods
Payment	TT/ LC etc
Prepare Goods	The goods, quality and specification shall be certified according to the requirement of the contract
	Goods quantity
	Lead Time
Packing	General export standard packing or Special export standard packing
	Packing and shipping marks
Customs Formalities	Handle Inspection Certificate
	Take the Packing List, Commercial Invoice, Exchange Control Declaration Export, Export Contact Duplicate and Inspection Certificate for Customs Clearance
Shipment	Load a ship with cargo
Insurance	Buy the insurance according to the goods price
Bill of Lading	Marine BL/ Airway BL
Settlement of Exchange	Do it according to the Law of the People's Republic of China

Why choose ZC Truss ?
1. 10-year's experience in truss and stage industry.
2. Customers from all over the world.
3. We are manufacturer, can offer you lower price.
4. Professional engineers offer technical support to customers.
5. 24hours online services
6. Our raw material is from the best one company in Guangzhou.
8.Years after sales service..
Choosing ZC Truss, you will get not only the products, but also the better service, and better operating mode.


FAQ:
1. Q: What certificate do ZC Truss have?
    A: SGS, CE and TUV certification.
2. Q: What is the terms of payment?
    A: Bank Transfer, Western Union
         By T/T, 30% of invoice value as deposit, 70% balance paid before shipment.and some others.
3. Q: Where is the loading port?
    A: Port Huangpu in Guangzhou or Ports in Shenzhen.
4. Q: How does your factory do regarding quality control?
    A: We control products quality under the instruction of national standards.
5. Q: What is your packaging?
    A: Air bubble film or Carton or fly case.
6)Q: When will you delivery the goods.
   A: After receiving your balance payments, we will deliver the goods within 7 days or as  your request.

Company Profile
Our company is a professional design, manufacture and sale various of aluminum truss, stage lighting truss, truss frame, line formation grid, moving stage, folding stage and sound equipment racks and tent and other performances production-oriented enterprises. Specifications and designs can be customized according to your needs. These professional equipment can be widely used in various of performances, exhibitions, weddings and all kinds of celebrations and so on.

Our company is located in Baiyun District of Guangzhou City, the plant covers an area of 3000 square meters, a beautiful environment, convenient transportation. The company not only has advanced equipment, strong technology, superb technology, as well as a complete and scientific quality management system and a group sense of community cooperation, hardworking employees. Companies adhering to the customer-focused, integrity-based, quality-win business philosophy. Through unremitting efforts to struggle the company's integrity, strength and quality of products recognized by the industry, has won domestic and international customer recognition and support.
