| Prod Model: |
BSC-1100IIIX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size (W × D × H): |
1100*800*1600mm |
| Internal Size (W × D × H: |
750*560*600mm |
| Gloves: |
One Pair 800mm Butyl Rubber Gloves |
| Air Velocity: |
240 ~ 470 Cfm |
| Negative Work Zone Pressure: |
- 120 PA |
| Pre-Filter: |
Polyester Fiber, Washable |
| Noise: |
≤ 63 Db |
| Front Window: |
Toughened Glass, Thickness Is No Less Than 8 Mm |
| Display: |
LCD |
| Power: |
110V~240V/50Hz~60Hz(Optional) |
| Color: |
White |
Product Description

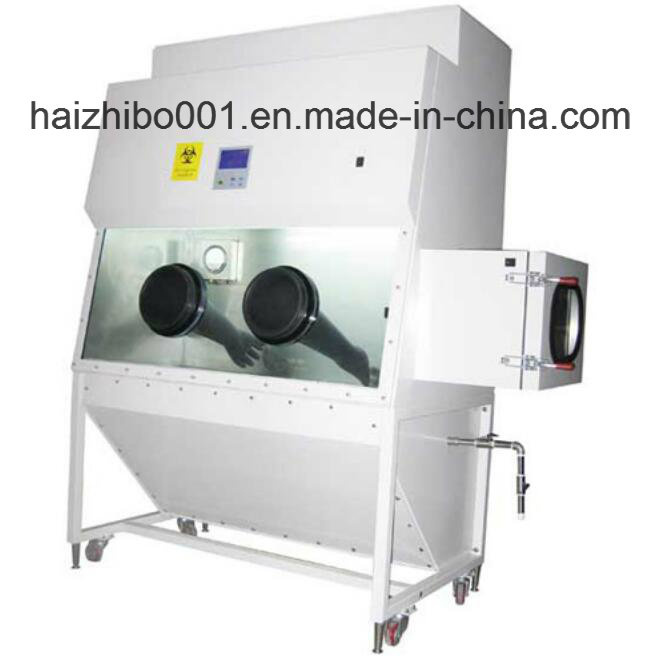

Our Class III Biosafety Cabinet is 100% air exhaust, no air recirculation, the air is exhausted by three ULPA filters and to the room directly. All operation is full sealed through a pare of quality gloves.
If the air needs to be exhausted to outdoors, another out connected duct need to be ordered, and extra duct and motor are required.
Main Advantages for our Safety Cabinet
1. Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.12μ M particles, better than HEPA filters.
2.10° Slope font allows an ergonomics design, fatigue-free working posture.
3. Cabinet operates at negative pressure relative to the laboratory in order to prevent migration of pathogenic materials out of the work area.
4. It effectively sterilizes work area with UV installed inside.
Production Standard
1, US Standard ANSI/NSF49: 2002; 2, European Standard EN12469: 2000; 3, Chinese Standard YY0569-2005 Certificates ApprovedISO9001, ISO14001, ISO13485, CE
| Model | BSC-1100IIIX | BSC-1500IIIX |
External Size
(W × D × H) | 1100*800*1600mm | 1340*850*2100mm |
Internal Size
(W × D × H) | 750*560*600mm | 1240*650*650mm |
| Pass Box Size | Internal Size: 390*380*330 mm | Internal Size: 390*380*330 mm |
| External Size:470*420*400mm | External Size:480*400*400mm |
| Gloves | One pair 800mm butyl rubber gloves |
| Material | Work Surface: 304 stainless steel |
| Body: Expoxy coated cold-rolled steel |
| Air Velocity | 240 ~ 470 cfm | 440 ~ 870 cfm |
| Negative Work Zone Pressure | - 120 Pa |
| Pre-filter | Polyester fiber,Washable |
| Main Filter | Air supply filter: ULPA filter 99.999% efficient(0.12 microns) |
| First exhaust filter: ULPA filter 99.999% efficient(0.12 microns) |
| Second exhaust filter: ULPA filter 99.999% efficient(0.12 microns) |
| Noise | ≤ 63 dB |
| Front Window | Toughened glass, thickness is no less than 8 mm |
| Display | LCD |
| Alarm | Visual and audio alarm |
| Lighting | ≥ 800 lux |
| UV lamp | 20W *1,8W *1 | 30W * 8W *1 |
| Fluorescent | 14W * 1 | 28W*2 |
| Power | 110V~240V/50Hz~60Hz(Optional) |
| Accessories | Gloves, fluorescent light, UV lamp, exhaust duct |
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
