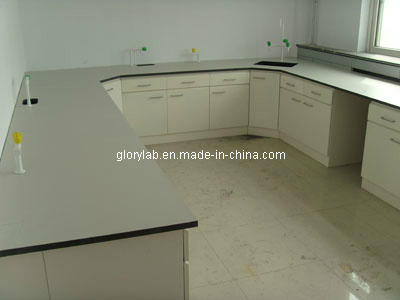

New Type Steel Corner Bench Lab Furniture (JH-SL005)
| Price: |
US $ 500-1000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
JH-SL005 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Based on Customer's Requirement |
| Colour: |
Based on Customer's Requirement |
| Worktop: |
19mm Epoxy Resin/16mm Lab Grade Phenolic Resin |
| Hinge: |
304 Hydraulic Stainless Steel Hinge |
| Accessories: |
Toff |
| Handle: |
304 Stainess Steel U-Type Handle |
| Feature: |
It's with Sound Asorbing Material Inside of Door |
| Material: |
Steel |
Product Description
Specification:
Product name: Steel centre bench(lab furniture)
Type: JH-SL005
Size: 5500X1500X850mm
The size can be custom-made requested by customers.

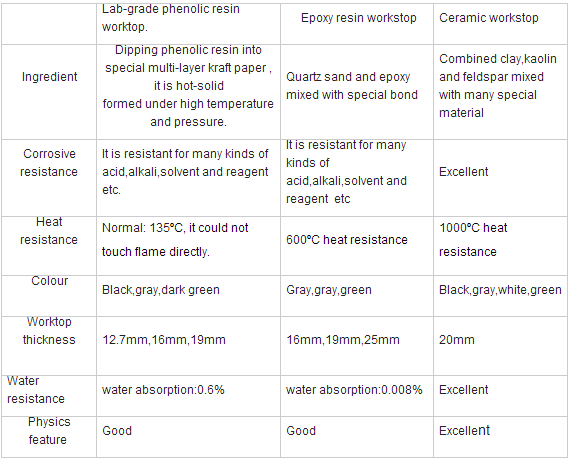

A. Worktop: The worktop is based on the requirement of customers such as phenolic resin board, epoxy resin board or ceramic board. The edge of worktop will be treated specially to ensure its safety for human body.B. Structure: Steel structure, full cabinet design, the material for cabinet is 1.0mm BAOGANG cold rolled sheet. The processing procedures includes cutting, grooving, bending, shaping, assembling and polishing. The products are produced by precise CNC machine. All the welding points have been polished specially which will not hurt the hand. The inside cabinet is with front and back upright columns and reinforcing ribs to increase the bearing capacity and impact resistance capacity.
C. Cabinet: The cabinet is made of high quality cold rolled sheet with different thickness as per its different loading weight. The surface is treated by acid washing, phosphorization before coating by epoxy resin powder. The cabinets can be opened with all blank space without middle support. The inside cabinet is equipped with adjustable setting for mobile layer.
D. Surface panel for door and drawer: The door is with double layer made of 1.0 BAOGANG cold rolled sheet. We can fill the sound insulation material into the inside space between two layers if it's required by customer. The drawer is shaped once made of bending cold rolled sheets. It's with excellent bearing capacity for the support of drawer. The sealed panel after bending connects with the outside drawer surface by self-drilling screws. It can prevent the crashing when closing the drawer and noise caused by abrasing the coated layer.
E. Bottom panel for cabinet body: The bottom panel is formed once with reinforcing ribs to increase its bearing capacity and prevent the deforming of steel layers.
F. Handle: Stainless steel U-type handle or long handle shaped once made of steel.
G. Movable back panel: Movable and free dissembling structure which is convenient for checking water, electricity and gas pipe etc.
H. Movable layer: It's with reinforcing rib inside to increase its bearing capacity to avoid deforming. It can be dissembled freely and the height can be adjusted.
I. Hinge: Using durable DTC 90 degree or 304 stainless steel hinge which can be used for long time.
J. Drawer sliding rail: Using 3-joints bearing drawer rail with noise reduction, it can ensure the full opening for the drawer with good bearing capacity and without deforming.
K. Shelf: The shelf is made of steel frame and steel hanging pieces. The layer is made of toughened glass which is suitable to put all kinds of chemicals on it.
Jiangsu jiahong laboratory equipment co, Ltd. Is a professional manufacturer for fume hood, lab furniture and lab fitting. Our company is located in suzhou city, jiangsu province which is very near with Shanghai and the traffic is very convenient. We take on the designing, production and installation for lab system based on customer's requirement.
Our products include steel fume hood, PP fume hood, steel lab furniture, wood lab furniture, wood lab furniture with frame, various lab cabinets, epoxy resin worktop, lab accessories etc.
We have advanced CNC machine, very big production base, experienced workers and technicans. It ensures the quality and production volume of our products. We have exported to many countries including Greece, USA, Argentina, and some countries in Middle East and Africa, including universities, schools, pharmacy factories, hospitals etc. Some of our products have been got SGS and CE product certification.
Our company has obvious cost advantages compared with many producers. Our company has own dependent automatic epoxy resin coating line which is very advanced in China. Seldom manufacturer in our field has own coating line in China. It reduces our production cost, and ensures the coating quality and delivery time.
