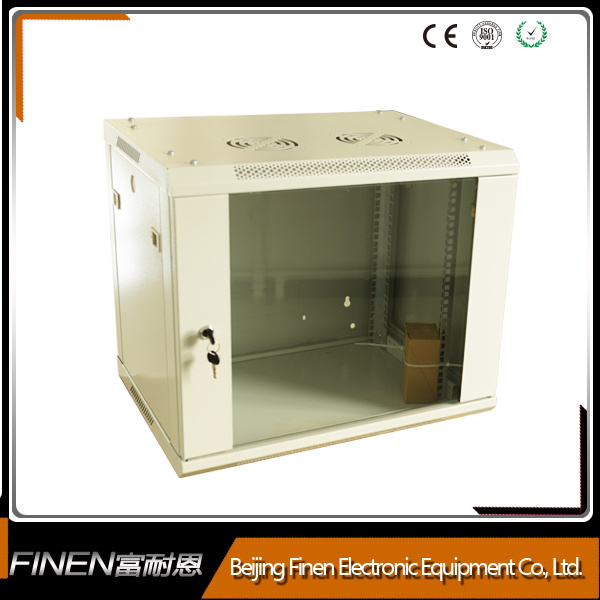

Network Switch Rack 4u 6u 9u Glass Door 19" Wall Mount Cabinet White

Price:	US $ 26/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Model No.:	Wl
Product Name:	Server Cabinet
Installation Type:	Vertical
Optional Color:	Black,Gray,White
Feature:	Wall Mounted Cabinet
Width:	550,600mm
Depth:	450mm
Surface Finish:	Powder Coating
Material:	SPCC Cold Rolled Steel
Type:	Network Cabinet
Usage:	Network Integration System
Installation:	Wall-Mounted Cabinet
Certification:	RoHS
Condition:	New
Fan Number:	Optional
Capacity:	4u-18u

Product Description

network switch rack 4u 6u 9u glass door 19" wall mount cabinet white

Specification:

Basic Information
1) Standard	Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2) Material	SPCC high-quality cold rolled steel
3) Thickness	Mounting profile 2.0mm Others 1.0mm
4) Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
5) Protection Degree	IP20
6) Loading Capacity	60kgs(=132lbs)
7) Color	Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032)
Features
2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door Specifications Width - 21.65 Inches (550mm) 23.62 Inches (600mm), Depth - 17.72 Inches (450mm) ,23.62 Inches (600mm) Rail Width - 19 inch EIA Compliant Advantage 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available Recommended options Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves

Width(mm)	Depth(mm)	Capacity(U)	Height(mm)	Order Number
600	450	4	280	WM6404
		6	368	WM6406
		9	501	WM6409
		12	635	WM6412
		15	769	WM6415
		18	901	WM6418
	600	4	280	WM6604
		6	368	WM6606
		9	501	WM6609
		12	635	WM6612
		15	769	WM6615
		18	901	WM6618

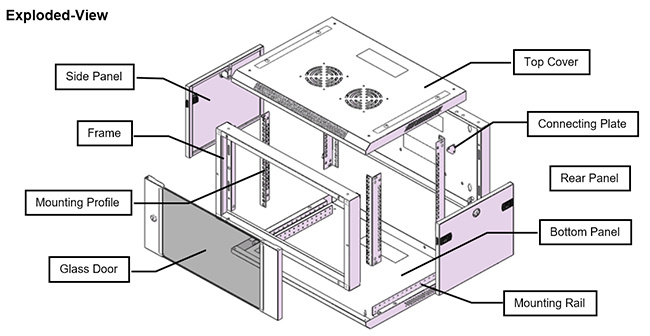

Cabinet Structure

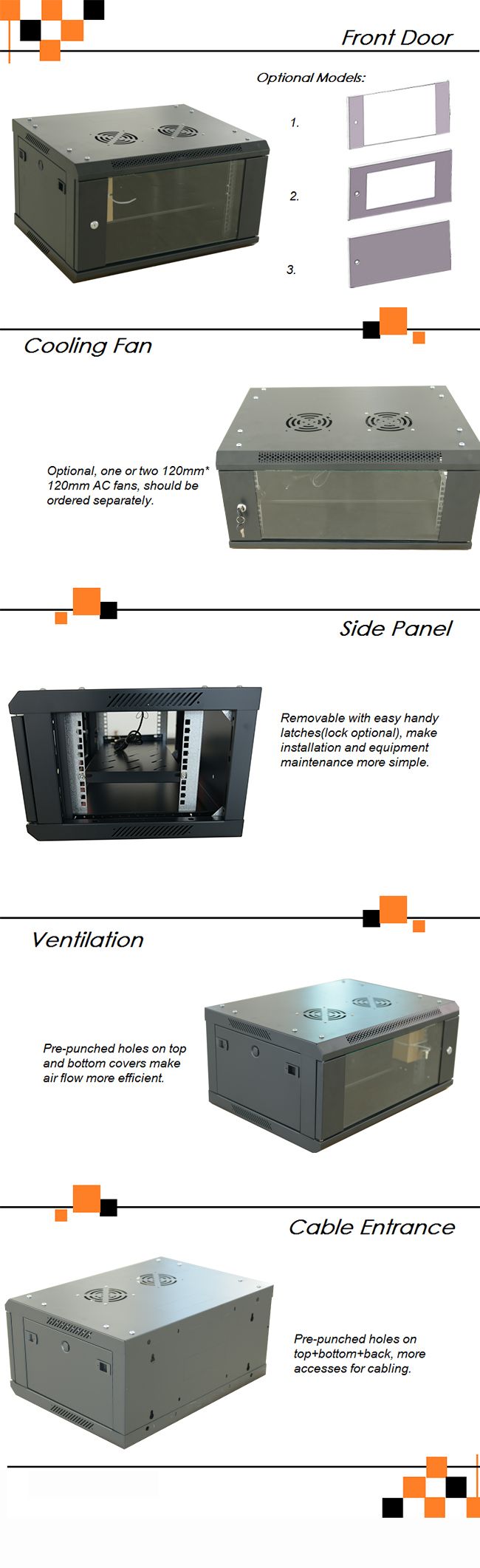

Cabinet Details

Specification
