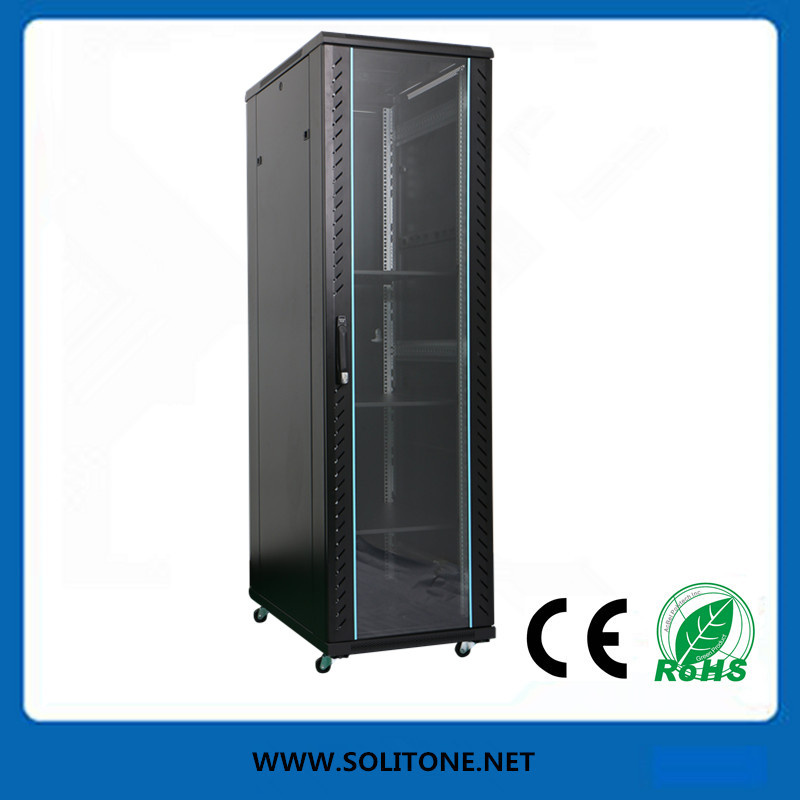

Network Cabinet/Server Cabinet (LEO-MS4-9301) with High Quality
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
LEO-MS4-9301 |
| Size: |
600 X 600 X 2055mm |
| Price: |
Competitive Price |
| Quality: |
Top Quality |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Condition: |
New |
| Certification: |
Ce/ISO/RoHS |
| Capacity: |
12u-58u |
| Fan Number: |
as Per Customer Request |
| Type: |
Server Cabinet/Network Cabinet/Standard Cabinet |
Product Description
We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet,PDU and much more since 2000 Customer Branded/Unbranded Network Cabinet
Standard1.Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard2.Compatible with metric, ETSI and 19'international standardFeatures1.Available in black and gray2.Good compatibility, adapt to more servers, Perfect ventilation3.Vented front door and rear door enable ventilation and reliable operation4.The top and bottorn wiring channel can be closed and adjusted5.Optional plinth to meet under base wiring, ventilation and rat-proof6.Rack's side panel can be easily assembled and with Advanced lock7.Adjustable feet and heavy duty castors are available at the same time static loading: 800kg to 1000kg. (with adjustable feet).8.Height, width, and depth selectable, full range of optional accessories.9.Surface finish: Degreasing, pickling, phosphating, powder coatingMaterialsCold rolled steel sheet; Thickness, frame 1.2mm. Mounting rail 2.0mm(1.5mm for 600mmdepth), fixed shelf 1.2mm, side panel 1.2mm, smoke-gray tempered glass 5mmApplicationWidely applied in finance, securities and data center; Adopted by the professional servers' network providers as IBM, SUN, HP, COMPAQ, DELL etc. | Width (mm) | 600 / 800 (Optional) |
| Depth (mm) | 600 / 800 / 1000 /1200 (Optional) |
| Capacity / Height (Optional) | Capacity(U) | Height (mm ) |
| 12U | 722 |
| 15U | 855 |
| 18U | 988 |
| 20U | 1077 |
| 22U | 1166 |
| 24U | 1255 |
| 25U | 1299 |
| 27U | 1388 |
| 28U | 1433 |
| 30U | 1522 |
| 32U | 1611 |
| 36U | 1788 |
| 37U | 1833 |
| 40U | 1966 |
| 42U | 2055 |
| 44U | 2144 |
| 45U | 2188 |
| 47U | 2277 |
| 48U | 2322 |
| 52U | 2500 |
| 57U | 2722 |
| 58U | 2766 |
Marketing Under "Solitone" Brand
Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".
Daily Output of 560, 000 Meters
By utilizing 10 production lines and supported by 250 to 300 workers in our 16, 000sqm factory, we can turn out 560, 000 meters daily. To guarantee quality, we have nine to 14 QC auditors with an average experience of 13 years. They perform piece-by-piece inspections at each production level before delivery. We have an R&D team composed of five to nine engineers with an average experience of 10 years. They can produce customized items. To keep your option fresh, we release three to five new models per month.
Get a Reply within 24 Hours
Over 20 customers have been cooperating with us for over 10 years. Because we are highly committed to providing high quality, 95% of our customers place repeat orders with us. We are willing to support all developing companies, small or medium.
E-mail us today to know more. We will reply within one working day.
