Shenzhen Leo Network Technology Co., Ltd. >> Network Cabinet/Server Cabinet (LEO-MS2-9001) with High Quality

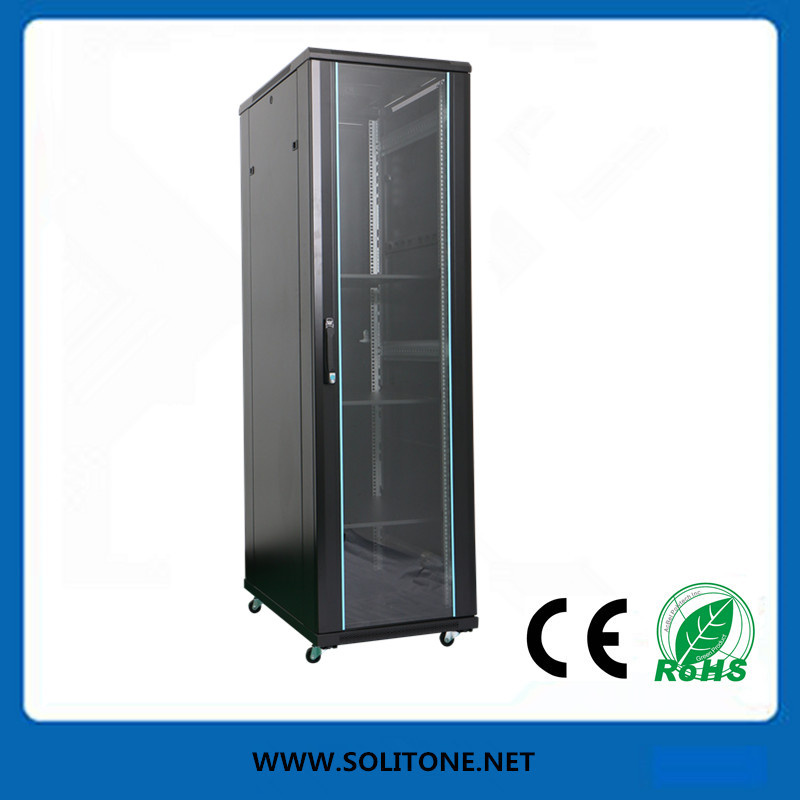

Network Cabinet/Server Cabinet (LEO-MS2-9001) with High Quality

Network Cabinet/Server Cabinet (LEO-MS2-9001) with High Quality
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: LEO-MS2-9001
Size: 600 X 600 X 2055mm
Price: Competitive Price
Quality: Top Quality
Usage: Network Integration System
Installation: Vertical
Condition: New
Certification: Ce/ISO/RoHS
Capacity: 12u-58u
Fan Number: as Per Customer Request
Type: Server Cabinet/Network Cabinet/Standard Cabinet

Product Description

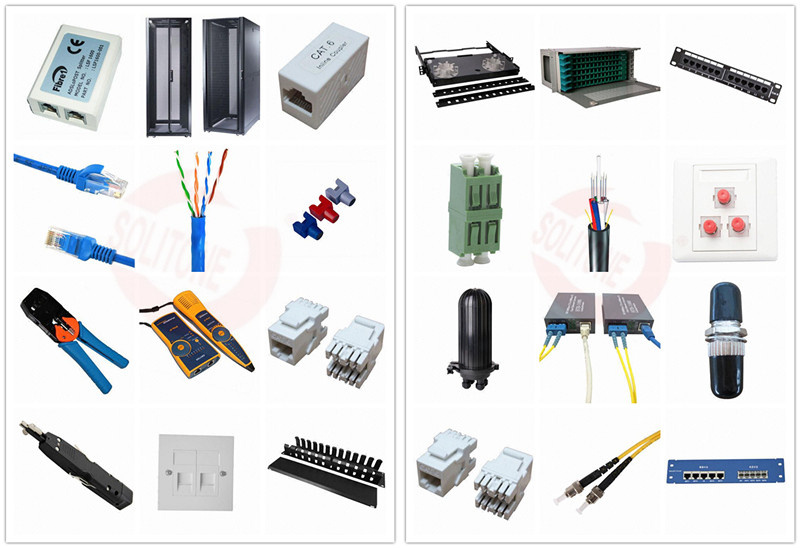

We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet,PDU and much more since 2000


Customer Branded/Unbranded Network Cabinet


Standard
1.Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard
2.Compatible with metric, ETSI and 19'international standard

Features
1.Available in black and gray
2.Good compatibility, adapt to more servers, Perfect ventilation
3.Vented front door and rear door enable ventilation and reliable operation
4.The top and bottorn wiring channel can be closed and adjusted
5.Optional plinth to meet under base wiring, ventilation and rat-proof
6.Rack's side panel can be easily assembled and with Advanced lock
7.Adjustable feet and heavy duty castors are available at the same time static loading: 800kg to 1000kg. (with adjustable feet).
8.Height, width, and depth selectable, full range of optional accessories.
9.Surface finish: Degreasing, pickling, phosphating, powder coating

Materials
Cold rolled steel sheet; Thickness, frame 1.2mm. Mounting rail 2.0mm(1.5mm for 600mmdepth), fixed shelf 1.2mm, side panel 1.2mm, smoke-gray tempered glass 5mm

Application
Widely applied in finance, securities and data center; Adopted by the professional servers' network providers as , SUN, HP, COMPAQ, etc.

Width (mm)600 / 800
Depth(mm)600 / 800 / 1000 /1200
Height / Capacity12U722 mm
15U855 mm
18U988 mm
20U1077 mm
22U1166 mm
24U1255 mm
25U1299 mm
27U1388 mm
28U1433 mm
30U1522 mm
32U1611 mm
36U1788 mm
37U1833 mm
40U1966 mm
42U2055 mm
44U2144 mm
45U2188 mm
47U2277 mm
48U2322 mm
52U2500 mm
57U2722 mm
58U2766 mm

Marketing Under "Solitone" Brand

Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".

Daily Output of 560, 000 Meters

By utilizing 10 production lines and supported by 250 to 300 workers in our 16, 000sqm factory, we can turn out 560, 000 meters daily. To guarantee quality, we have nine to 14 QC auditors with an average experience of 13 years. They perform piece-by-piece inspections at each production level before delivery. We have an R&D team composed of five to nine engineers with an average experience of 10 years. They can produce customized items. To keep your option fresh, we release three to five new models per month.

Get a Reply within 24 Hours

Over 20 customers have been cooperating with us for over 10 years. Because we are highly committed to providing high quality, 95% of our customers place repeat orders with us. We are willing to support all developing companies, small or medium.

E-mail us today to know more. We will reply within one working day.
