Prod Model: |
ST-NCE-42U-68 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
600*800*2055mm |
Competitive Price: |
Quality |
Ce/RoHS: |
New |
Price: |
42u Network |
Usage: |
Network Integration System |
Installation: |
Vertical |
Certification: |
CE |
Condition: |
New |
Capacity: |
42u |
Fan Number: |
as Per Customer Request |
Type: |
Network Cabinet/Server Cabinet |

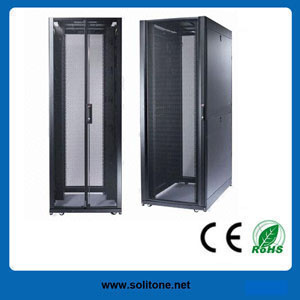

Product Description
We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet,PDU and much more since 2000 Customer Branded/Unbranded Network Cabinet
Standard1.Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard
2.Compatible with metric, ETSI and 19'international standard
Features1.Available in black and gray
2.Good compatibility, adapt to more servers, Perfect ventilation
3.Vented front door and rear door enable ventilation and reliable operation
4.The top and bottorn wiring channel can be closed and adjusted
5.Optional plinth to meet under base wiring, ventilation and rat-proof
6.Rack's side panel can be easily assembled and with Advanced lock
7.Adjustable feet and heavy duty castors are available at the same time static loading: 800kg. (with adjustable feet).
8.Height, width, and depth selectable, full range of optional accessories.
9.Surface finish: Degreasing, pickling, phosphating, powder coating
MaterialsCold rolled steel sheet; Thickness, frame 1.2mm. Mounting rail 2.0mm(1.5mm for 600mmdepth), fixed shelf 1.2mm, side panel 1.2mm, smoke-gray tempered glass 5mm
ApplicationWidely applied in finance, securities and data center; Adopted by the professional servers' network providers as IBM, SUN, HP, COMPAQ, DELL etc.
Model No | Capacity/U | Width*Depth*Height (mm) |
ST-NCE47-66 | 47U | 600*600*2277 |
ST-NCE47-68 | 600*800*2277 |
ST-NCE47-610 | 600*1000*2277 |
ST-NCE47-88 | 800*800*2277 |
ST-NCE47-810 | 800*1000*2277 |
ST-NCE42-66 | 42U | 600*600*2055 |
ST-NCE42-68 | 600*800*2055 |
ST-NCE42-610 | 600*1000*2055 |
ST-NCE42-86 | 800*600*2055 |
ST-NCE42-88 | 800*800*2055 |
ST-NCE42-810 | 800*1000*2055 |
ST-NCE37-66 | 37U | 600*600*1833 |
ST-NCE37-68 | 600*800*1833 |
ST-NCE32-66 | 32U | 600*600*1610 |
ST-NCE27-66 | 27U | 600*600*1388 |
ST-NCE22-66 | 22U | 600*600*1166 |
ST-NCE18-66 | 18U | 600*600*988 |
