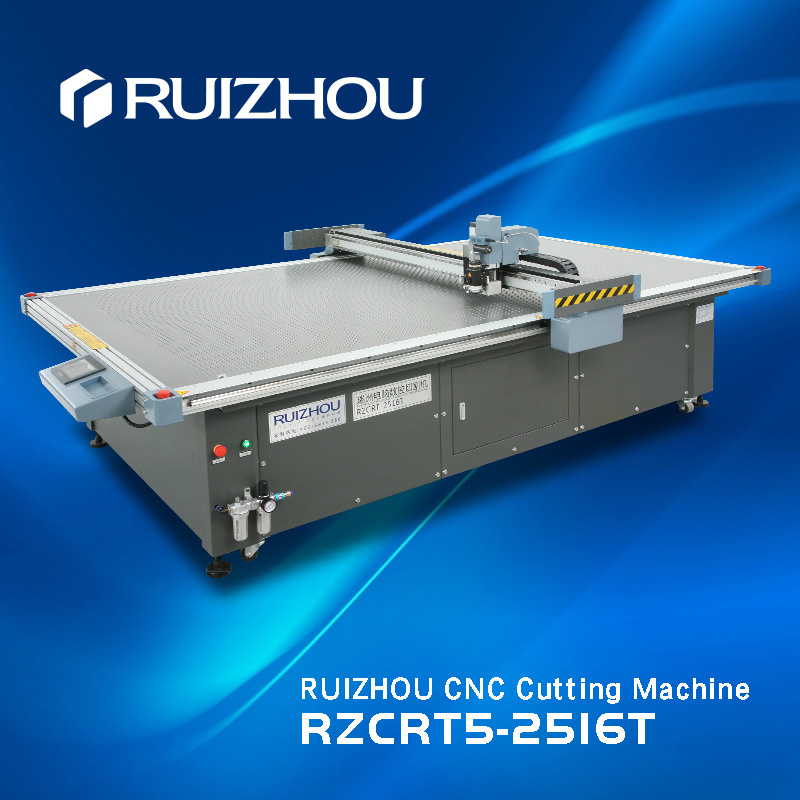

| Prod Model: |
RZCRT5-2516T |
| Cutting Tool: |
Vibration Knife |
| Table Type: |
Conveyor Table |
| Effective Working Area: |
2500mm*1600mm |
| Cutting Thickness: |
0-25mm(Customized Cutting Machine Can up to 50mm |
| Cutting Speed: |
0-1200mm/S |
| Motor: |
Servor Motor |
| Material Fixing Method: |
Divisional Vacuum Absorption |
| Air Pump Power: |
9kw |
| Voltage: |
220V |
Product Description

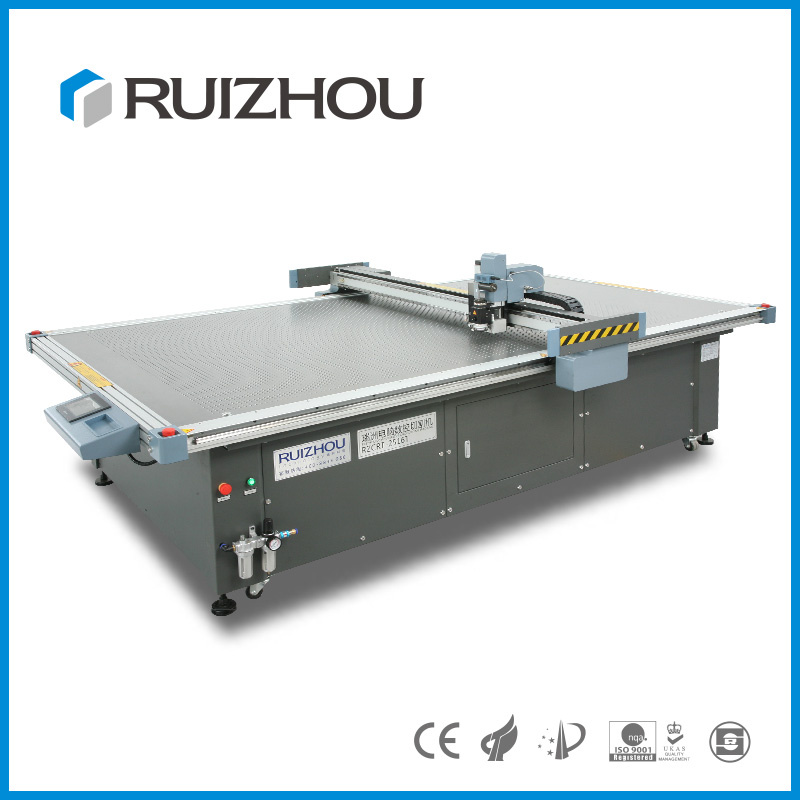

Natural Genuine Leather CNC Cutting Machine for Sofa/Car Seat Covers
Ruizhou cnc cutting machine applies vibrating knife on the cutting head. It's possible to cut a wide range of car mats materials like Loop Material, PU-based Sponge, PU, Composite Material, PVC; Rubber; Jean etc.Due to the good performance and stable quality, Ruizhou sample cutters have been widely used for automotive interior (universal car mats, special car mats, car seats, handle parts ...) sample making or small bulk production.
Parameter| Item Number | RZCRT5-2516T |
| Cutting speed | 0-1200mm/s |
| Effective working area | 2500mm*1600mm |
| Air pump power | 9KW |
| Cutting thickness | 0-25mm(Common); 0-50mm(High) |
| Cutting Materials | Corrugated paper, Honeycomb board, Cardboard, Plastic, Rubber board, Grey board, PVC, PU, Acrylic, composite materials, etc. |
| Tools | Oscillating knife
V-cut, router, creasing wheel, punching tool,
Marking pen |
| Material fixing method | Divisional vacuum absorption |
| Mechanical resolution | 0.07mm |
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) |
| Interface of transmission | Network port |
| Buffer capability | Once fast transfer |
| Command system | HP-GL and GP-GL compatible formats |
| Digital Control Panel | Touch screen |

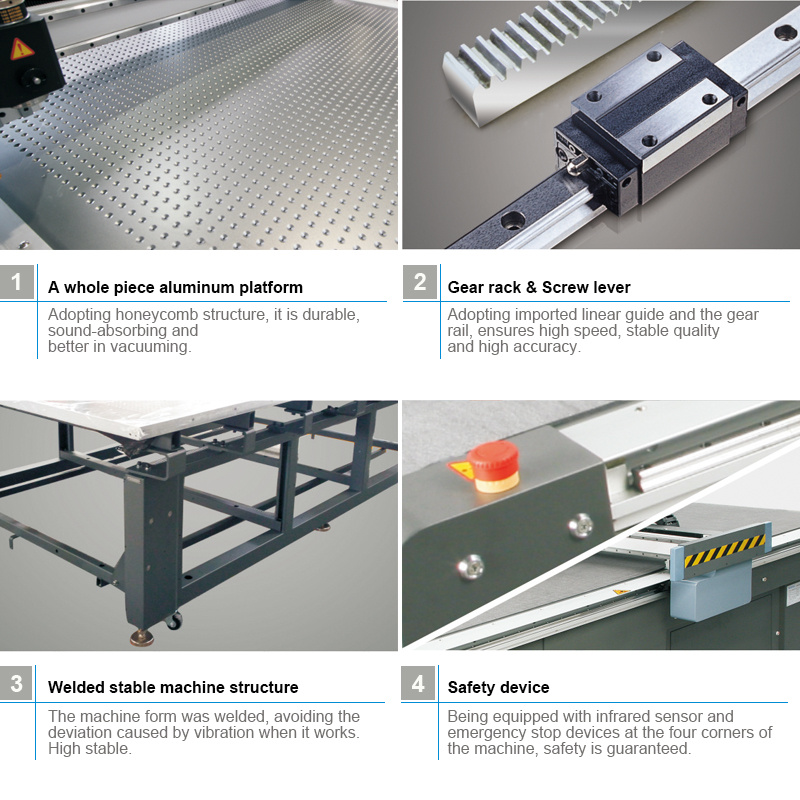

| Transmission Materials | Imported straight line guide track, gear rack |
| Motor | Servo motor |
| Cutting Blade Rotate | 18000r/min |
| Working Voltage | AC 220V ± 10%, 50HZ (Machine); AC 380V ± 10%, 50 HZ (Air Pump) |

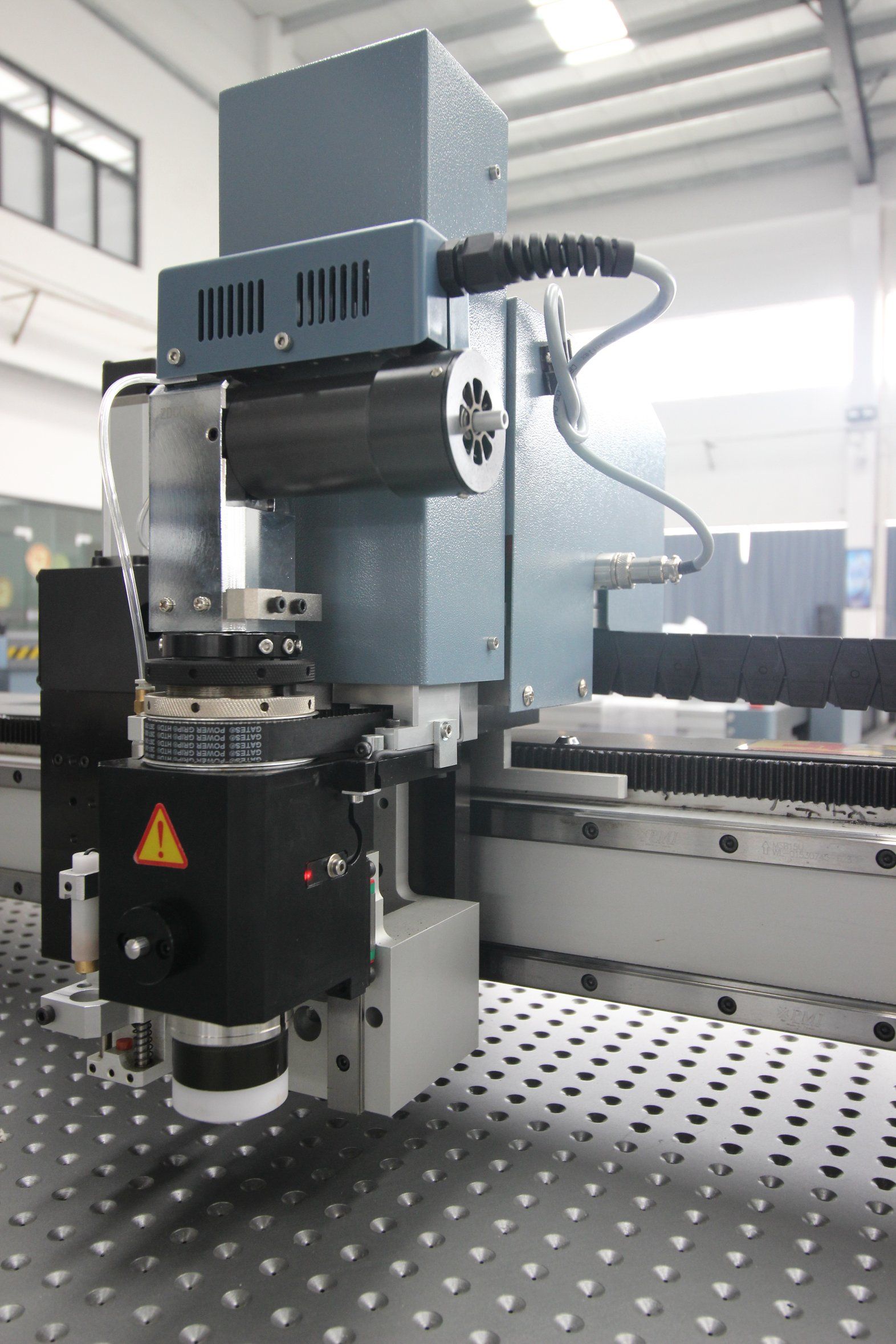

Tools & FunctionsThis package cutting machine has a multifunctional working head. The working head can be installed with different working tools. With different working tools this package cutting machine is professional and suitable fo users with various kinds of purpose.
1. Oscillating cutting tool: it is the main cutting tool with a vibrating knife. The characteristics are fast, accurate and no burning nor smell.

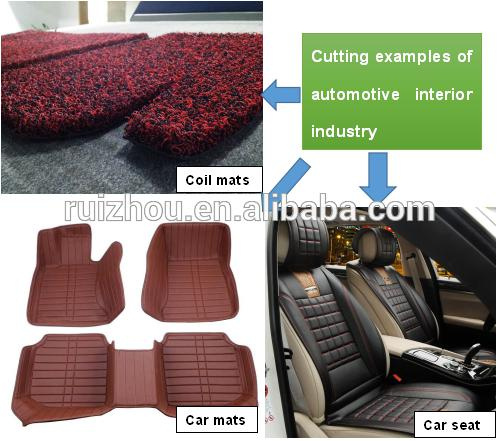

Cutting Samples of Car Seat Cutting Machine
Advantage of Our CNC Cutting Machine
1. Time Saving: The machine cuts by vibration knife. It's possible to finish cutting 3 pieces of 4D or 5D car mats within 3 minutes, much faster than cutting by hand. It guarantees fast output of customized car mats.
2. Material Saving: Pattern nesting can be done and checked carefully before cutting, avoiding hiden lost during careless cutting by workers. It can save at least 5% materials than manual cutting.
3. Storage Room Saving: Cut whatever you want, whenever you need. No need to have a large storage room for a large quantity of ready car mats.
4. Flexibility: Each customer can pick up the materials, patterns they like to make the special car mats for their special cars, expending a large automotive beauty industry at your end!General Production Procedures for Special Car Mats:1- Get ready for the car mats models
You can make the car mats by scanning paper patterns using A0 digitizer to make digital pattern files.
Or you cna use 3D scanner to scan the car and directly get the car mats digital files.
2- Car mats pattern nesting
You can do the pre-nesting by using automatic nesting software or do it manually.
3- Material preparation
Choose the material and patterns you like from your materials.
4- Car mats cutting
Send the digital car mats file to the machine and start cut on your material. You can pick up the parts after a few minutes.
5- Car mats rapping and stitching
Collect all the cut parts to the stitching room, make the rapping of the edge by using the rapping machine. Join the parts by using stitching machines. Package of Our CNC Cutting MachineThe package is one part of the factory production line. The standard overseas wooden package has also to be quality controlled in order to guarantee the products be perfect when they arrive at your hands.

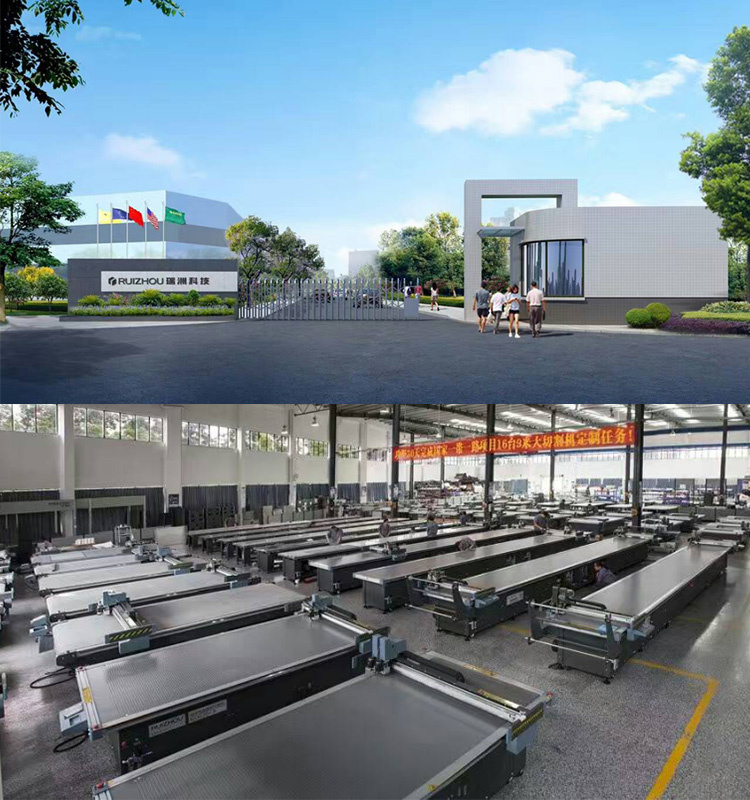

Company ShowSince 1995, RUIZHOU has been concentrating on researching and developing of CAD/CAM system. At present. RUIZHOU is a National High-Tech Enterprise famous at home and abroad. During the past years it has been developing better and better with winning lots of honors on the way. According to the evaluation by HC International Inc in 2014, our company is the TOP ONE supplier in the domestic soft material cutting system area. Ruizhou has been awarded "Top Ten Footwear Machine Enterprise""Top Ten Innovative Enterprise""The Most Influential Enterprise".RUIZHOU has gained over 50 patents. They are 5 China Invention Patents, 24 Utility Model Patents, 9 Design Patents and 13 Software Copyrights. And there are 7 Invention Patents and 2 PCT Patents under auditing.
Related Products of Our CNC Cutting Machine
| Item Number | Working Area |
| RZCRT5-1007E | 1000X700MM |
| RZCRT5-1510E | 1500X1000MM |
| RZCRT5-1813E | 1800X1300MM |
| RZCRT5-2516E | 2500X1600MM |
| RZCRT5-2516EF | 2500X1600MM
(with automatic feeding shelf) |
| RZCRT5-3016E | 3000X1600MM |
| RZCRT5-3016EF-2H | 3000X1600MM
(with double cutting head ) |
| RZCRT5-3625E | 3600X2500MM |
| RZCRT5-3625EF-2H | 3600X2500MM
(with double cutting head ) |
| RZCRT5-9009 | 9000X900MM |
| RZCRT5-9009-2H | 9000X900MM
(with double cutting head ) |
| RZCRT5-12009-2H | 12000X900MM
(with double cutting head ) |
| RZCRT5-12016-2H | 12000X1600M
(with double cutting head ) |
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
Note
Please contact with us for an accurate price;
It will be appreciated if you could kindly advise us your requirements in details!
