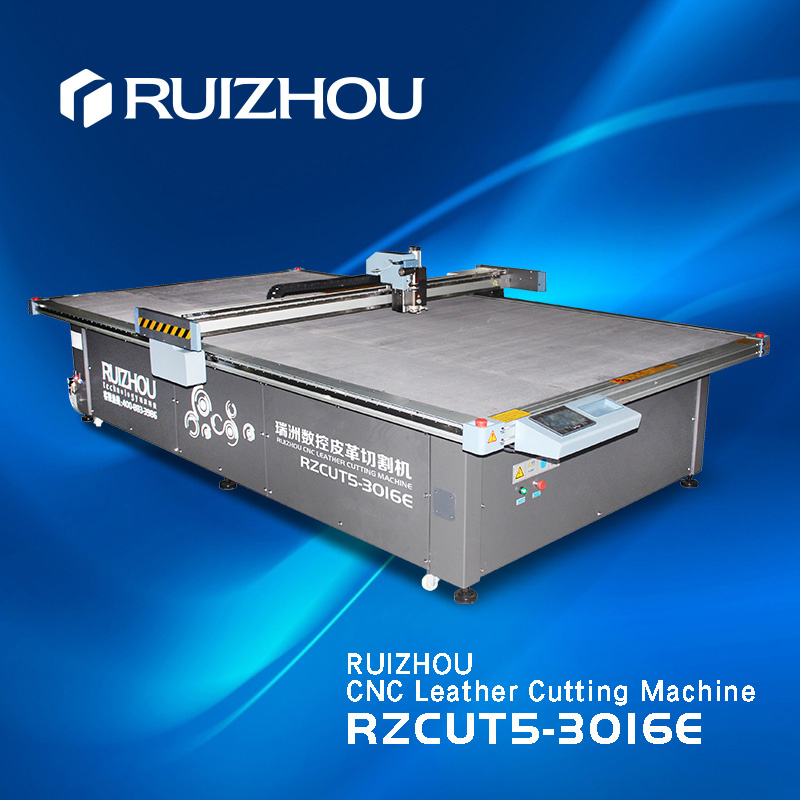

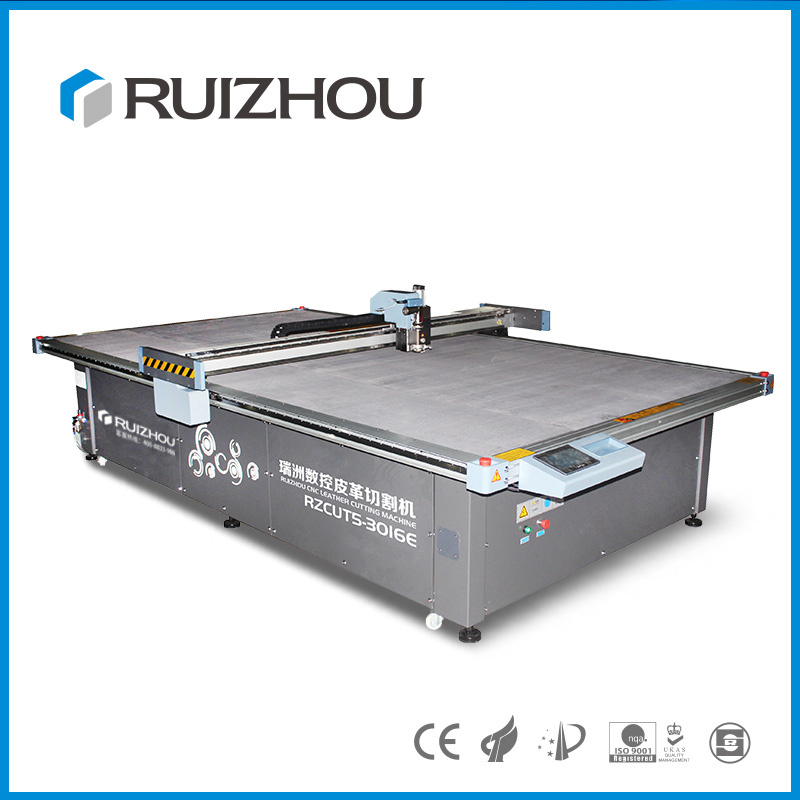

3016 CNC No Laser Cutting Bed Machine for Fabric Leather

3016 CNC No Laser Cutting Bed Machine for Fabric Leather
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: RZCUT5-3016E
Working Area: 3000mm X 1600mm
Machine Dimesion: 3800mmx 2220mm X 1350mm
Weight: 1900kg
Cutting Speed: 0mm - 1200mm/S
Cutting Thickness: 0.5mm - 6mm
Original Place: Guangdong, China
Name Brand: Ruizhou
Voltage: 220V±10%; 380V ± 10%
Knives: Oscillating Blade Head, Milling Cutter, Hobbing Cu
Method Of Fixing Material: Divisional Vacuum Absorption
Type: Leather Cutting Machine
Certification: ISO9001
Knife Type: Oscillating Knife Cutting

Product Description

3016 CNC No Laser Cutting Bed Machine for Fabric Leather

This leather cutting machine is a professional cutting system for leather shoes and footwear.
It is of good quality, high speed, stable functions and competitive price, specially providing a revolutionary cutting solution for footwear, garment, case and bag, car and plane chair, furniture and apparel industries.





Parameter of Leather Cutting Machine
Model of patterncutting machineRZCUT5-3016E
Effective working area3000mm×1600mm
Cutting speed0-1200mm/s
Cutting thickness0.5-6mm
Method of fixing materialDivisional vacuum absorption
Cutting toolsOscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
Types of penGel pen, Mark pen, ball pen, silver pen
Human Machine Interface (HMI)Touch screen LCD
MotorServo Motor, Stepper Moter
Cutting accuracy±0.1mm
Machine resolution0.01mm
Software resolution0.025mm
Interface of transmissionNetwork port
GearingLinear guide and gear rack
Machine voltage220V±10%
Air pump power9KW
Energy saving deviceFrequency converter
Software programIndependent research and development CNC software
Control systemCutting table and computer display

Characteristics
1.Computerized. The machine receives data from the computer and run. Therefore, the accuracy is high and speed is high.
2.Compatible. The plotter supports any design software which can output files in DXF or PLT formats (Such as AutoCAD, AI, CorelDraw).
3.Competitive. Easy to modify old designs and make new ones, 3-5 times faster than manual cutting, these helps you to be more competitive.
4.Userfriendly. This cutting machine was designed easy to install, set-up and operate. Within a 3-day training, a new operator can master the machine quite well.

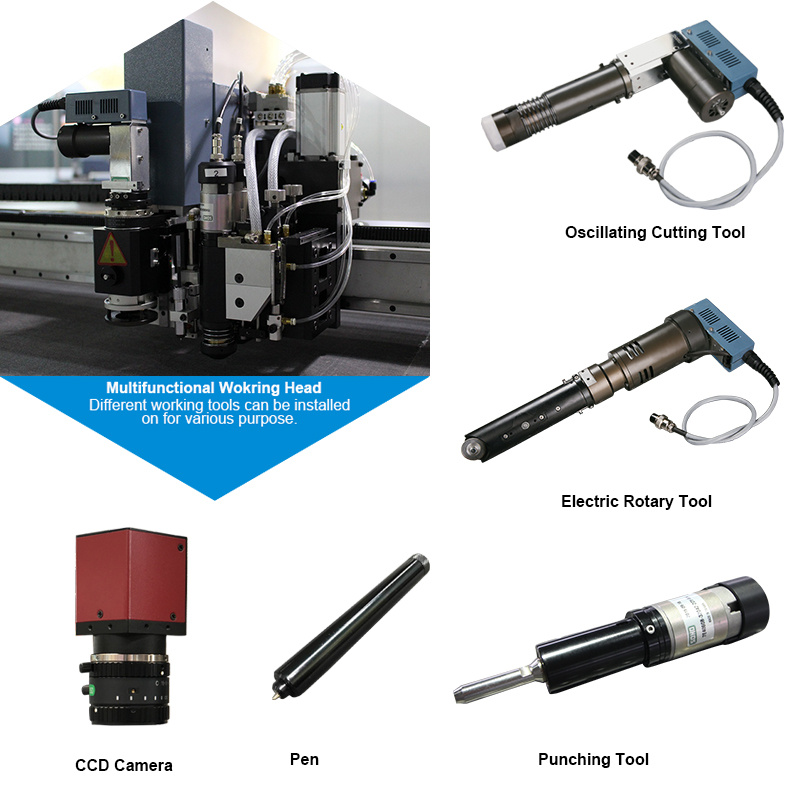

Tools and Functions of CNC Cutting Machine

1. Oscillating knife
 It is fast, accurate and no burning nor smell.

2. Electric Rotary Tool
 It's more fast and low noise.

3. Punching Tool
 This is special for punching when it comes to materials like leather shoes, leather belts, complex materials
 and so on.

4. Drawing Pen
 With gel pen, mark pen, ball pen, silver pen.

5.CCD Camera. It's professional for positioning for print materials. Automatic and precise.

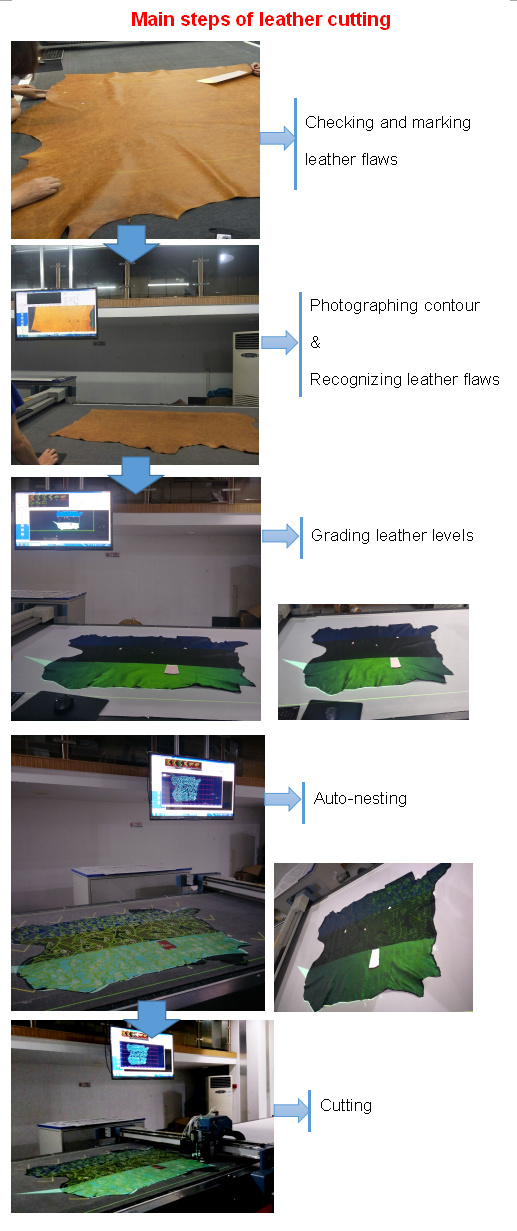

Cutting Samples and Main Steps of Leather Materials Cutting

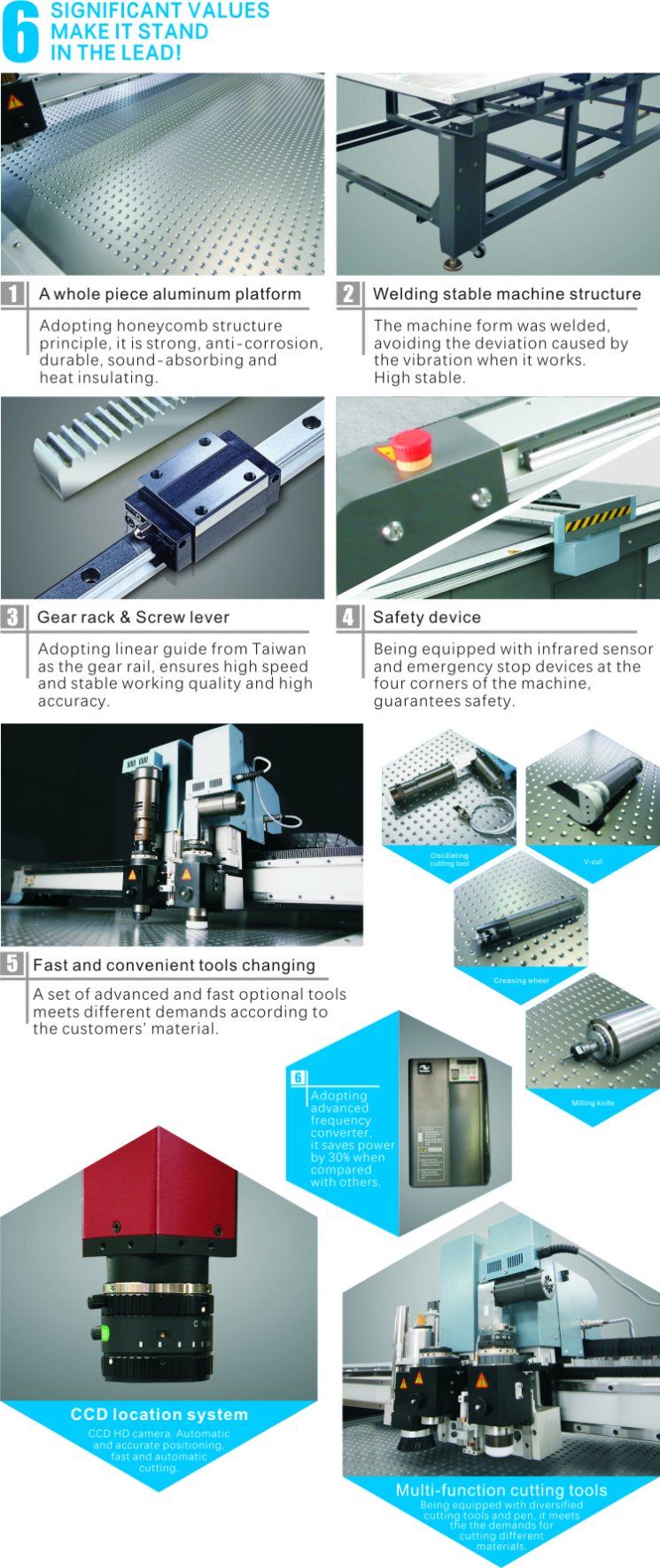

Our Advantages of Leather Cutting Machine

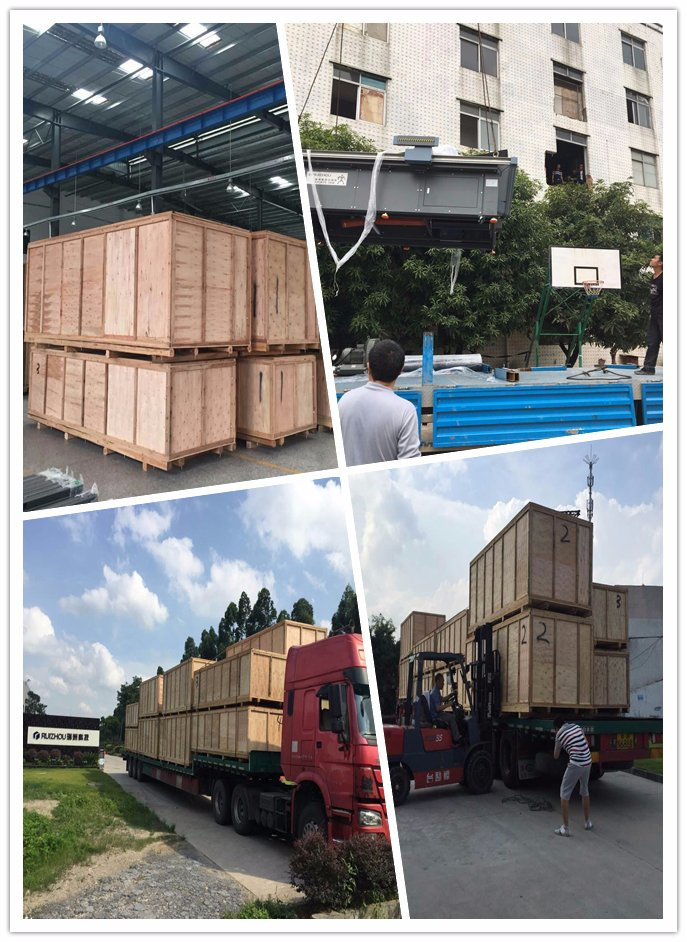

Packaging of Our CNC Cutting Machines

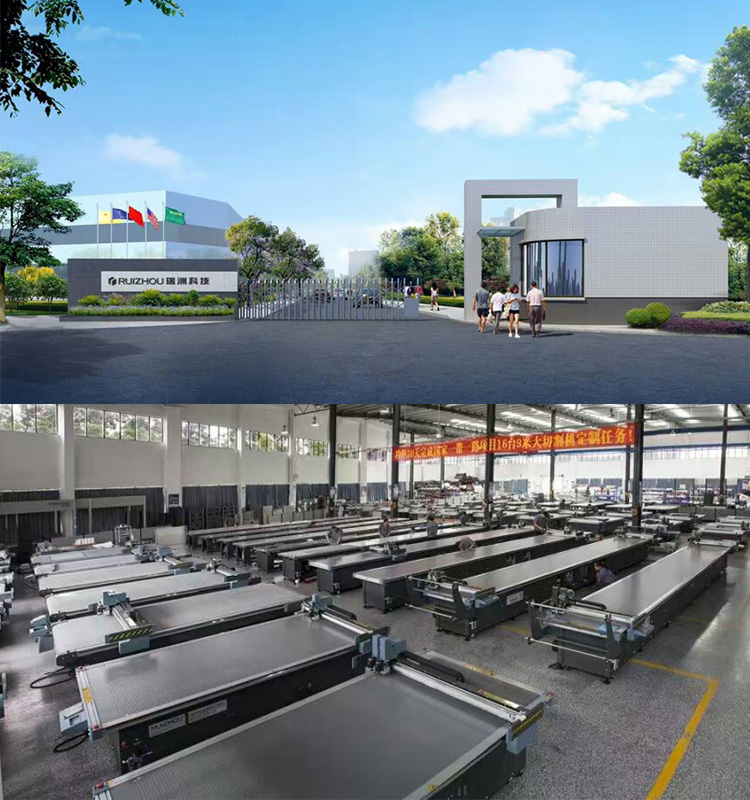

Factory Show

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.



Related Products

Item NumberWorking Area
RZCUT5-1007E1000X700MM
RZCUT5-1510E1500X1000MM
RZCUT5-2516E2500X1600MM
RZCUT5-2516EF2500X1600MM
(with automatic feeding shelf)
RZCUT5-3016E3000X1600MM
RZCUT5-3016EF-2H3000X1600MM
(with double cutting head )
RZCUT5-3616E3600X1600MM
RZCUT5-3616EF-2H3600X1600MM
(with double cutting head )
RZCUT5-3625E3600X2500MM
RZCUT5-3625EF3600X2500MM
(with automatic feeding shelf)
RZCUT5-3625EF-2H3600X2500MM
(with double cutting head )
RZCUT5-4016EF4000X1600MM
(with automatic feeding shelf )
RZCUT5-6016EF6000X1600M
(with automatic feeding shelf)

Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.

Note
Please contact with us for an accurate price;
It will be appreciated if you could kindly advise us your requirements in details!


Ruizhou Technology Co., Ltd., specializes in the development and application of digital cutting plotter and related CAD/CAM software for such industries as footwear, garments, suitcases & bags, lamps and autos. Located in Foshan City, China, our company is a high-tech enterprise which integrates the development, manufacture and marketing & sales of flat computerized cutting plotter and related mechanical-electrical products.

Guided by the corporate motto "we strive for what you demand", Ruizhou teams have, for the past decades, continuously made progress both technically and intellectually. And the corporate spirit "The Client Comes First and Striving Constantly For The Better" has been fully expressed in the development of digital cutting plotter and RZCAM/CAM software. We meticulously select every component for our products and attach great importance both in functions and appearance of our products. In addition to the acquisition of several patents as Chinese practical new-tech products and designs, Ruizhou, being accredited by ISO9001: 2000, is also granted the title of "Private High-Tech Enterprise" by the Department of Science and Technology of Guangdong Province.

With reliable technological supports, reasonable prices, excellent and prompt service, and efficient management as cornerstones for progress, Ruizhou serves clients with great sincerity, making its way into world market with quality services, establishing brand with credibility and striving for the best so as to win the trust and recognition of clients. Our current markets include South Korea, Indonesia, Mexico, Malaysia, Vietnam, as well as Hong Kong and Taiwan region, our products have been well received by numerous enterprises and designing institutes from across the world.

Ruizhou is waiting for you in the new IT era!
