Multi-Structure Multi-Function Smart Mobile Shelving Intelligent System /Shelf

Prod Model:	YJZ-050
HS Code:	73089000
Certification:	ISO9001/ISO14001/ISO18001
Usage:	Bank, Office, Government, School, Institute, etc.
Delivery:	15-30 Days
Size:	L900*D550*H2500/PC
Layer:	6 Layers
Color:	Light Grey, Putty, White, Black, Beige

Product Description

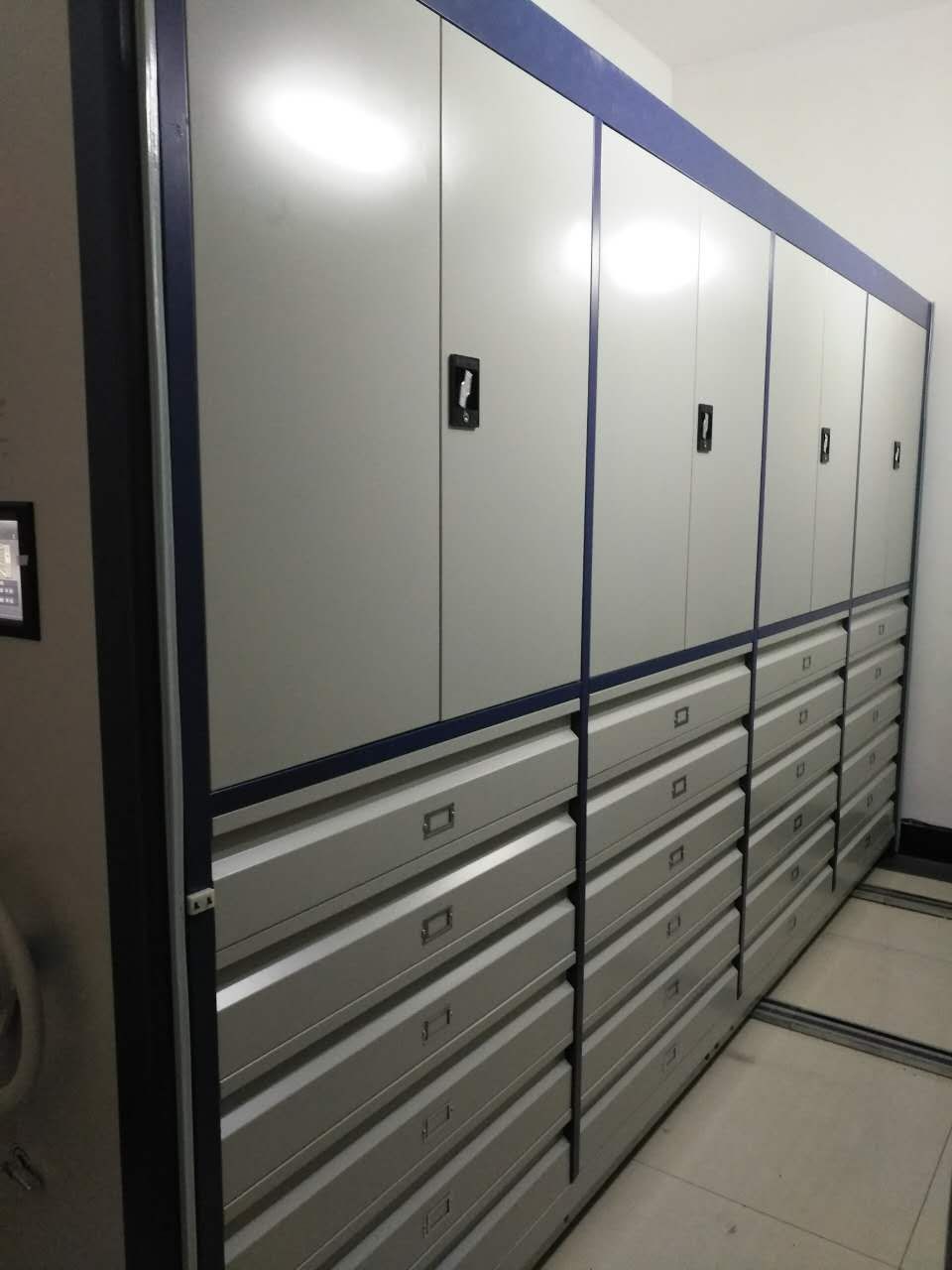

Multi-structure Multi-function Smart Mobile Shelving Intelligent System /Shelf

Functional Structure:

Smart shelves (Electric shelves) products using high-quality cold-rolled steel modeling. Base the overall welded together to fight the rack body double column insertion structure between the section and the section with the peg board separated by column in a hanging hole. Hanging plate buckle hanging hole hung on pillars, shelf placed on the peg board under along the bending and anchored in the hole of the peg board buckle. Each layer is a whole shelf. The space between the shelves can be adjusted up and down. The seperate rods spaced between each section of double-sided. Side panels use uneven rounded shield new technology.

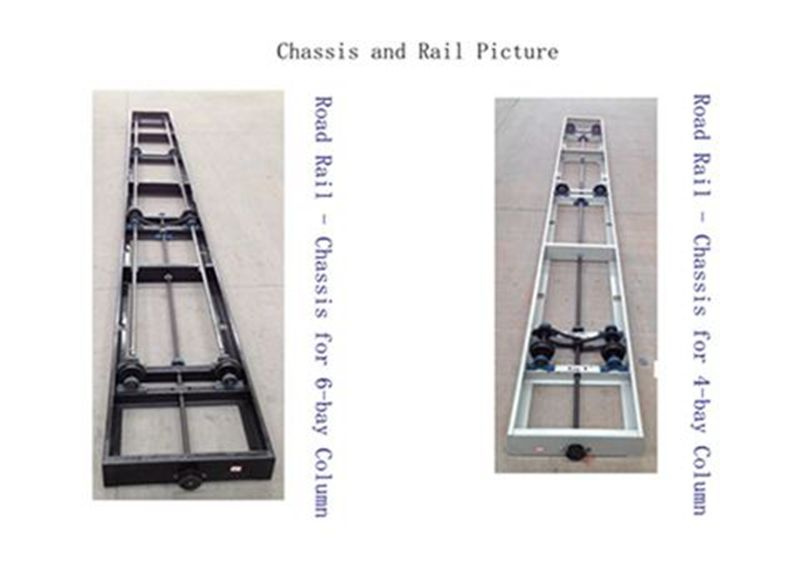

The contact surface between the frame body equipped with a buffer, a magnetic sealing strip top dustplate, the bottom mouseproof apparatus. Each column of the frame body has a safety limit brakes and anti-tip device. Side frame fitted with locks for the whole locking. Transmission mechanism through a finishing process, the use of precision bearings, flexible and smooth transmission. Laminates are free to adjust spacing according to need.

Yuanjin Group production Smart Shelves, development and production of national standards based on National Archives of DA/T7-92 File Shelves industry standards and GBT1366.3 Bookds Shelves for organs, enterprises and institutions library books, fileroom, sample room to store books, files, financial documents, goods, compared with the traditional bookshelves, shelves, file rack, large memory capacity and more systemaic.

The intelligent computer Shelves set of manual , electric and computer control in one photoelectric mechatronics Shelves. It has advanced, versatile, easy to operate composed by three parts of the computer control systems, electronic control systems and mechanical drive control system, the leading domestic technology. Each of the three parts of the system independent, and protect each other. And humanized design concept, the intelligent control system and network management mode based to achieve macroeconomic automation control, auto-body protection, environmental regulation, the orderly management of a disorderly storage, and guide data extraction and network the sharing of information resources.

Features:

1. The industry's first use of a mature low noise, no spark, maintenance-free 24V brushless DC motor drive, the regular replacement of brush the previous DC servo motor troubles completely resolved in the case of dnsuring the safety of persons and equipment.

2. Full of high-quality voice operation promted.

3. Completely collision-free operation: smooth start, run fast, gentle closed.

4. The operation is simple, practical, intuitive software operating graphical image.

5. Smart lighting: Shelves open when the lights turn on, shut down automatically extinguished. Alone computre-controlled lighting (which is convenient for some special applications) Open Shelves Close state.

6. Shelves unmanned automatic shutdown and automatic ventilation. And can operate offline.

7. Mobile columns 5.7 inch LCD with touch nice.

8. Solid moving column 10.5 inch color LCD with touch display (optional).

9. Query any column in any area to store the file can be in any of the columns on the LCD screen and open operation.

10. The anti-surge and anti-static design design makes it even severe instability in the voltage the rural or dry winter, but also to ensure the reliable operation of the system.



FAQ

1.How to save space with High Density Shelving?
Compared to ordinary bookshelf or file cabinet, there is no aisle between the density shelving rows. It is completely closed when it leaved unused. if you want to use it, only handle the wheel or push the smart control system, the shelving will open as you will, besides space saving, High density shelving have a advantage of anti-dust.


2. Is it convenient to visit Jinhan Factory?
You are definitely welcomed to visit our factory, Our plant location is in Jiangxi Yichun city which is also near to the Nanchang Changbei airport. Once you landing Nanchang, leaving the rest to us.


3. What kinds of features should we focus on when choosing steel cabinets?
Project solution presented in time, Can be customized as customer demand, Strictly quality control by the engineers etc.


4. Compared to other companies,what's Yuanjin advantage?
Yuanjin is a manufacturing steel furniture company, we have reasonable price and good service. also our engineers can supply project design timely and superior, besides, we pay attention to develop new products like the smart movable shelving is 2015 new products.
