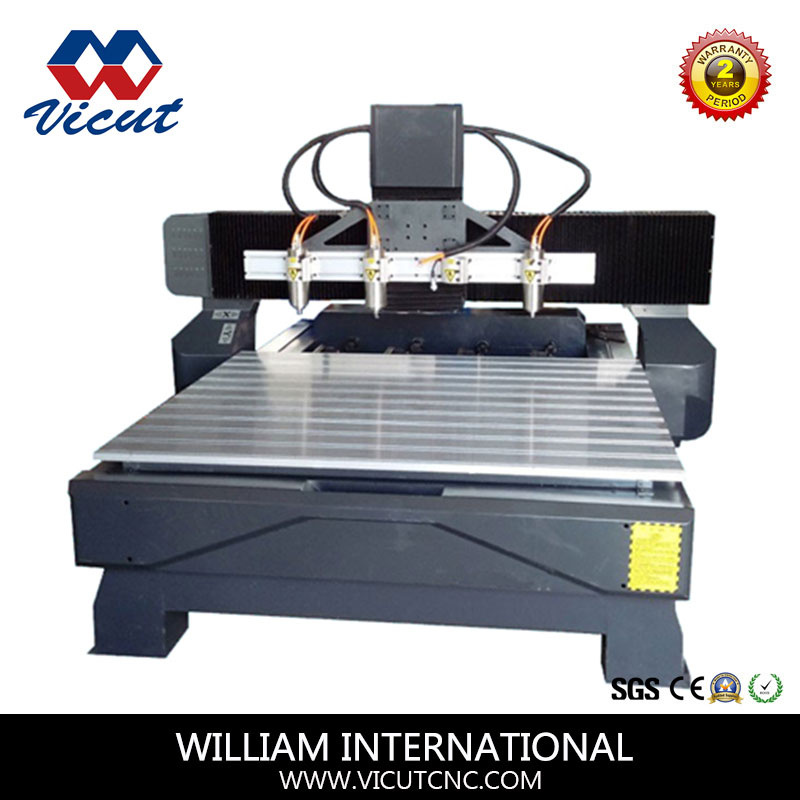

Multi-Spindles Woodworking CNC Wood Machine (VCT-1525FR-4H)

Name: Multi-Spindles Woodworking CNC Wood Machine (VCT-1525FR-4H)
Brand: thisfurniture.com
SKU: 724384555
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 5900-17700/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	VCT-1525FR-4H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2d Working Size:	1500×2500×180mm
Spindle Power:	Water Cooling 1500W×4PCS
No. Of Rotary:	4 PCS
Rotary Transmission:	Gear Box (Reduction Rate: 1:25)
3D Rotary Working Size:	2000mm(Length)*250mm(Rotary Diameter)
Air Cylinder Support:	Yes (300mm Long Air Cylinder)
Xyz Transmission:	Xz Ball Screw, Y Gear Rack
Guiding Rails:	Xyz Imported Linear Square Rails
Max Engraving Speed:	8000mm/Min
Spindle Speed:	6000~240000rpm
Spindle Layout:	Spindle Underneath
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	ISO
Spindle Number:	Mutil-Heads

Product Description

Hot-Sale CNC 3aixs/4axis Engraving Machine (VCT-1525FR-4H)

>>Features:

1. Heavy duty machine body, thick steel tube welding structure, ensures stable work and high accuracy.

2. FR series CNC router is professional in making 2D and 3D engraving jobs. Multiple spindle and rotary axes can process on cylinder materials as well as flat ones with high efficiency.

3. Use power mill software to make special design for realize 4 axis (XYZA) movements at the same time.

4. Max. Z axis plate width is 900mm, ensures the balance during working to avoid vibration.

5. Big size with more heads (up to 16 heads) can be customized.

>>Applications:

Material: engraving and cutting wood sheet, PVC, ABS Sheet, aluminum sheet, brass, etc.

Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.

>>Technical Parameters:

Model	VCT-1590R-4H	VCT-3510R-4H	VCT-2512R-6H	VCT-2013R-6H
Max. Rotary Diameter	150mm	350mm	250mm	200mm
Max. Rotary Length	900mm	1000mm	1200mm	1300mm
Spindle Power	1500W × 4PCS	2200W × 4PCS	2200W × 6PCS	2200W × 6PCS
No. Of Rotary	4PCS	4PCS	6PCS	6PCS
Motor Driver	Hybrid Servo Motor	Panasonic Servo Motor (total 5sets)
Rotary Transmission	Belt Transmission	Gear box (reduction rate: 1:25)
XYZ Transmission	TBI Ball Screw for XYZ axis	TBI Ball Screw for Z axis, High precision Gear Rack for XY axis
Max Engraving Speed	12000mm/m	15000mm/minute
Air Cylinder Support	Yes (300MM long air cylinder)
Oil Lubrication system	Yes
Tool Diameter	4,6, 8, 12mm
Body Structure	Thick steel tube welding
Guiding Rails	XYZ Taiwan Linear Square Rails
Reposition Accuracy	<0.03/300mm
Spindle Speed	6000~24000rpm
Controller	95A model 4 axis NC Studio Controller with handle wheel ( PC control )
Format of instructions	G code or HPGL
Voltage	380V/60Hz or 220V/50HZ
Weight	600KG	2500KG	2100KG	2000KG
Packing size(LWH)	1485x 1300x1750mm ( 3.38CBM)	4200x2200x2200mm (20CBM)	2700×2200×2200mm (13.1CBM)	2700×2200×2200mm (13.1CBM)

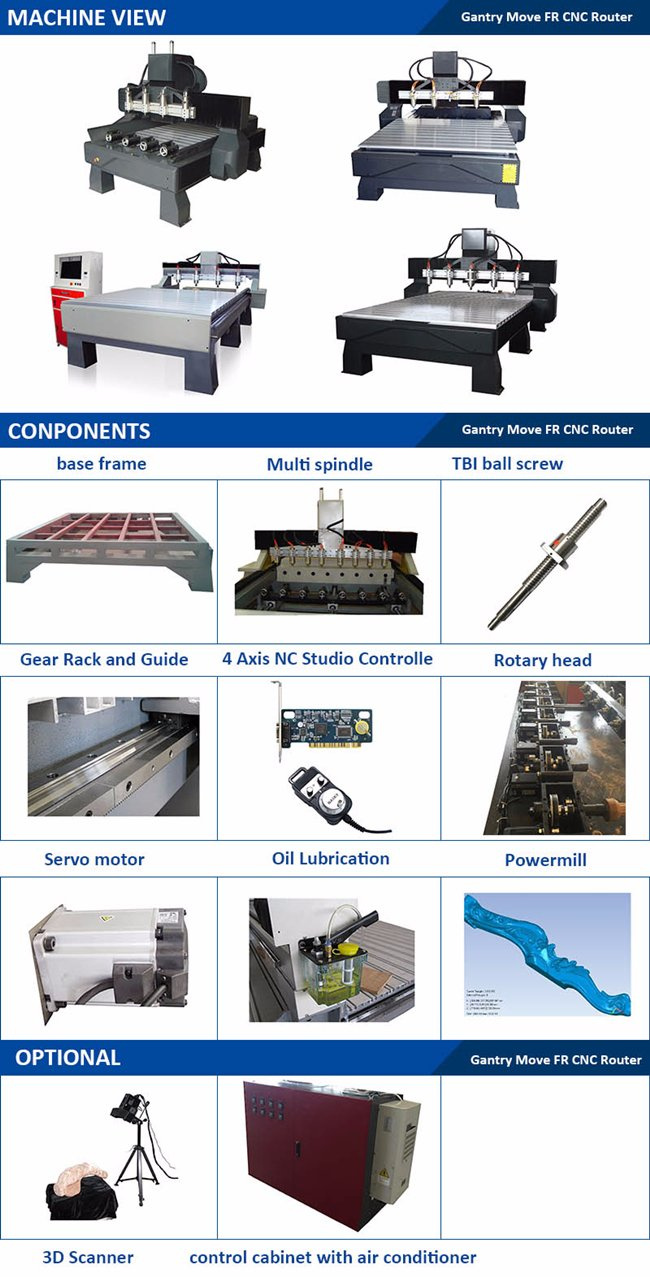

>>Detail:

1. Base Frame: The heavier base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.

2. Multiple Cooling Spindle: Multiple spindles for mass processing on solid wood, MDF, acrylic, aluminum and plastics, etc; we offers different spindle options which available with 220V-2 Phase-50-60Hz or 220V-3 Phase-50-60Hz or 380V, 3Phase-50-60Hz. Tools diameter are 3.175mm, 4mm, 6mm, 8mm and 12.7mm.

3. Ball Screw: High accuracy ball screw for Z axis, quality TBI Anti-Backlash center driven ball screws with 25mm or 40mm diameter and 0.01mm repositioning accuracy. The combination of ball screw and gear rack offers accuracy and high speed machining.

4. Gear Rack and Linear guide: We use precision gear racks for XY AXIS, PMI linear guide rails for XYZ axis, carefully installed and regulated by experienced worker with special purpose instrument, and this assures smooth motion and long term reliability.

5. NC Studio 4 AXIS Controller: 85A model. PC based NC Studio Controller with friendlier
Human& machine interface/HMI, fully executed with computer. It well realizes high-speed and high-precision motion control. Handle wheel can be used to control the movement of machine.

6. Rotary Axis: Available with different cylinders, irregular objects, crutch and cylinder crafts with various diameters; we can put different number of rotary axis according to specified requirement.

7. Motor and Driver: We use high accuracy stepper/servo motor drivers for small size rotary machine; each stepper motor supports each rotary device. For big size machine, we use 6 sets of Panasonic servo motors and drivers, including 2 sets support 8 rotary, 2 motors for Y axis, 1 motor for X axis, 1 motor for Z axis.

8. Central oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.

9. Control Cabinet: All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.

10. Processing Software: You can use power-mill software to make processing of 3D files
, which was scanned with 3D scanner. We can make 4 axis movements. (AXYZ axis
moves at the same time).

More Details Call:

+8615811492558
Niki Zhao

CNC Engraving and Cutting Solution Provider

WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.

With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.

Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.

Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.

Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.

Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
