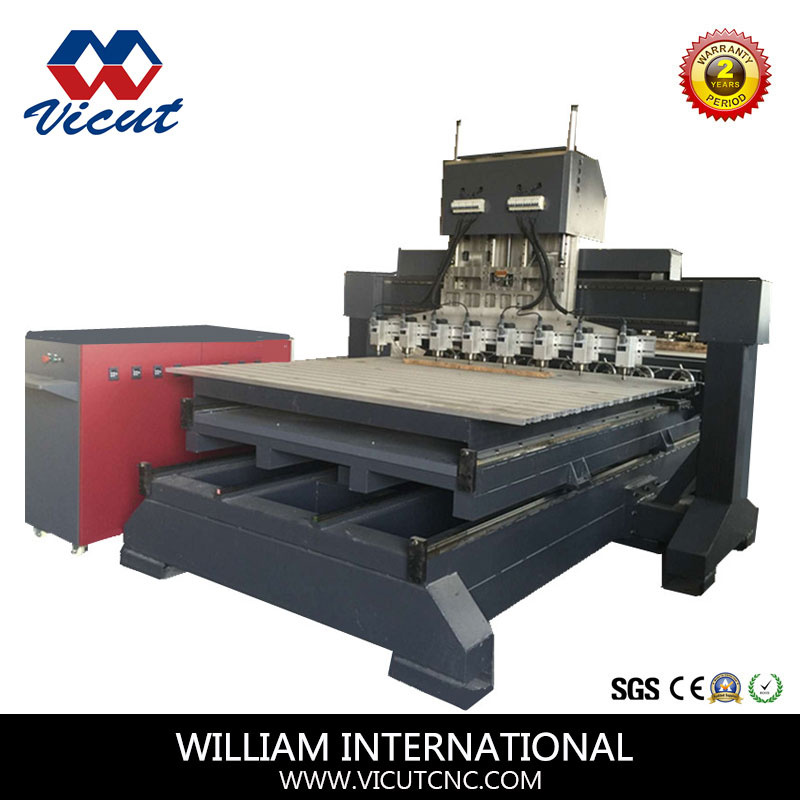

Multi-Function CNC Woodworking Machine Wood Engraving Machine (VCT-TM2515FR-8H)

Multi-Function CNC Woodworking Machine Wood Engraving Machine (VCT-TM2515FR-8H)
Price: US $ 12000-36000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: VCT-TM2515FR-8H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
2D Working Size: 2500*1500*250mm
3D Rotary Working: 1100mm(Length)*250mm(Rotary Diameter)
Spindle Power: Water Cooling 2200W×8PCS
No. Of Rotary: 8 PCS
Motors: Xyz Axes Use Panasonic/Schneider Servo Motor
Air Cylinder Support: Yes (300mm Long Air Cylinder)
Oil Lubrication System: Yes
Body Structure: Thick Steel Tube Welding
Guiding Rails: Xyz Taiwan PMI Linear Square Rails
Controller: 4 Axis Nc Studio Controller with Handle Wheel
Spindle Layout: Vertical
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: ISO
Spindle Number: 8 Heads

Product Description

Multi-Function Wood Router Wood Cutter Machine (VCT-TM2515FR-8H)

Features:

1. Using fixed-frame gantry column, with cement inside the steel tube, table move working mode instead of gantry move, ensure more stable and less vibration.

2. Adopted heavy-duty industrial seamless welded design, construction and welding anti-deformation finite element method, and low-temperature annealing by the CNC to ensure optimum strength and rigidity.

3. Configuring multi-adjustable machine feet touch the ground, easy to adjust the balance of the machine

4.  This machine has two general functions: 2D engraving & cutting on panel material and 3D rotary engraving column material.

Applications:

Material: engraving and cutting wood sheet, PVC, ABS Sheet, aluminum sheet, brass, etc.

Field: Mostly used for making antique furniture, Mahogany furniture, European style furniture, doors, windows, stairs, handrails, Buddha, kitchen cabinet, bookcase, etc.

Technical Parameters:

ModelVCT-TM2515FR-8HVCT-TM2523FR-10H
Dimension3000×1900mm(9.8'x6.3')3000×2700mm(9.8'x8.9')
2D Working Size2500×1500×250mm(8.2'x4.9'x0.8')2500×2300×250mm(8.2'x7.5'x0.8')
Spindle  PowerWater cooling  2200W×8PCSWater cooling  2200W×10PCS
No. Of  Rotary8 PCS10 PCS
Motors & DriversXYZ axes use Panasonic/Schneider servo motor, A axis use Leadshine hybrid servo
Rotary TransmissionOne hybrid servo motor drive one rotary with Belt box transmission
 ( Gear box transmission is optional)
3D Rotary Working Size  1100mm(length)*250mm(rotary diameter)2000mm(length)*250mm(rotary diameter)
Air Cylinder SupportYes (300MM long air cylinder)
Oil Lubrication systemYes
Tool Diameter4/6/8/12mm
Body StructureThick steel tube welding
XYZ TransmissionXYZ TBI 4010 ball screw
Guiding Rails                   XYZ Taiwan PMI Linear Square Rails
Reposition Accuracy<0.03/300mm
Max Engraving Speed15000mm/m
Spindle Speed6000~240000rpm
Controller4 axis NC Studio Controller with handle wheel
( Use computer to control the machine)
Format of InstructionG code or HPGL
Voltage380V/60Hz or 220V/50HZ
Weight3000KGS3500KGS
Packing Size3000×2200×2200mm(15CBM)3000×2200×2200mm(15CBM)





CNC Engraving and Cutting Solution Provider

WILLIAM CNC is a Chinese manufacturer of CNC router, Laser marking machine, label cutter, flatbed cutter, and cutting plotter, having its own manufacturing base and official license for export & import business. Our brand (VICUT) focuses on overseas market, to provide the customer CNC machinery with an affordable solution without sacrificing options or function.

With our CNC router or laser marker, you can cut, carve, or mark on many kinds of materials, such as wood, acrylic, metal, stone, foam, glass, plywood, MDF, PVC, ABS, etc. With our flatbed cutter, label cutter or cutting plotter, you can make digital cut on vinyl adhesive, reflective film, craft paper, sandblast membrane, stickers, cardboard, plastic board, rubber sheet, marking film, PET, PP, PVC, PC, wall paper, coated paper, glossy paper, paper jam, etc.

Remember that each solution can be customized for your particular needs. So no matter what you cut, engrave, or mark, we can configure a machine to suit your applications and budget. We also welcome overseas agents to join the growing families of VICUT.

Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.

Product: We produce CNC engraving and cutting machinery, such as CNC router, laser marking machine, label cutter, flatbed cutter, cutting plotter. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.

Team: We have two workshops in Hefei city, Anhui province. 200 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 20 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 20 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.

Quality Assurance: Strict whole process quality control and management during procurement, manufacturing, packing, and shipping. Cooperate with top suppliers of CNC spare parts in the world, such as Italy HSD, Japan Panasonic, Taiwan Syntec, Taiwan PMI, TBI, France Schneider, Dragoncut software, etc.

Transportation: Welcome to visit our company. By fast train, it takes about three hours from Shanghai or Qingdao, two hours from Wuhan, one hour from Nanjing. By plane, needs less than 2 hours from Beijing or Guangzhou. Any port in China can be used for shipment, and Shanghai or Nanjing port is more closed to our factory.
