Prod Model: |
Mt1800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Metal |
Type: |
Medical Table |

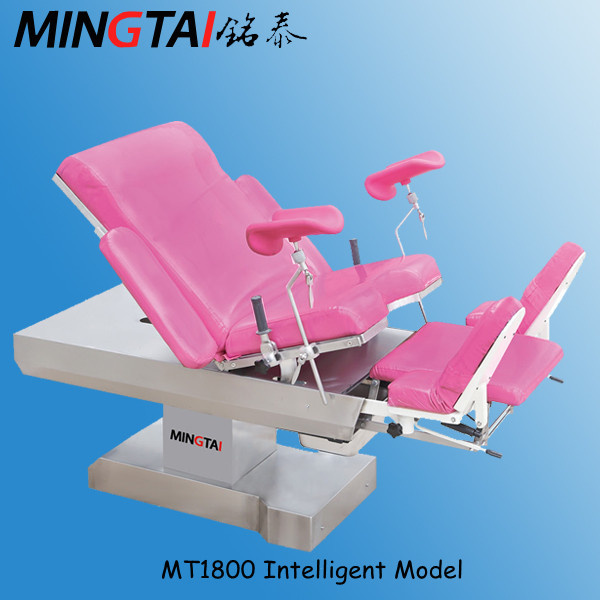

Product Description
![](/proimages/44f3j00GtHETfYgGarR/mt1800-cosy-electric-multifunction-gynaecology-obstetric-operation-table-with-ce.jpg)
Technical parameter
Bed length: 1900mm± 50mm
Bed width: 620mm
Bed surface slants up and down from front to rear: ≥ 20°
Buttocks lifts up: ≥ 15° (optional)
Back side lifts up: ≥ 75°
Auxiliary station table board: Length: 550mm, width: 550mm
Hand put board outward swaying angle≥ 90°
Bed surface lifts up and down: 650-950mm
Pedal outward swaying angle: 0° ~45°
Pedal lifts up: 0° ~45°
Power, voltage: 220V 50HZ
Input power: 500VA
Features
1. Three motor multi function gynaecology obstetric operation table
2. LINAK Brand high quality linear motor imported from Denmark
3. Whole boday use 304 stainless steel
4. Hip board lifts up
5. Embedded auxiliary leg board, large dirt basin
6. Luxury angle adjustable pedal
7. Foot handle electric switch
1. Use imported motor(electric push rod), mini touch control handling, the function up and down, back side angle and front and rear slanting angle all use motor, press the switch lightly, it can adjust every part steady
2. Soft mattress, high quality medical use PU, formed once by polyurethane
3. Use high quality 304 stainless steel, surface by special technology processing electrostatic coated plastic high temperature 250 degrees baking processing and layer polylit paint, can lasting using, and beautiful generous and texture comfortable and clean convenient
4. Main up and down stand column: German design, Bearing with a safety factor of four times, square column lifts up and down, Eight fixed fasteners, ensure the weighing steady
5. Embedded auxiliary device do not occupy space, extraction or striction is very easy, it also can hold devices when suture, support doctor's elbow, improve the steady of the clinical
6. It is convient to install and dismantle, the projecting pedestal let doctors approach delivery woman, increase the convient of the clinical and can use large dirt bucket
7. ABS, Pedestal, up and down column's outer formation all use stainless steel, antifraying, corrosion resisting, easy to clean and disinfection
8. Be equipped with luxury pedal, convient for differt part when delivery.
