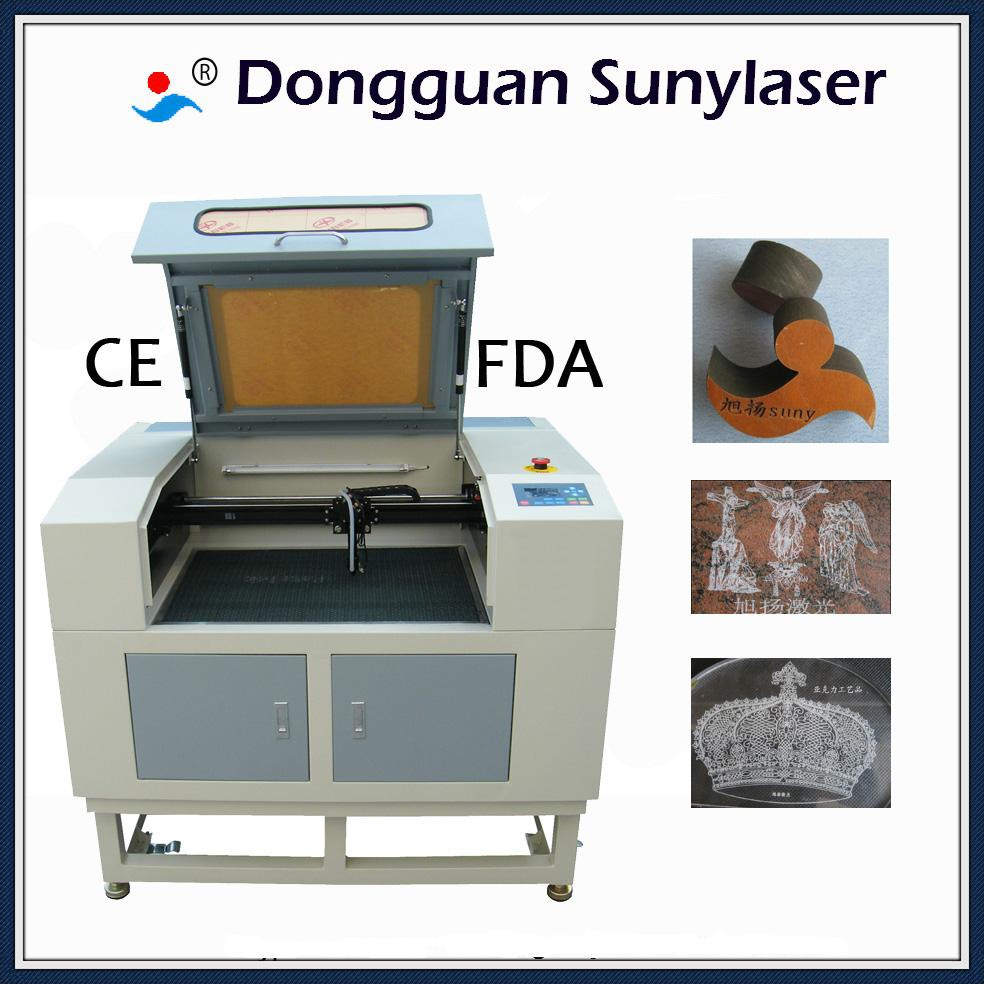

Motorized Worktable Laser Engraving Machine for Granite 60W/80W

Motorized Worktable Laser Engraving Machine for Granite 60W/80W
Price: US $ 2000-3800/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SUNY-960
Working Area: 900*600mm
Laser Power: 60W/80W/100W/130W/150W
Laser Tube Lifespan: 10000hours
Machine Size: 1450*1160*1130mm
Machine Weight: 220kg
Color: Any
Certificate: Ce FDA
Speed: 800mm/S
Lead Time: 5 Working Days

Product Description

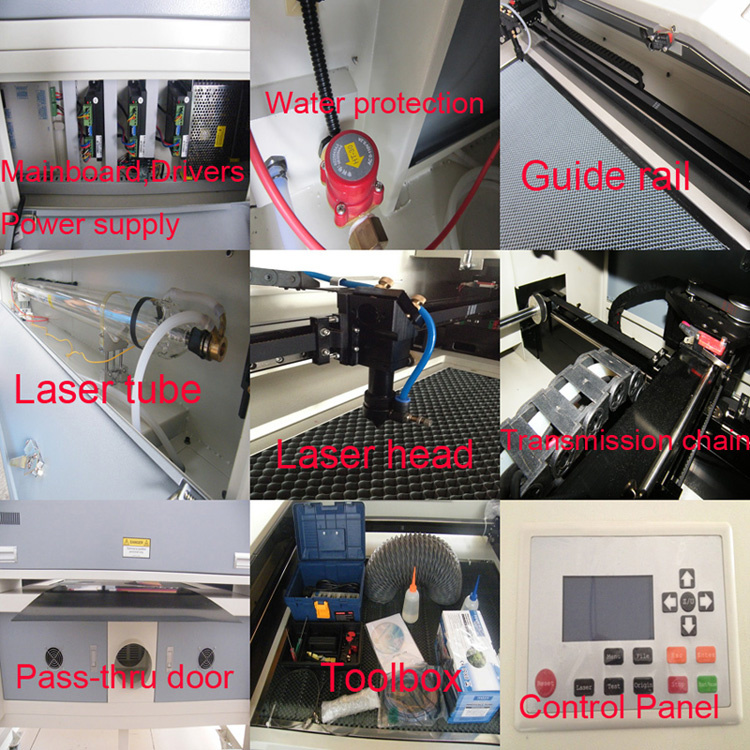

Detailed configuration:
A. United States imported fully stepper motor and drive systems
B. SUNYLASER control system
C. Foreign imports in six balanced linear guideway
D. Dual transmission of USB2.0
E. Chines,English, German LCD, Humanity button panels
F. Homemade CO2 laser tube
G. Optical system uses laser Singapore imports all lenses
H. High strength stainless Rail cellular integration backplane
I. Chassis integration structure
J. Support U-download data

Detailed functions:
1. Cut optimal cutting path, the shortest path can work, save time, improve efficiency
2. Chines,English, German big-screen LCD display, users can randomly access to stored documents, human convenient
3. System transfer graphics data, a simple layout editor (such as zooming and rotating, reproduction, etc.
4. Output data can be layered on each floor can separate definition output, the output speed, laser approach (sculpture, cutting), and the definition of parameters for each automatic preservation.
5. The images can be carved, right vector for line drawing, cutting and engraving, sculpture and accuracy can be erected.
6. USB data transmission, but also U-operation, can work off-line, easy to operate, fast.



Specifications:

Control system:

DSP control system

Laser type:

Sealed CO2 glass laser tube

Working area:

900*600mm(35.44*23.62inch)

Work platform:

Honeycomb platform

Laser power:

60w/80w/100w/130w/150w

Pass-thru doors:

Allow to cut extremely long materials(max thickness 40mm)

Interface:

USB connection ( Work in Windows XP, 2000,Vista,7)

Memory:

64Mb Buffer Memory

Driver system:

Stepper motor

Auxiliary equipments:

Exhaust-fan, air-exhaust pipe

Laser Tube life hours:

10000 Hours

Repeating precision:

±0.05mm

Moving system:

CNC controlling units

Cooling mode:

Water-cooling and protection system

Max speed:

800mm/s

Working voltage:

AC110/220±10% 50/60Hz

Whole power:

<1250W

Operating temperature:

0-45°C(32° - 113° F)

Operating humidity:

5%-95%

Controlling software:

Original sunylaser software

Graphic format supported:

BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2,

JPC,PGX,RAS,PNM,SKA,RAW etc

Compatible software:

Auto CAD, CoreIDraw X2/X3/X4, photoshop etc

Resolution:

4000DPI

Machine dimension:

1450*1160*1130mm

Packing dimension:

1550*1250*1250mm

Net weight:

220kg

Gross weight:

280kg

Packing:

Plywood case



Standard accessories:

1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)

2) 1×Exhaust fans with Tube ducts (install inside machine)

3) 1×Water pump/Industrial chiller(cool the lase tube)

4) 1×Water protection(make sure the water cycle is normal)

5) 1×USB Cable (connecting PC and laser)

6) 1×DVD (including software, user manual, guiding videos etc)

7) 2×Power cables

8) 1×Tool box

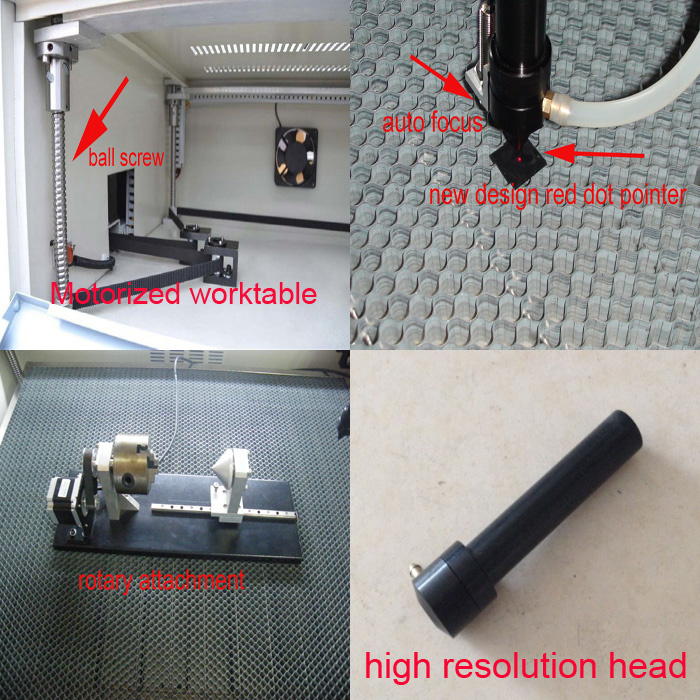

Optional accessories:

1) Motorized up and down worktable(used to engrave thick materials).

2) High resolution(for engraving extremely high quality photos, even 3D photos).

3) Rotary (for engraving round items).

4) Auto focus(help to get the best focus distance).

5) New red dot design(make the laser beam visible).

6) High pressure air compressure set(used to cut thick materials).



Shipping:
1) We will send the machine in 5 working days to your named seaport or airport.
2) We will arrange telex release for you or send original BL to you for customs clearance.
3) For shipping purpose, please tell us your phone number and detailed contact  information after you confirm the order.

Payment terms:
1) We accept LC TT and Paypal etc, if you want to use other ways, please advise us.
2) We will start to prepare your order after you make the payment.

After-sales Services:
1) If you meet any problem or have any question about the machine and software, please  feel free to contact us, we will help you to solve the problems as soon as possible.

Warranty:
1) The warranty of the whole machine is one year, the warranty of laser tube, mirror and lens is six months.
2) Laser tube, lens and mirror, in six months we will send you free replacement.
3) Other parts, in one years we will send you free replacement.
4) Mirror and lens, we will send you extra one lens and two mirrors for free with machine.
5) Beyond the date of warranty, we will charge you the replacements.
6) The warranty is dated from the date you received the machine.

Workable Materials:
Wood, Paper, Leather, Cloths, Organic glass, Plexiglass Resin, Acrylic, Woolens, Plastic, Rubber. Ceramic tile, Crystal,Bowler, Bamboo, Marble, Granite, Tile, Delrin, Doublecolor board, Glass, Painted metals, Anodized aluminum, EVA, etc.

 Engrave/Etch/Mark       Cut
Acrylic√
Delrin√
Cloth √
Leather √ √
Wood
Mat Board √ √
Melamine √ √
Paper √ √
Mylar √ √
Pressboard √ √
Rubber √ √
Wood Veneer √ √
Fiberglass √ √
Plastic √ √
Cork √ √
Corian √ √
Twill √ √
Anodized Aluminum √
Painted Metals √
Tile √
Glass√
Coated Metals √
Ceramics √
Marble √
Stainless Steel
Brass
Titanium
Bare Metal
