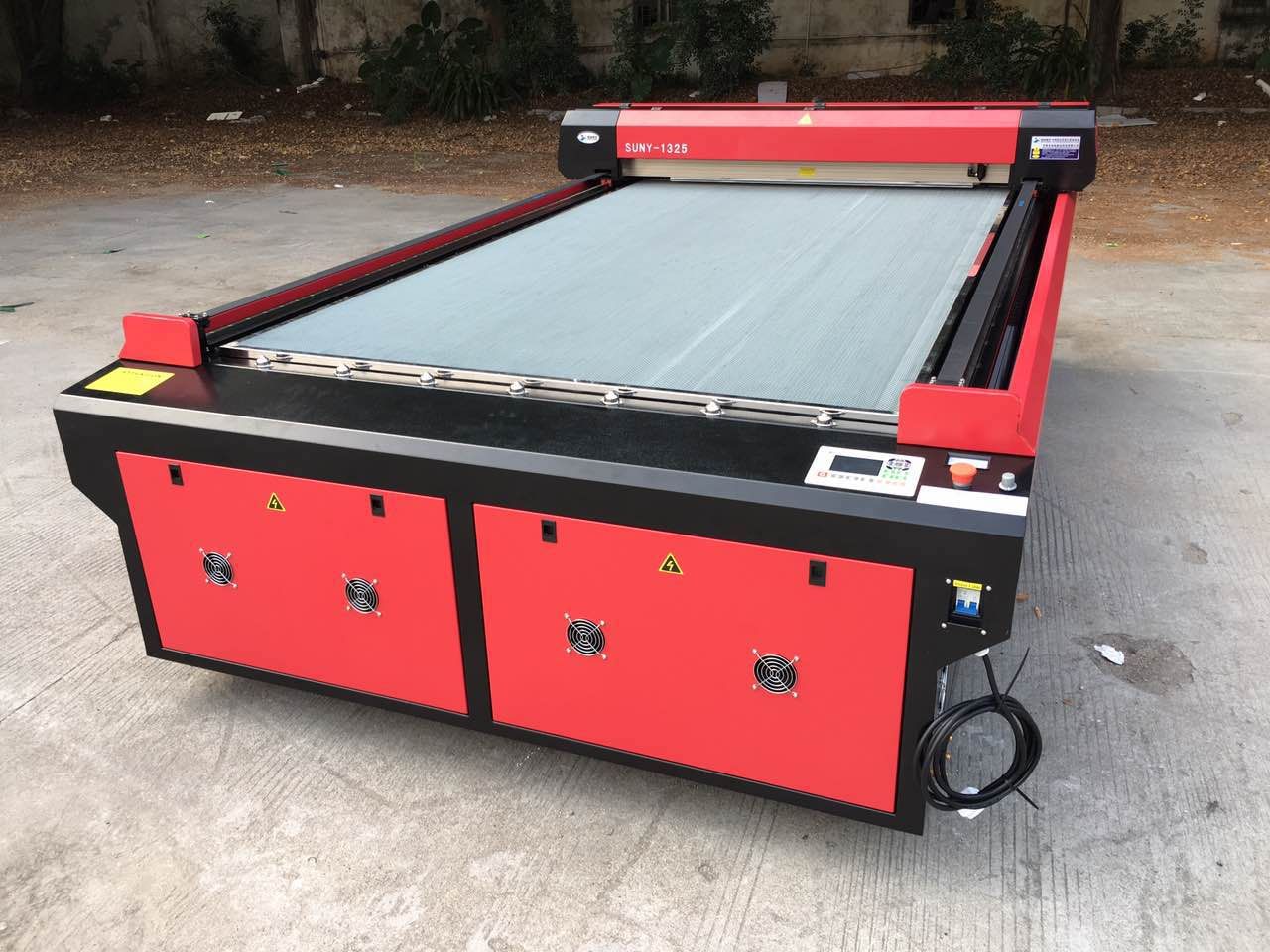

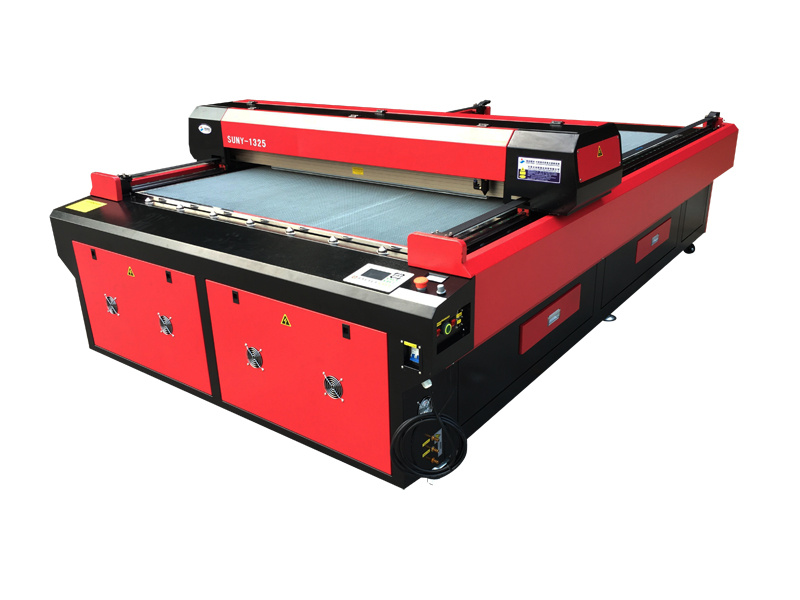

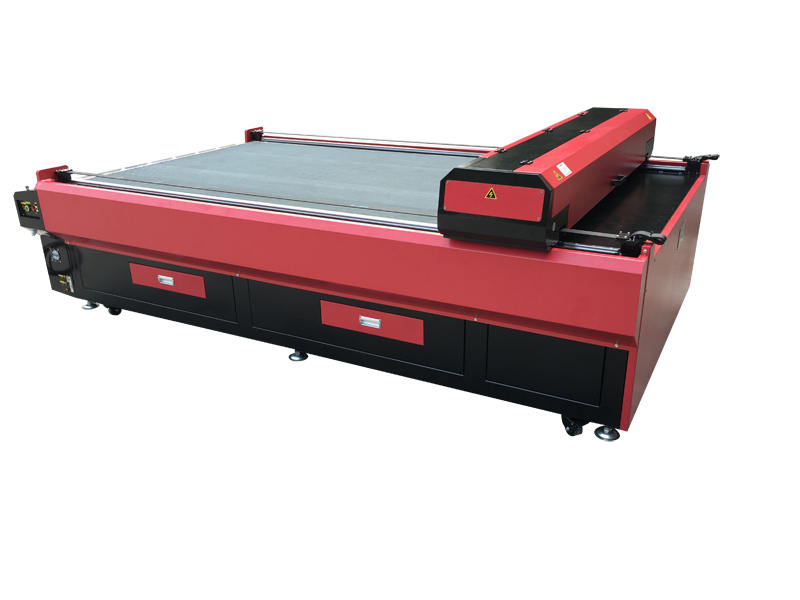

Fast Speed Suny-1325 Laser Cutting Bed for furniture

Fast Speed Suny-1325 Laser Cutting Bed for furniture
Price: US $ 3000-6000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SNUY-1325
Working Area: 1300*2500
Laser Tube Lifespan: 6000hours
Certificate: Ce FDA

Product Description





Specifications:

Control system:

DSP control system

Laser type:

Sealed CO2 glass laser tube

Working area:

1300*2500mm(62.99*39.37inch)

Work platform:

Honeycomb platform

Laser power:

80w/100w/130w/150w

Pass-thru doors:

Allow to cut extremely long materials(max thickness 40mm)

Interface:

USB connection ( Work in Windows XP, 2000,Vista,7)

Memory:

64Mb Buffer Memory

Driver system:

Stepper motor

Auxiliary equipments:

Exhaust-fan, air-exhaust pipe

Laser Tube life hours:

6000 Hours

Repeating precision:

±0.05mm

Moving system:

CNC controlling units

Cooling mode:

Water-cooling and protection system

Max speed:

600mm/s for engraving, 300mm/s for cutting

Working voltage:

AC110/220±10% 50/60Hz

Whole power:

<1250W

Operating temperature:

0-45°C(32° - 113° F)

Operating humidity:

5%-95%

Controlling software:

Original sunylaser software

Graphic format supported:

BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2,
JPC,PGX,RAS,PNM,SKA,RAW etc

Compatible software:

Auto CAD, CoreIDraw X2/X3/X4, photoshop etc

Resolution:

4000DPI

Net weight:

320kg

Gross weight:

1100kg

Packing:

Plywood case


Standard accessories:
1) 2×Air pumps/compressors for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans/Blower with Tube ducts (install inside machine)
3) 2×Industrial chillers
4) 2×Water protections(make sure the water cycle is normal)
5) 1×USB Cable (connecting PC and laser)
6) 1×DVD (including software, user manual, guiding videos etc)
7) 2×Power cables
8) 1×Tool box


Optional accessories:
1) Motorized up and down worktable(used to engrave thick materials).
2) High resolution(for engraving extremely high quality photos, even 3D photos).
3) Rotary (for engraving round items).
4) Auto focus(help to get the best focus distance).
5) New red dot design(make the laser beam visible).
6) High pressure air compressure set(used to cut thick materials).


Shipping:
1) We will send the machine in 5 working days to your named seaport or airport.
2) We will arrange telex release for you or send original BL to you for customs clearance.
3) For shipping purpose, please tell us your phone number and detailed contact  information after you confirm the order.

Payment terms:
1) We accept LC TT and Paypal etc, if you want to use other ways, please advise us.
2) We will start to prepare your order after you make the payment.

After-sales Services:
1) If you meet any problem or have any question about the machine and software, please  feel free to contact us, we will help you to solve the problems as soon as possible.

Warranty:
1) The warranty of the whole machine is two years, the laser tube's warranty is six months.
2) Laser tube, in six months we will send you free replacement, normally you always can use it for at least one year.
3) Other parts, in two years we will send free replacement.
4) Mirror and lens, we will send you extra one lens and two mirrors for free with machine.
5) Beyond the date of warranty, we will charge you the replacements.

Workable Materials:
Wood, Paper, Leather, Cloths, Organic glass, Plexiglass Resin, Acrylic, Woolens, Plastic, Rubber. Ceramic tile, Crystal,Bowler, Bamboo, Marble, Granite, Tile, Delrin, Doublecolor board, Glass, Painted metals, Anodized aluminum, EVA, etc.

Engrave/Etch/Mark
       Cut
Acrylic√
Delrin√
Cloth √
Leather √ √
Wood
Mat Board √ √
Melamine √ √
Paper √ √
Mylar √ √
Pressboard √ √
Rubber √ √
Wood Veneer √ √
Fiberglass √ √
Plastic √ √
Cork √ √
Corian √ √
Twill √ √
Anodized Aluminum √
Painted Metals √
Tile √
Glass√
Coated Metals √
Ceramics √
Marble √
Stainless Steel
Brass
Titanium
Bare Metal
Dongguan City SunyLaser Technology Ltd. Is a professional R & D, production, marketing light aircraft, -- the integration of high-tech equipment modernization joint ventures. An international manufacturing company is located in the city -- DongGuan City, Guangdong Province, relying on the PRD advanced light machinery, electronic products manufacturing and personnel superiority, committed to the transformation of high-tech achievements and laser industry development.

Company in Tianjin, Hebei, Jiangsu, Zhejiang, Shanghai, Xiamen and other cities with branches respectively. And in Russia, Vietnam, Cambodia, Bangladesh, Singapore and Europe to set up agency. Sunylaser since its inception has been adhering to the "excellence, honesty and trustworthiness, excellent progress, collaborative innovation, " the spirit of enterprise Through the tireless efforts of all personnel, sunylaser now owns several thousand square meter production base and built modern independent research and development centers and laboratories. Southeast Asia has become a major laser equipment manufacturing enterprises, and companies with RKB Germany, the United States cutting-edge, Japan Haight many companies and institutions of the country to establish a long-term, stable relations of cooperation. The company is the leading products of laser cutting machines, laser engraving machines, laser engraving machines, and laser cutting machine, Laser Marking Machine series laser processing equipment, which are widely used in clothing, leather, advertising, technology gifts, plexiglass, electronics, electrical appliances, Instrumentation, hardware, auto parts, clothing, wood, furniture manufacturer, model making, plastics, tobacco, packaging printing and many other fields.

National Product times further, and take advantage of modern science around the world, sunylasers to revitalize national industry responsibility, and is willing to join hands to people from all walks of life, To create a world-class national enterprises laser unremitting efforts!
