Modern Design Exchange Table of Fiber Laser Cutter for Sheet Metal
| Price: |
US $ 150000-180000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
EETO-FLX3015-3000W |
| Motor Driver: |
Bus |
| Control System: |
Beckhoff |
| Generator: |
Ipg(Gemany) |
| Annealing: |
Yes |
| Cutting Area: |
3000*1500 |
| Liner Guide: |
Tbi |
| Gear&Rack: |
Yyc |
| Lead Time: |
Within 40days |
| Cutting Thickness: |
0-20mm |
| Certification: |
Ce, FDA |
Product Description

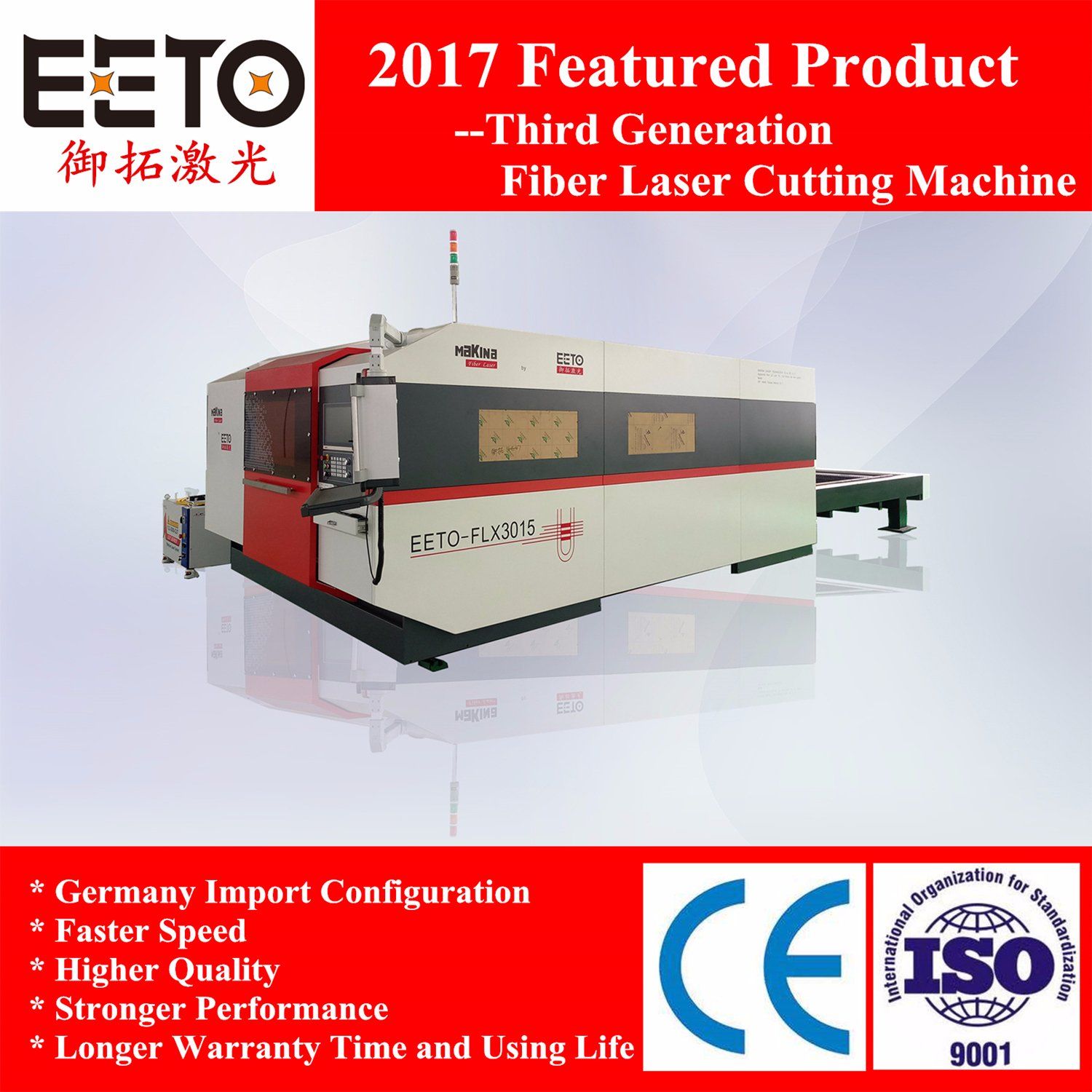

Modern design exchange table of fiber laser cutter for sheet metalProduct DecriptionEETO FLX-3015 fiber laser cutting machine which adopts gantry type structure and used advanced IPG laser generator. which output high energy density laser beam that focus on the work surface.The machine comes with high precision that imported ball screws and linear guide rails as transmission, imported Yaskawa servo motors with high speed, and it is widely used for cutting carbon steel, stainless steel sheets, aluminum alloy ,copper,brass,and other metals for processing industry.
Application IndustriesWidely used in electrical power,sheet metal processing, spaceflight, electronics, subway parts,
automobile manufacturing, electrical equipment, elevator equipment, advertising , lighting hardware, display equipment, metal products and other industries.
Parameter of fiber laser cutting machine | MODEL | EETO-FLX3015 | STRUCTURE | Gantry type |
| OUTPUT POWER | 3000W | DRIVEN STRUCTURE | Duel-driven |
| CUTTING AREA (L*W) | 3000*1500mm | DRIVEN MODE | Bus motor |
| MAX CUTTING THICKNESS | 22mm CS; 10mm SS | X AXIS STROKE | 3020mm |
| MAX CUTTING SPEED | 150m/min | Y AXIS STROKE | 1520mm |
| MAX ACCELERATED SPEED | 1.5G | Z AXIS STROKE | 130mm |
| POSITIONING ACCURACY | ±0.03 mm | COOLING | Water chiller |
| RE- POSITIONING ACCURACY | ±0.02 mm | AMBIENT TEMPERATURE | 5ºC-45ºC |
| CUTTING GAP | 0.1mm | BEARING WEIGHT OF TABLE | 1000Kgs |
| CONTINIOUS WORK TIME | 24H | PROTECTION LEVEL | IP54 |
| POWER SUPPLY | AC380V±5%(50Hz/60Hz) | TOTAL GROSS WEIGHT | 9Tons |
| TOTAL POWER | <10.2KW | TOTAL DEMENTION(L*W*H) | 8600*2800*2000 |

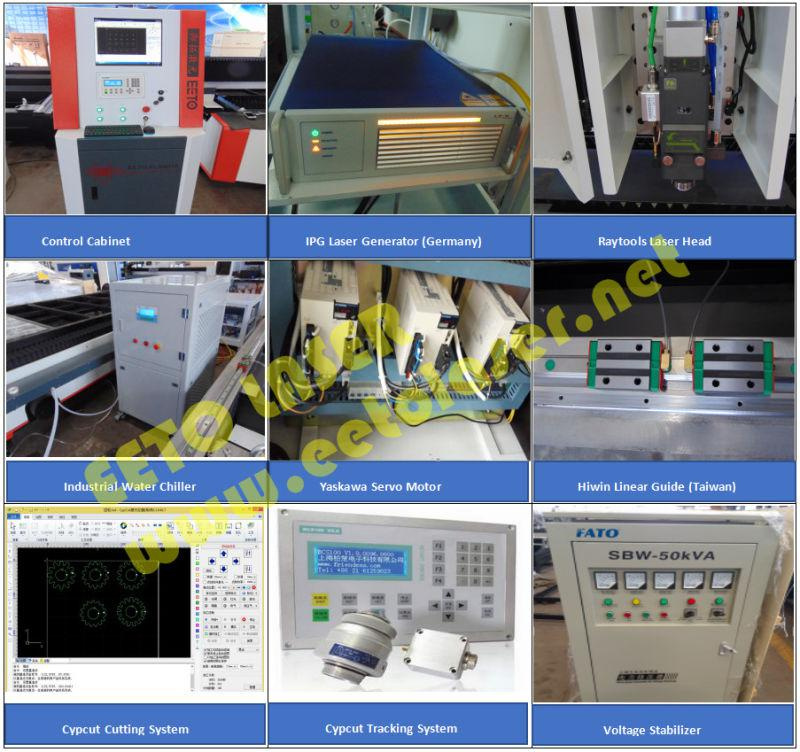

Main components of fiber laser cutting machine
Fucntions of fiber laser cutting machine1. Excellent laser beam quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt to import fiber laser generator, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7. Easy operations: fiber optical transmission, no adjustment of optical path.Advantages of fiber laser cutting machine1. Adopted to import fiber laser generator, with long using life up to 100000 hours and high cutting speed up to 80m/min;
2. Japan YASKAWA Servo motor with double ball screw driving system, can make sure the cutting high precision especially comparing with the single driver system.
3. Swiss raytools laser head with auto focusing height follower, which can ensure the constant same
distance between the head and cutting material

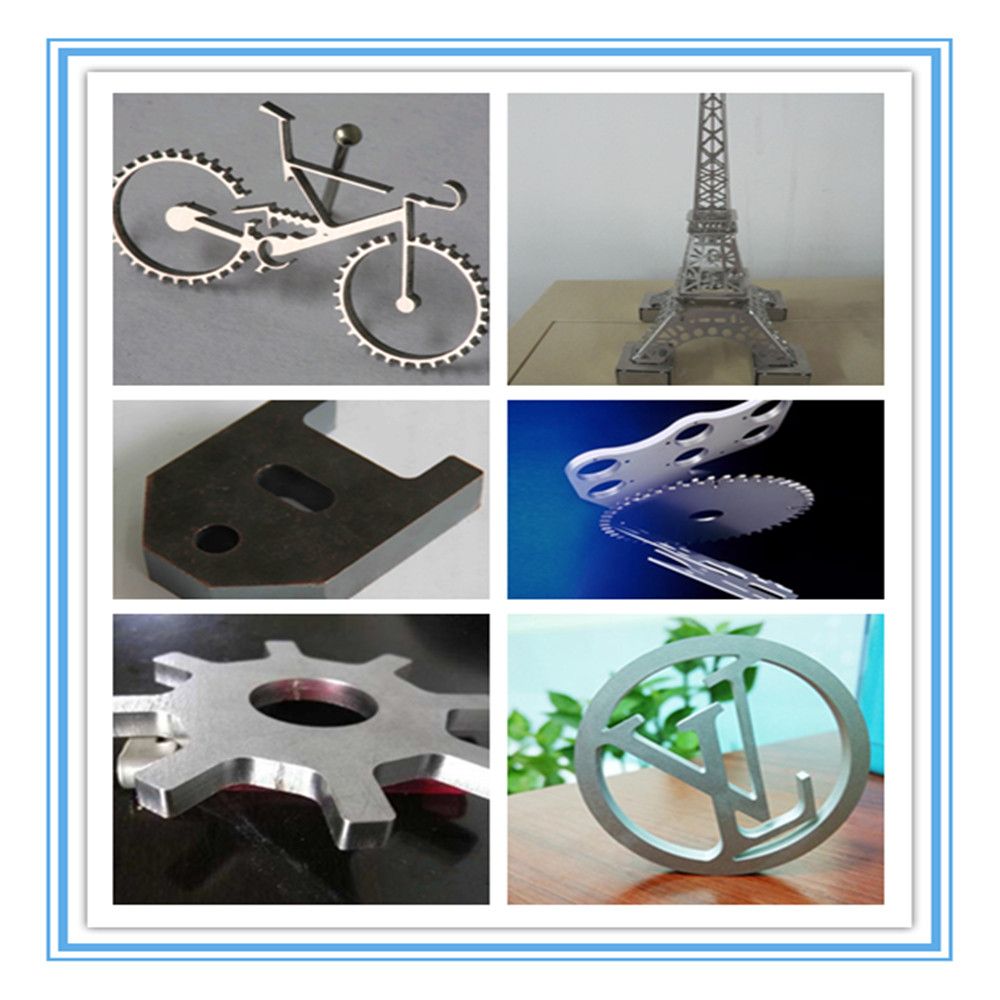

4. Bochu cnc cutting System, which has the special funnel design to make collecting more easy.Samples show
Package and Delivery1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickness plastic bag for waterproof.
2. Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to all of the world. So please don't worry, you will receive the machine in good condition.
3. Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Any problem,you can ask,we will response within 24 hours for you.
Exhibition
Guarantee and Service 1. All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers
will be get good products from us. and all of our machine with 2 years quality guarantee period.
2. Our engineer can make a door-to-door instruction training service.
3.We will offer plenty of online supports, by email, telephone,skype,whatsapp,wechat and so on.
FAQ for fiber laser cutting machineQ: What's the working area of our fiber laser cutting machine?
A: Our standard working area is 3000*1500mm. But we can also do customized sizes as your request.
Q: What's the laser power of our fiber laser cutting machine?
A: Now our standard laser power include 300W, 500W, 700W, 750W, 1000W, 1500W, 2000W, 3000W and 4000W. And we usually use Germany IPG laser generator, but can also choose Raycus Laser as your request to save money.
Q: What materials can we cut? What's the cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut most metal materials, but generally used for cutting carbon steel and stainless steel. Cutting thickness is from 0.5mm to 25mm according to different laser power.
Q: How to install the fiber laser cutting machine?
A: We will send our technician to customer's place for machine installation, commissioning and training. Our quotations include all the installation fees.
Q: In case machine gets problem when customer use it, how to do after sales service?
A: We provide two years machine warranty. During the warranty, if the machine exists problems, we will provide parts free of charge by express. After the warranty, we still provide lifetime technical support service.
Q: If we need to cut work-piece with different height, is it available?
A: Yes, it can cut work pieces with different height. The focus length can be adjusted automatically of our fiber laser cutting machine.
Q: Can we cut both sheet plate and pipe in one machine?
A: Yes, our sheet and pipe laser cutting machine can do that.
Q: What's the delivery time?
A: Generally speaking, lead time is within 40 days after receive the deposit.Company location
