| Price: | US $ 68000-75000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | FLS3015-1500W |
|---|---|
| Cutting Thickness: | Max 8mm |
| Working Size: | 3000*1500mm |
| Total Weight: | 5.2ton |
| Certification: | Ce, ISO 9001:2000 |
| Control Type: | CNC |
| Laser Generator: | Ipg/Nlight/Raycus |
| Service Life: | 100, 000 Hrs |
| Continuous Work Time: | 24 Hrs |
| Total Power: | 7.5kw |
| Power Supply: | AC 380V/50Hz |
Parameter:
| Model | EETO-FLS3015-1500W | STRUCTURE | Gantry type |
| OUTPUT POWER | 1500W | DRIVEN STRUCTURE | Duel-driven |
| CUTTING AREA (L*W) | 3000*1500mm | DRIVEN MODE | Servo control |
| MAX CUTTING THICKNESS | 16mm CS; 6mm SS | X AXIS STROKE | 3020mm |
| MAX CUTTING SPEED | 50m/min (1mm thickness) | Y AXIS STROKE | 1520mm |
| MAX IDELING SPEED | 120m/min | Z AXIS STROKE | 150mm |
| POSITIONING ACCURACY | ±0.03 mm | COOLING | Water chiller |
| RE- POSITIONING ACCURACY | ±0.02 mm | AMBIENT TEMPERATURE | 5ºC-45ºC |
| CUTTING GAP | 0.1mm | BEARING WEIGHT OF TABLE | 1000Kgs |
| CONTINIOUS WORK TIME | 24H | PROTECTION LEVEL | IP54 |
| POWER SUPPLY | AC380V±5%(50Hz/60Hz) | TOTAL GROSS WEIGHT | 5.2Tons |
| TOTAL POWER | <12 | TOTAL DEMENTION(L*W*H) | 4600*21 |
Product Features:
1. Rigid machine body obtained through standard annealing process in high - temperature electric furnace, ensuring precision in the long term
2. Imported original fiber laser generator with super beam quality and stable performances, laser passes through fiber without reflectors, free of light path adjustment, maintenance free, service life up to 100,000 hours
3. Photoelectric Conversion Efficiency (PCE) by 30%, far more higher than CO2 laser or YAG, which saves much of energy cost.
4. Imported precision motion parts and servo motors, which support high-speed running
5. Capable of cutting various graphics and words, which makes work simple , flexible, and convenient.
6. Smooth cut without deformation.
7. Extremely low energy cost, which accounts only 1/3-1/5 of YAG machine if output powers were the same, environment-friendly.
8. Solid-state laser type, which supports multimode integration with multimode power outputs, able to cut a variety of sheets with fair speed. In addtion, it supports air cutting thin sheets, greatly shortening period of ROI (return of investment)
Standard Package
Package and Delivery are of great important part in aftersales service, we provide all-round and complete services to customer to make sure your products arrive safely without damages. For packaging.
1. We use wooden cases that meet international export standard
2. All the motion parts are lubricated and covered with firm to avoide direct air contact and thus prevent getting rust.
3. The whole machine and parts are well packed and fixed inside of the wooden case without moving or sliding inside.
4. The inner side will be made into vaccum and the plywood case will be covered with waterproof cloth to stop rain drops or sea water from entering the wooden case
After-sales Service
1. Based on Service-oriented conception, complete pre-sales and after-sales services for customers will be provided like installation, testing, training and maintenance.
2. Before signing a contract, parameters and processing technics will be explained and given to customers to make product fully comprehended.
3. After signing a contract, transport vehicle or ship will be arranged to carry goods to the appointed location within delivery period, and engineers will be sent on site later for installation, lasting 1-2 days.
4. Training period takes about 3-4 days till all the operations are perfectly performed under regulations.
5. We promise to visit our customers once a year ,during the visit, we will help them with machine maintenance, operation, and enhance their knowledge and operation skills.
Power-on/off procedures
Operations of control panel ;
Parameter setup
Operations of software; Clean and maintenance
Common hardware troubleshooting; Warnings during operation.
Extra Tech Support
Two-year warranty guaranteed from EX-factory, meanwhile, lifelong maintenance succeeds after warranty. Any malfunction or damage occurs during warranty ( man-made causes and force majeure exclusively), please email or call us immediately, professional engineers will be arranged on the resolution, all the charges are free including cost of changing new parts (consumable parts excluded).
Our promises: 24 hours on-line service and response time less than 2 hours
15 days after signing a contract, a layout drawing will be sent to user( including preparations on foundation, water, electricity, gas, air/water pipe, interface, etc). Preparatory works and space spared for machine installation are required on user side . Professional engineers then will be dispatched after all these preparations are finished, In order to run everything smoothly, on-site assistance from user side will be quite necessary.

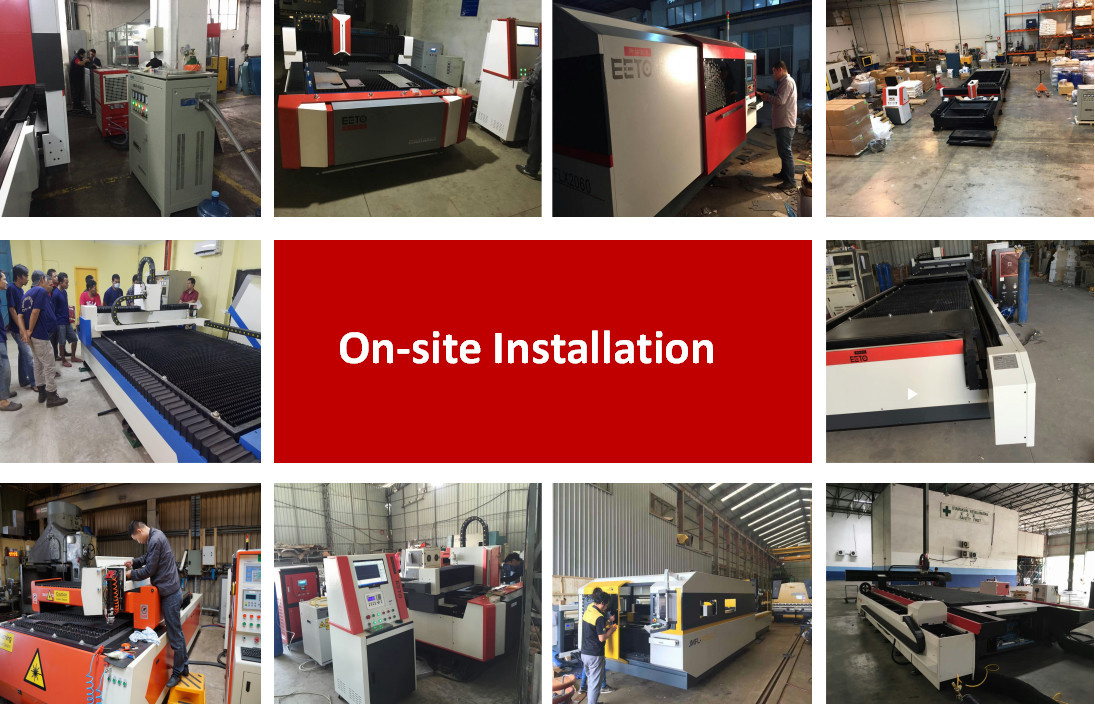

Our Installation and Training
Our Sales-Network:
EETO are delicated to bringing best laser products to the world-wide customers, we are establishing up our sales network and network of distributors, now we have close contact with many clients from a great many countries like Thailand, Indonesia, Malaysia, Singapore, Taiwan, Spain, Macedonia, Canada, U.S. Mexico, , Brazil, Argentina.... welcome to work with EETO, and WELCOME TO JOIN US!

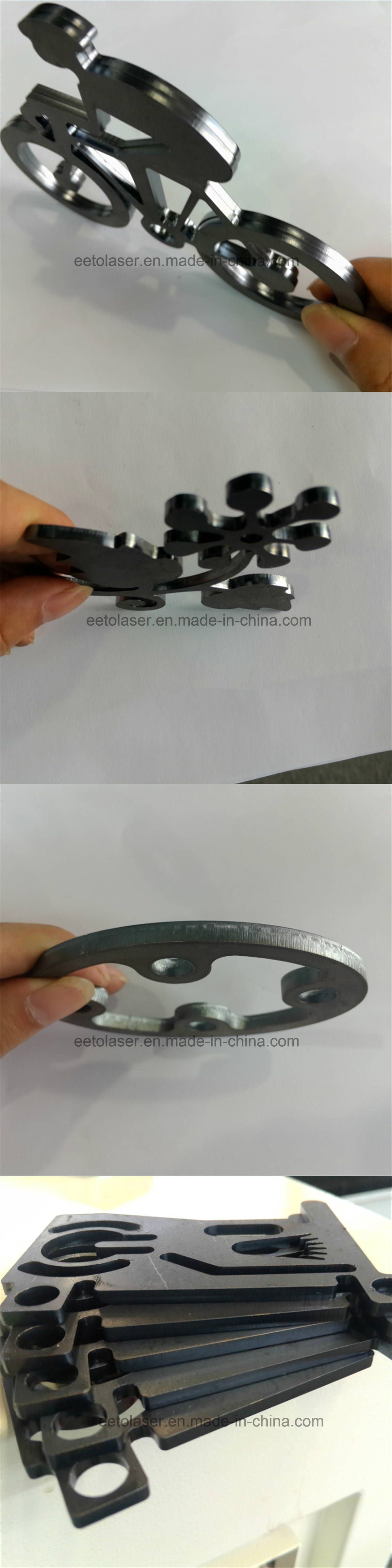

Real Samples
FAQ:
Q: What's working area of our fiber laser cutting machine?
A: Our standard size: 3000*1500mm, 4000*1500mm, 4000*2000mm, also we support tailored type if customer has special requirements
Q: What's the laser power of your fiber laser cutting machine?
A: We have laser power from 300-4000w, able to different metals with varied thickness
1. Low power 300W, 500W, 700W, 750W, 1000W, which cut metals lower than 10mm
2. Medium power 1500W, 2000W, able to cut steels up to 16mm
3. High power 3000W and 4000W, extending cutting capability to 25mm
Q: What materials can we cut? What's cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut most metal materials, including carbon steel/stainless steel/aluminum/galvanized sheet, but high reflective materials are restricted to be cut with fiber fiber, like brass/silver/bronze, if you have such material to cut, please connect us for professional advice
B: Cutting thickness from 0.5mm to 25mm according to different laser power.

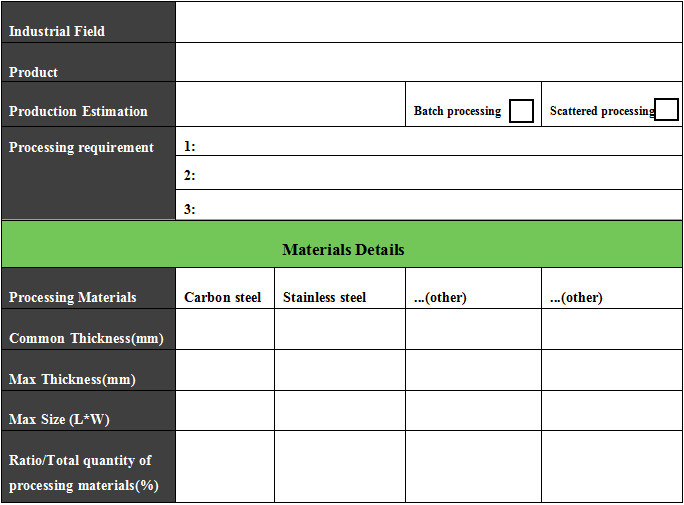

For better choosing a suitable product, please let us know the following information:
