| Prod Model: |
BD26C2/C1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Measures(L*W): |
2000*670mm |
| Height(Minimum-Maximum): |
610-910mm(200mm Wheel) |
| Max Slide Distance Of Board: |
520mm |
| Equipment Weight: |
150kg |
| Maximum Weight Of Patient: |
135kg |
| Power For Charge: |
AC220V/110V, 50Hz/60Hz |
| Storage Battery: |
(12V, 13ah)*2PCS |
| Factory Location: |
1.5 Hours From Shanghai |
| Material: |
Metal |
| Type: |
Electric Transfer Bed |
| Color: |
White+Black |
Product Description

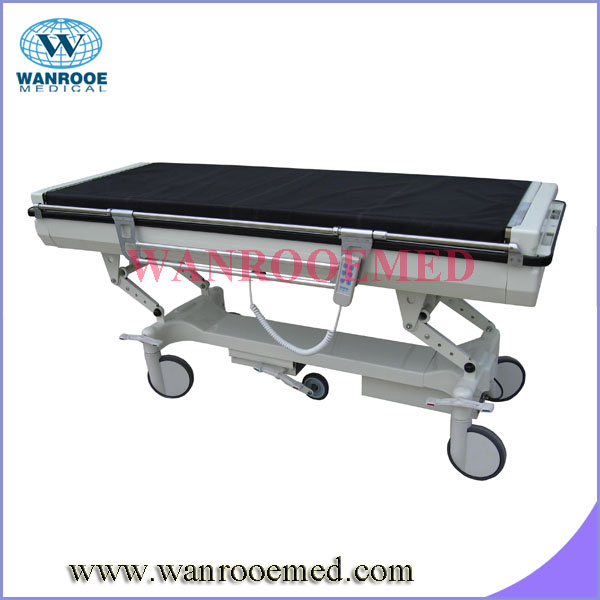

Medical patient Electric Transfer Bed
Main Function:
1. The transfer device is used to transfer the patient automatically between the operation table (or medical bed) and the device without any move action by the operator. It can effectively avoid causing any further injury to the patient to protect the patient and reduce operator's physical intervence during the transfer course.
2. The device height is adjustable to any types of medical bed or operation table.
3. The foot brake is equipped to control 4 wheels which can be used to lock the device during the transfer procedure.
4. The device has retractable safety side rails on the both sides to protect the patient and it also has IV pole.
5. It is easy to use hand control panel to transfer the patient on the operation table or hospital bed.
6. Storage batteries make it safe and convenient to operate and use the transfer vehicle.
Technical Parameters:
Surface measures(L*W)
Height(minimum-maximum)
Max slide distance of board
Weight of equipment
Maximum weight of patient
Storage battery
Power supply |
2000*670mm
610-910mm(ø200mm wheel)
520mm
150kg
135kg
(12V, 13AH)*2PCS
AC220V/110V, 50HZ/60HZ |
Accessories:
IV pole
Connection cable with main plug |
1
1 |
