| Prod Model: |
BAE502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Eastern Asia |
| Position: |
Multi-Position |
| Weight Scale: |
Optional |
| CPR: |
Yes |
| Motor Brand: |
Linak |
| Battery Backup: |
Yes |
| Warantee: |
3 Years |
| Sleep Deck Width: |
900mm |
| Max Head Elevation: |
75° |
| Max Trend And Reverse Trend: |
12° |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
Product Description

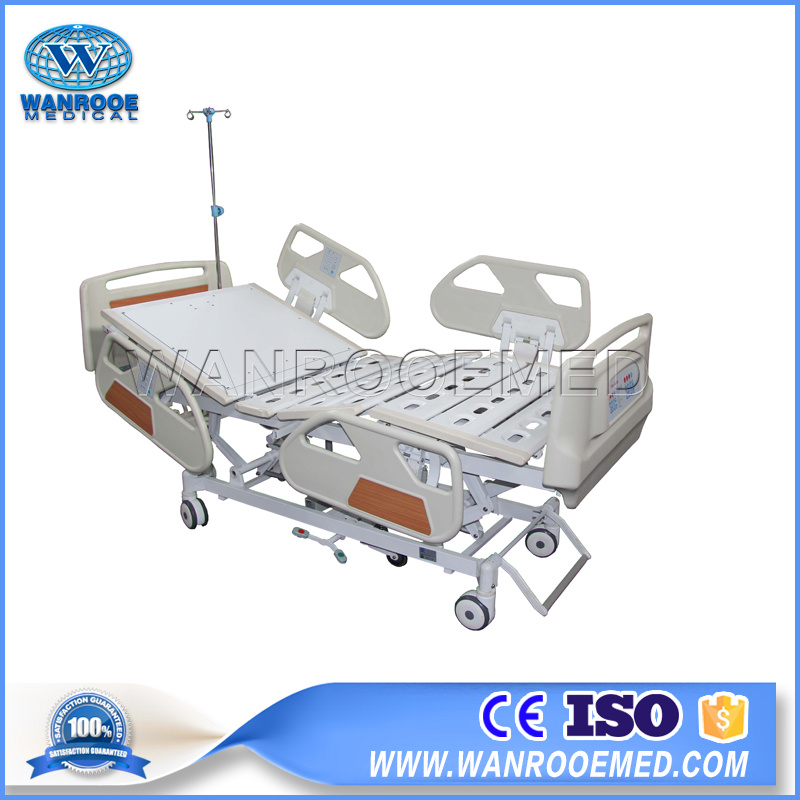

Bae502 Multifunctional 4 Linak Motors Electric ICU Hospital Bed with X-ray Transmitting
WANROOEMED BAE502 series Electric hospital Bed is an adjustable electric hospital bed that is with good quality and safety at an affordable price. The BAE502 Electric Bed meets stringent quality and safety standards, and it is a good choice for patients and caregivers.
Patient Safety- Your patients' safety and comfort are your primary concern. The WANROOEMED BAE502 Bed built-in several unique features to help you protect and care for your patients, including:
Standard Features:
1. 4 LINAK motors
2. Tuckaway siderails, zero-transfer gap
3. Back section with X-ray transmitting, with cassette track
4. Battery backup
5. Manual CPR handle
6. Caregiver patient siderails controls;Caregiver foot end controls
7. Lockout control on footend.
8. 12° trendelenburg and reverse trendelenburg
9. Head section and knee section can move at the same time for cardiac chair position
10. 4-position IV pole mounts on four corner, and on each side of electric bed, with additional one each side.11. Blow-molded headboard and footboard, single-step removal.
12. 4pcs of mobile centrally controlled castors(diameter: 125mm)
13. Standard length sleep deck-1960mm length, 900 mm width
14. With drainage hook and adjustable IV pole
15. Compatibility with most:
-standard mattress
-overbed tables in the low position
-beside cabinet
16. PP carriage base, bumpers,full sleep deck X-ray available, long siderail optionalTechnical Specifications:| Dimensions | Bed length with standard sleep deck: 2230mm
Length extension:150mm standard
Width (with resident assist rails up): 1050mm
Width (with resident assist rails down): 990mm
Height of sleep deck (in low position): 450mm
Height of sleep deck (in high position): 700mm |
| Sleep deck | Width:900mm
Normal length:1960mm |
| functions | Max head elevation: 75° |
| | Mas knee elevation: 45° |
| | Max Trend and reverse Trend: 12° |
| | Height: 450-700mm |
| Max safe load | 250kg
|
Optional scale system
| Accuracy :.0.1kg( 0.05kg 0.02kg optional)
|
| Castor | 5 inch Standard, 6 inch Optional |
| package | By wooden package suitable for sea way shipment |

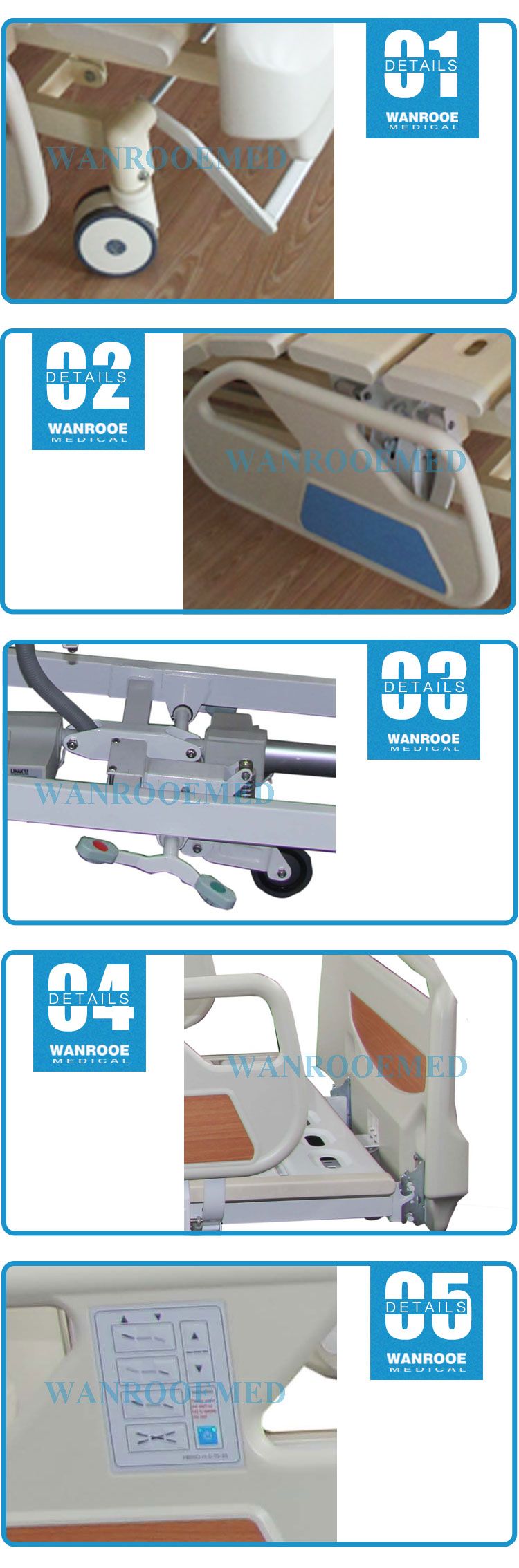

Detailed pictures:
WOODEN EXPORT PACKAGE:

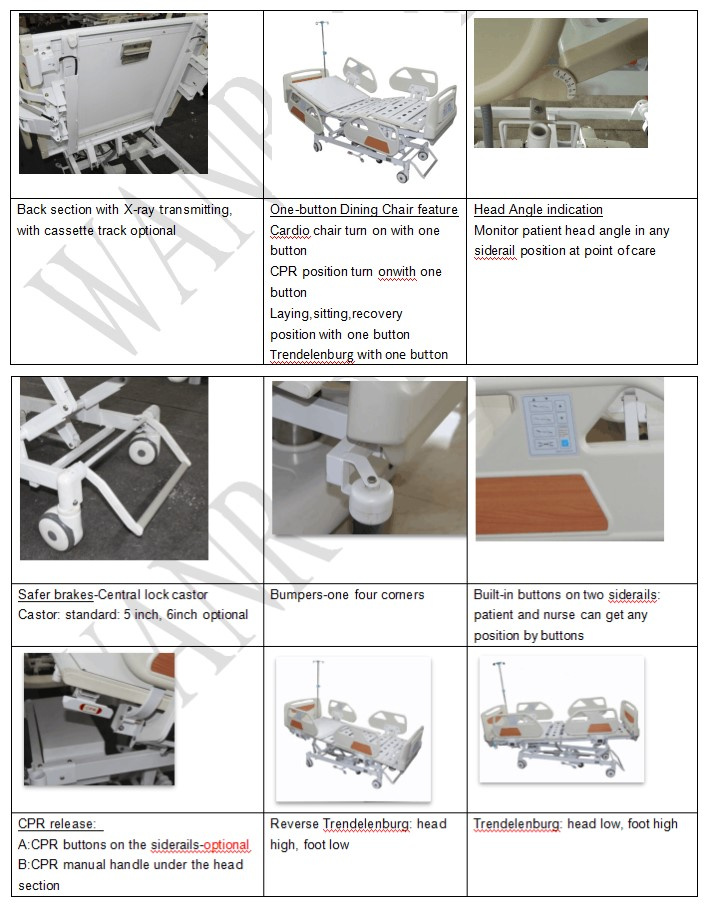

Details:
Company Information:
As the WANROOEMED is large-scale health care system Solution Providers, we focus on patient needs, continuous innovation, close to the clinical needs of people around the world to help improve medical conditions, reduce health care costs. So far, WANROOEMED products and solutions are deployed in over 100 countries, welcomed by professional medical and hospital brokers.
We are committed to better medical products, building cleaning, sanitation, medical care and comfortable working environment, to protect human life and health and safety. In recent years, the company in Jiangsu, Shanghai, Zhejiang, Anhui and other places to establish a "WANROOEMED" brand production base, and the introduction of Germany, Japan advanced production equipment and factory management philosophy, and constantly improve product quality, profit to customers.
"Superior quality, caring service" is as WANROOEMED commitment to customers, "sincere guardian of life" is as sacred mission of WANROOEMED. In the future, such as WANROOEMED people are full of passion for innovation practice their mission, focus hospitals needs, provide competitive medical equipment solutions and services, continued to create maximum value for customers.
