Massage Chair Using Liner Actuator 24V
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BCS-3K |
| Color: |
Black and Silver |
Product Description
Product Description

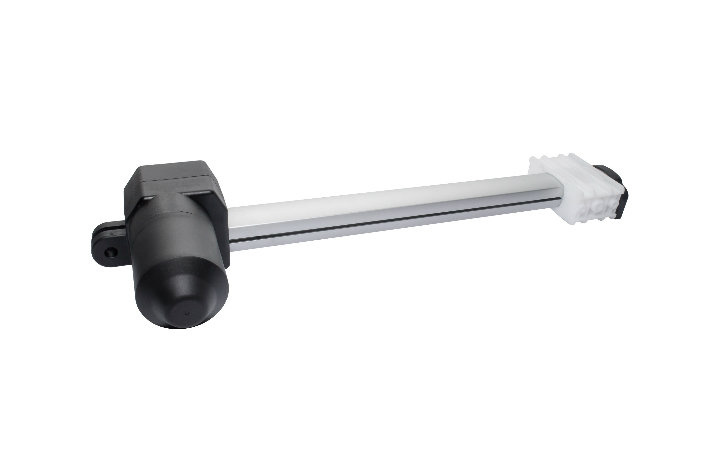

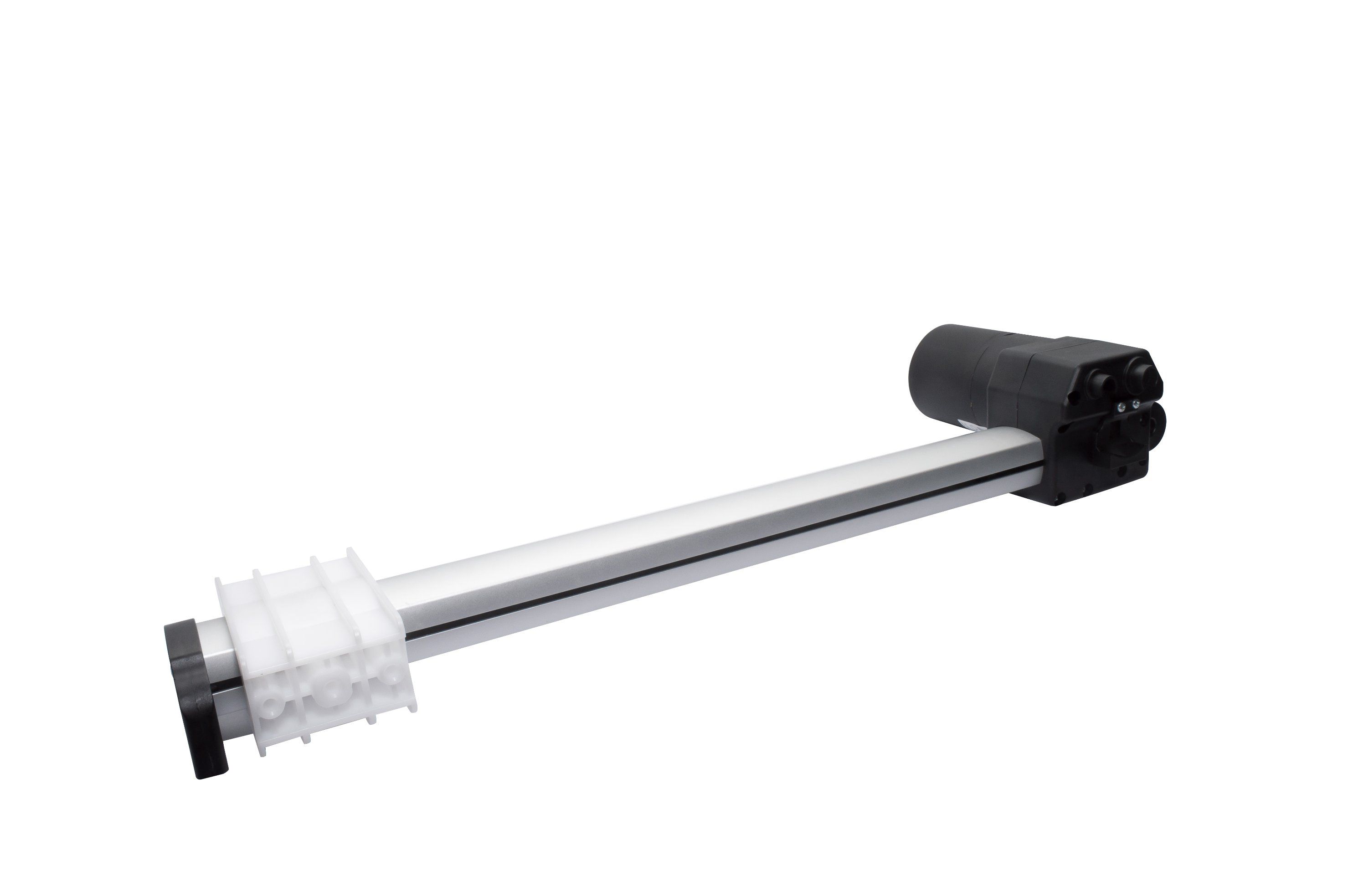

BCS-3K Ordinary Actuator with Block
Features: | Voltage | 24VDC/29VDC |
| Power | 50W |
| Max. thrust | 3000N Push,3000N Pull |
| Stroke | 500MM |
| Install distance | 140MM+Stroke |
| Max T_ON | 2min |
For indoor use onlyStable quality,competitive price,strong extended performance,and can acheive multi-function customazition.
• Compact design where the guide and actuator function is an integrated unit
• Max. thrust: 6000 N
• Max. speed: 1min ON/8min OFF
• Standard installation dimension: 645 mm, 445 mm or 345 mm
• Standard stroke length: 500 mm, 300 mm or 200 mm
• Colour: black motor housing and powder painted outer tube
• Low noise level
• Dimension column: 50 x 80 mm
• Dimension motor housing: 187 x 97 x 70 mm
• Soft start and stop ensured by the control box
Our company is specialized in designing and manufacturing smart home and healthy daily use articles. The main products we offer are, height adjustable desk, standing desk, chilren study table, LCD monitor arm, electric bed, etc.
We provide custom-made product manufacture sevice and also have many items for wholesale.
We have an excellent team for R&D, focus on technology and practicability. Aim to satisfy people's different needs on furniture.
