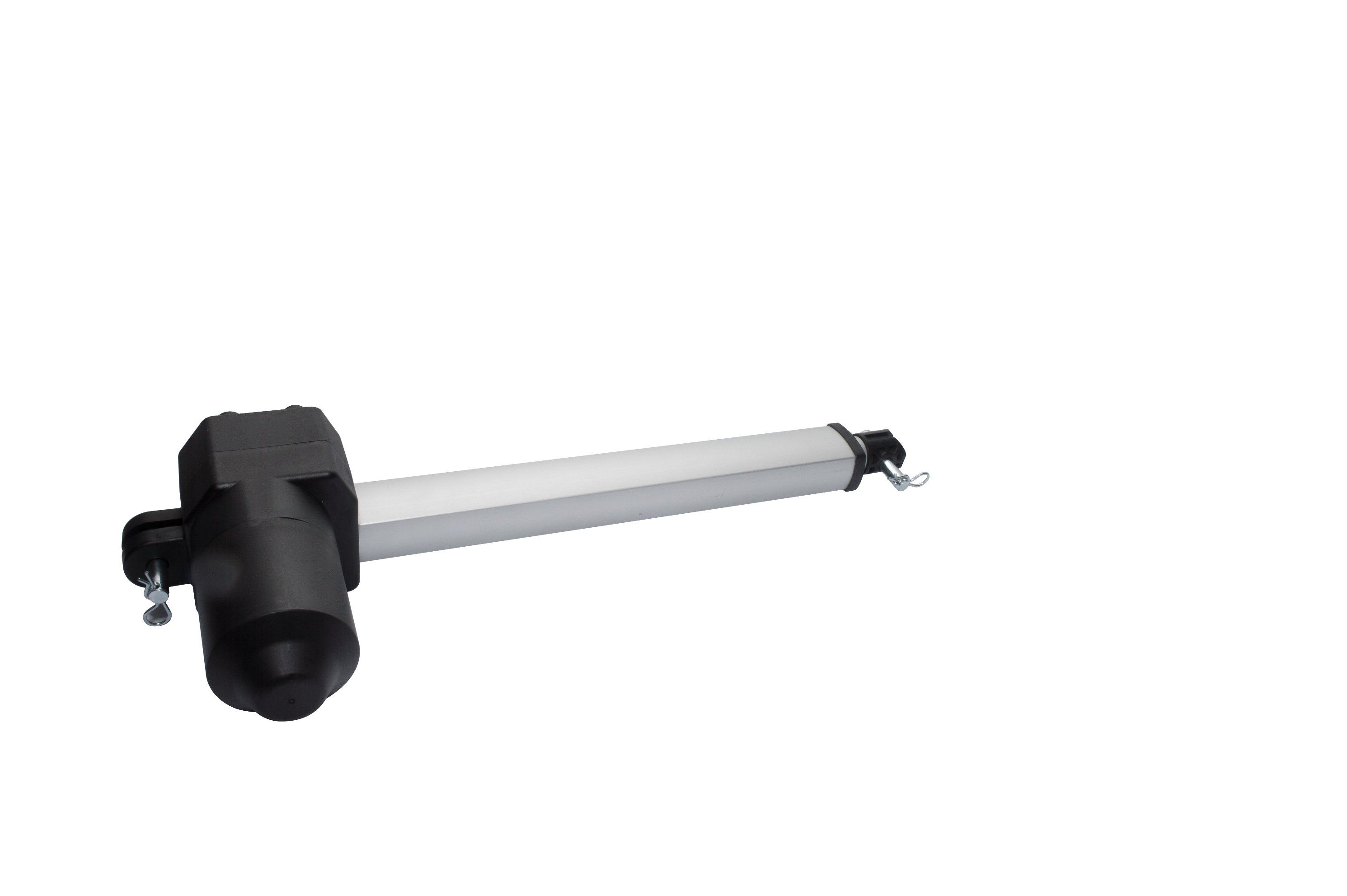

24V Smart Pushing Linear Actuator for Massage Chair
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BSP-6K |
| Color: |
Black |
Product Description
Product DescriptionBSP-6K Smart Pushing ActuatorFeatures: | Voltage | 24VDC/29VDC |
| Power | 50W |
| Current | Max. 4.5A |
| Max. thrust | 6000N Push,4000N Pull |
| Stroke | 500MM |
| Install distance | 160MM+Stroke |
| Max T_ON | 2min |
1min ON/8min OFF
For indoor use only with suitable power Supply
With two functions:memory reset,and automatic operation.
And three major performance as follow:overload protection,electronic anti-popping,and precise control.
Stable quality,competitive price,strong extended performance,and can acheive multi-function customazition.• Compact design where the guide and actuator function is an integrated unit
• Max. thrust: 6000 N
• Max. speed: 1min ON/8min OFF
• Standard installation dimension: 645 mm, 445 mm or 345 mm
• Standard stroke length: 500 mm, 300 mm or 200 mm
• Colour: black motor housing and powder painted outer tube
• Low noise level
• Dimension column: 50 x 80 mm
• Dimension motor housing: 187 x 97 x 70 mm
• Soft start and stop ensured by the control box
