Sintec Glass Machinery Co., Ltd. (China) >> Manual Glass Cutting Machine/Manual Glass Cutting Table

Manual Glass Cutting Machine/Manual Glass Cutting Table

Manual Glass Cutting Machine/Manual Glass Cutting Table
Price: Negotiable/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: JQZ-2620
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Glass Sheet Size: 2500*1900mm
Glass Thickness: 0.7~15mm
Dimensions (L*W*H): 3248*2720*1140mm
Air Pressure: 0.6~0.8MPa
Pneumatic Parts: Airtac (Taiwan)
Type: Glass Cutting Machine
Certification: ISO
Control System: No

Product Description

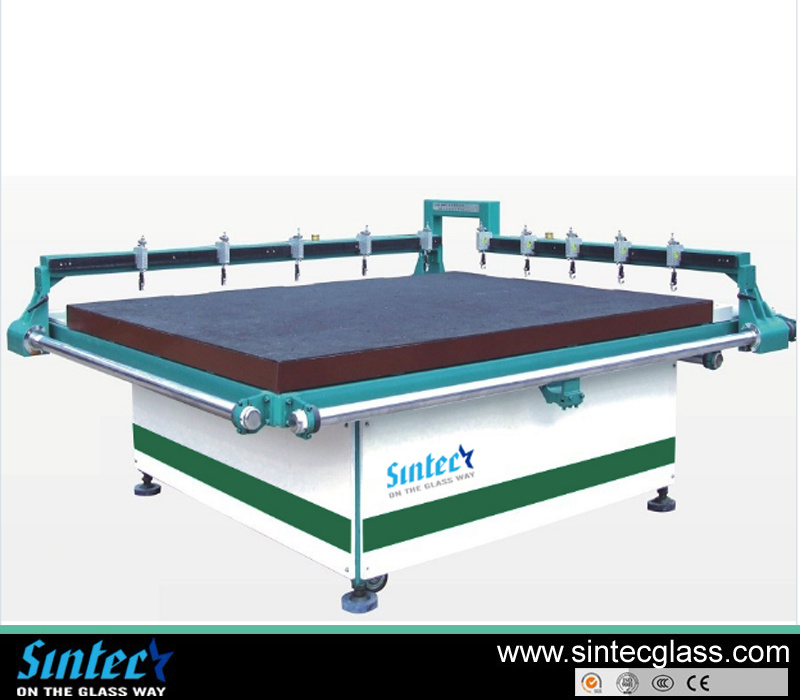

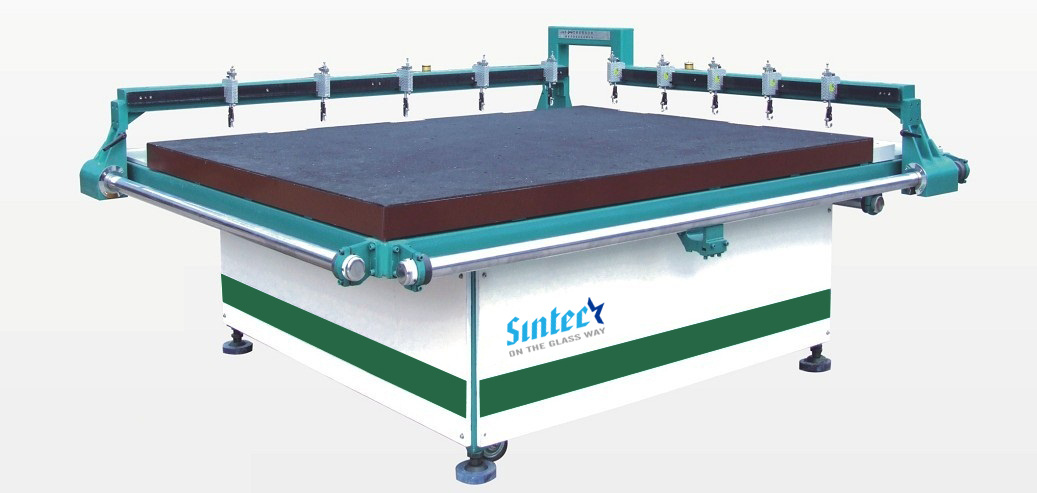

JQZ Manual Glass Cutting Machine


Characteristic
-          High efficiency cut with multi-cutters
-          Cutting boxes interval distance manual adjustment
-          Self-lubricating system
-          Easy-replaced cutter wheel
-          High density table panel

Technical parameter:

ModelMax. glass sizeThicknessDimensions (L*W*H)Min. sizeWeight
JQZ-600550*550mm0.7~15mm1280*1260*1040mm15*15mm300kg
JQZ-800700*650mm0.7~15mm1400*1510*1140mm15*15mm550kg
JQZ-16121500*1100mm2~15mm2248*1910*1140mm15*15mm850kg
JQZ-161351500*1250mm2~15mm2248*2060*1140mm15*15mm850kg
JQZ-21162000*1500mm2~15mm2748*2310*1140mm15*15mm1500kg
JQZ-26202500*1900mm2~15mm3248*2720*1140mm15*15mm1600kg
JQZ-35263400*2500mm2~15mm4344*3385*1140mm15*15mm2000kg
JQZ-37253660*2440mm2~15mm4544*3285*1140mm15*15mm2000kg


Sintec Glass Machinery Co., Ltd., is located in a beautiful pearl City -- Bengbu, Anhui Province, is a professional high-tech enterprises which produce various kinds of glass cutting machines in China since 2009.

To become a leading international glass cutting manufacturing experts is the Sintec company development strategic target. Quality first and service supreme, made Sintec gained hundreds of domestic and all over the world customers.

After years of efforts, Sintec factory has owned ourselves special design, many patents of products. Company specializing in the production of Automatic Glass Cutting line, CNC Glass Cutting machine, Automatic Glass Loading machine, Glass breaking machine, Semi-automatic Glass Cutting machine, Manual glass cutting machines, Washing machine and various types of glass cutting tools etc.

Cutting production of products applicable to the construction, furniture, windows, hollow, electrical appliance, arts and crafts, all kinds of glass plate in deep processing glass jobs.

Sintec for its excellent quality and perfect after sale service by the customers trust and support,

We will take sincere attitude of friends at home and abroad, joint development of glass machinery manufacturing industry brilliant tomorrow!
