Prod Model: |
TPA-V086 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wind Resistance: |
Grade 10 |
Earthquake Resistance: |
Grade 7 |
Material: |
Steel Structure |
Usage: |
Workshop |
Certification: |
CE |
Customized: |
Customized |
Product Description
Product informationProduct type:Light steel villa
Luxury prefab villa house--
1.Safe and Durable;
2.High Quality;
3.Eco-friendly;
4.Less Labor Cost.
Characteristic of villa house
*Convenient to assemble and install
*Dry construction condition; no pollution; no waste.
*The building self-weight is only 1/4 of brick-concrete structure.
*No structure exposed.
*Galvanized steel is 80% recyclable
*water proof, moisture proof and heat resistance.
Detail materials list
Steel framework
-Main column: fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube
-Main triangle Beam: fabricated by C80, C100, C120, C140 Section steel, Q235 Steel,
Surface working: Alkyd painting,two primary and two surface.
-Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel,
Surface working: Galvanized
Floor
Groud floor will be the concrete foundation with Ceramic tiles, PVC floor leather or wooden tile
Ceiling
6mm Gypsum board for dry room;12mm PVC ceiling for wet room
Walls
Insulated Steel Sandwich Panel wall
Panel width: 950mm;
Thickness: 50-120mm.
Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm
Insulation: Polystyrene, Rockwool or Polyurethane
Density of Rockwool: 120Kg/m3
Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3
Density of Polyurethane: 40Kg/m3
Door
External door: security steel door
Inner door: Insulated steel door.
Windows
Window material: PVC or Aluminium frame window with fly screen, 4mm glass.
Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
16A five hole universal socket.
double tube fluorescent lamp, 220V,50-60HZ
Single Switch, Honyar brand, with junction box
Electrical distribution box, box+breakers+earth leakage protective device
Optional Water system fittings
Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
Sanitary ware:
Close tool: ceramic, with pipes and installation fittings
Urinal: ceramic, with pipes and installation fittings
Wash basin: ceramic, with post, faucet, pipes and installation fittings
Shower head, Shower base, Water mixture

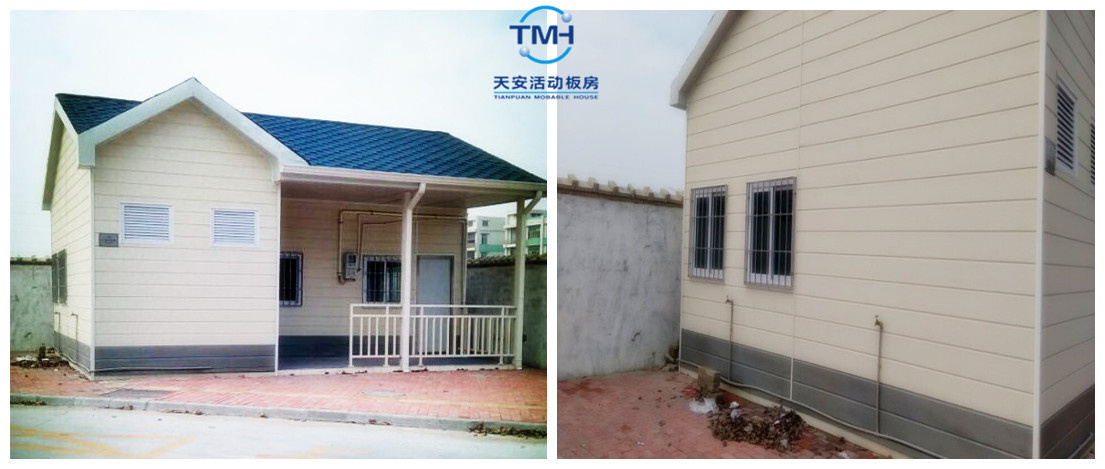

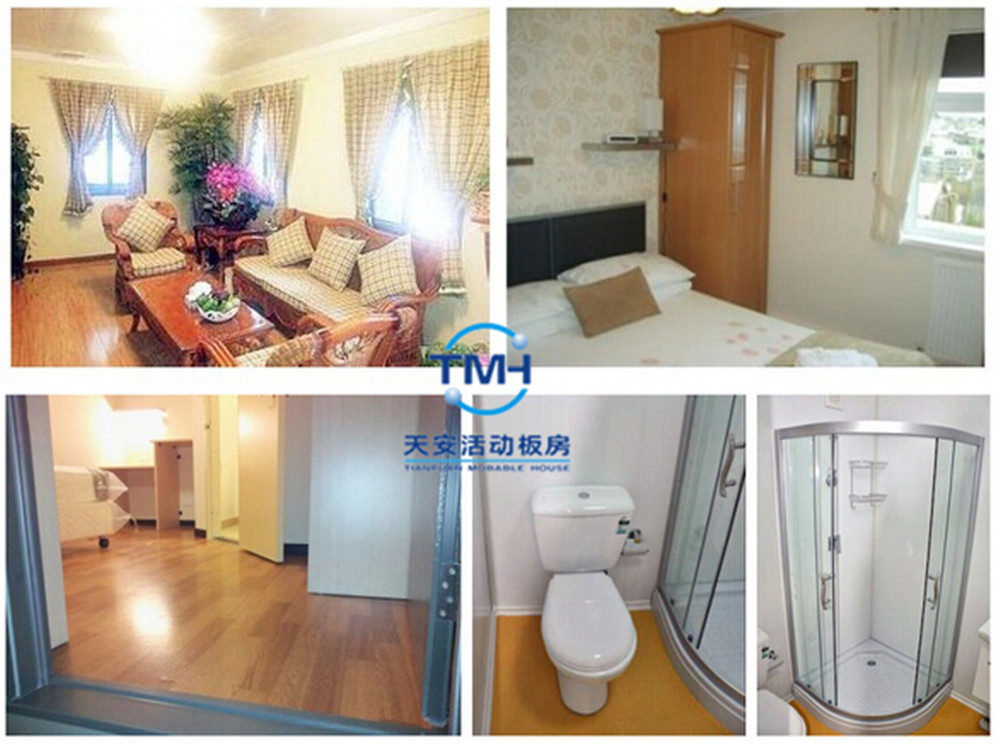

Inside decorationSimilar prefab villa house display
We'd love to give fully support for your further inquiry!
Sue Hsu
Tel: +86 13535848691
Foshan TianPuAn Building Materials Technology Co., Ltd. is a leading company specialized in design, manufacturing, marketing and construction of the prefab house, container house, light steel villa house, steel structure and some related fence as well.
Established in 2005, covered an area of over 70, 00, construction area of 5, 000 square meters. Thanks to the management group which consist of experts and business professionals of the industry near 100 employees, the company has kept on steady and fast sales increasing for these few years.
We have been certified by ISO: 9001: 2008. Up to now, TianPuAn has completed hundreds of projects Domestic and around the world.
We can provide home design expertise, construction knowledge you need to build your custom home in short time and within your budget. We help you to achieve the balance between quality, function and costs. Positive Sale and After sales services are always be well assessed.
Quality is the foundation of success and Innovation is the source of development. Our unique process is devoted to designing a beautiful, safety, spacious place for you. We bring our enthusiasm and strive to make it happen!
