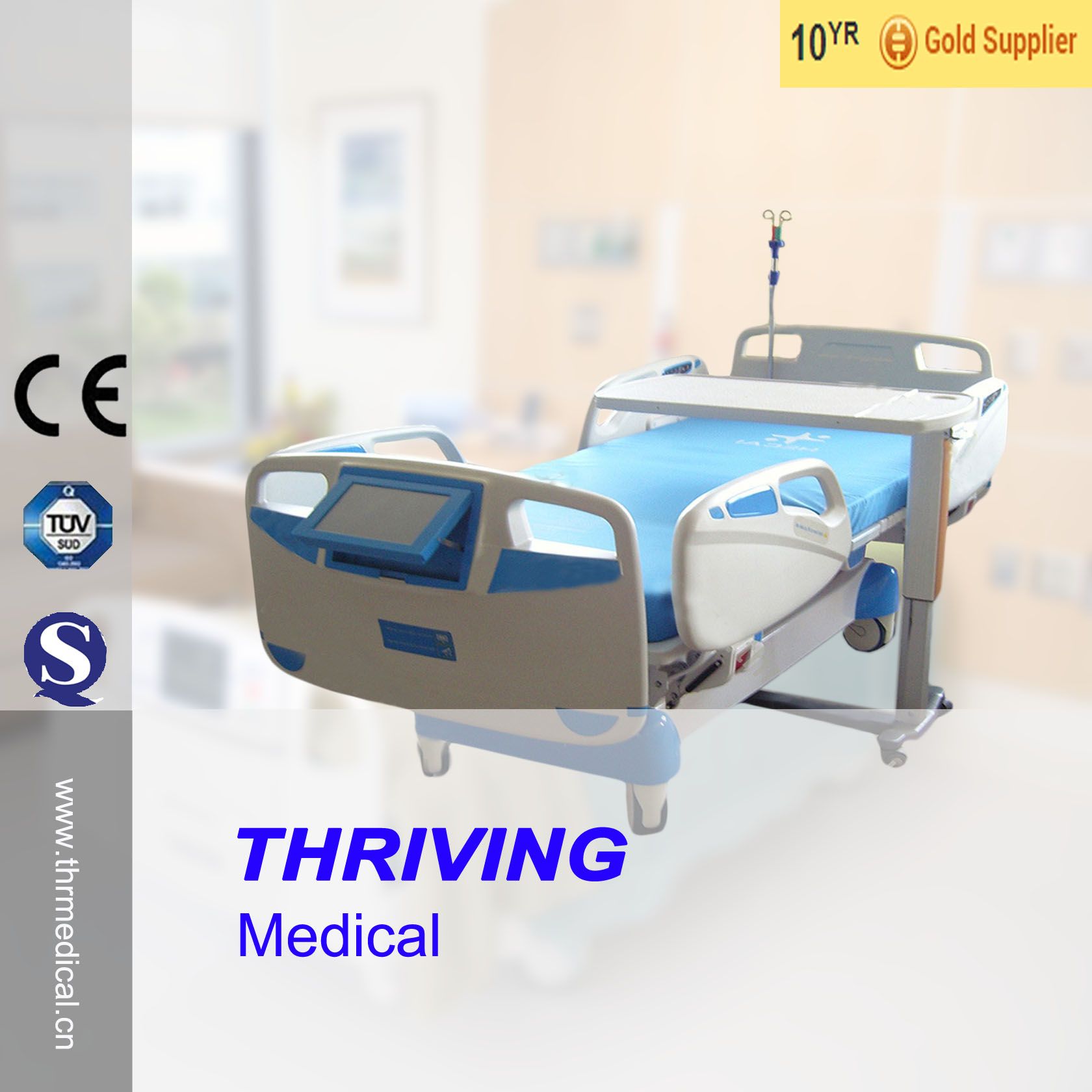

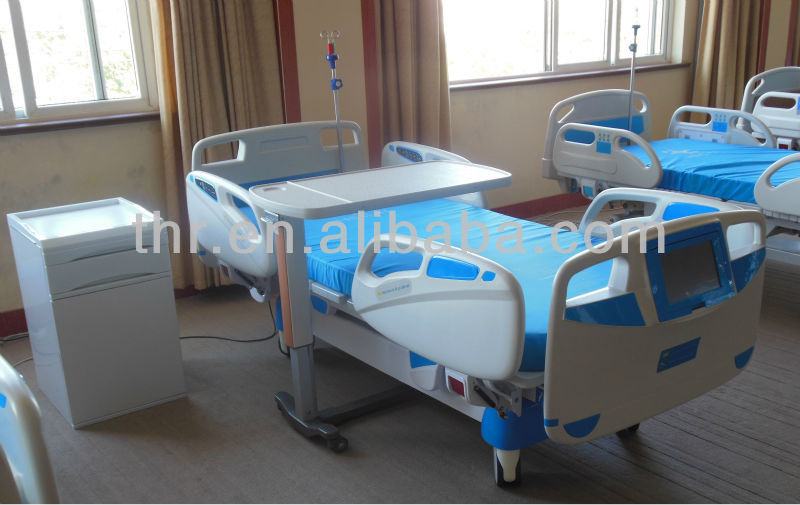

Luxurious ICU Hospital Bed (THR-IC-528B)

Prod Model:	THR-IC-528B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bed Material:	Steel Framework, ABS&PP for Plastic Part
Dimension:	2330mm(L)*1050mm(W)*530-710mm
Bed Board:	1955mm*900mm
Net Weight:	158 Kg
Loading Capacity:	250 Kg
Castor:	150 Mm Swivel(Central Locking)
Back-Rest:	0-65 °
Foot-Rest:	0-43 °
Hi-Low:	710-530 Mm
Trendelenburg And Rev.:	10 °
Material:	Metal
Type Of Hospital Bed:	Electric Bed
Folded:	Folded
Using Ambient:	Hospital
Certification:	CE

Product Description

Luxurious ICU Hospital Bed(THR-IC-528B)



Descriptions:
N Specifications:
Material: Steel framework, ABS&PP for plastic part
Dimension: 2330mm(L)*1050mm(W)*530-710mm
Bed board: 1955mm*900mm
Net weight: 158 kg
Loading capacity: 250 kg
Castor: 150 mm swivel(central locking)
N Features:
1. With easily operated touching switch, solve the problem of limited service life of mechanical keypad and keypad invalid due to constantly operating
2. Insert touching switch in the 2 pcs side rail at the head side, for patient adjust bed position easily. A 10.2" touching screen at the foot board, display all the bed position figures, with patient lock-out system, for nursing person's operation
3. Back-rest(0-65 ° ), foot-rest(0-43 ° ), hi-low(710-530 mm), Trendelenburg(10 ° ) &Rev. Trendelenburg(10 ° ), all achieved by electrically controlled, with indicator light to show the work status.
4. Bed position data can be stored and callout
5. Function of weight scale, weight data can be stored and managed
6. Off-bed alarming
7. "Reset" function(CPR function), bed can back to "ZERO" position quickly
8. Backup battery, for emergency power failure
9. Detachable head&foot board in PP plastic, can be fixed when assembled
10.4 pcs foldable PP side rail, controlled by gas spring
11. Bed board with soft connection, make the bending of the bed board more smooth to let the patient feel more comfortable.
12. Central locking castors controlled by electric
13. IV pole mount backrest, at 4 corners of the bed frame.
N Accessory: IV pole(Standard configuration)
Over bed table(optional)
Bed side cabinet(optional)
10 cm mattress(optional)
N Packing: Wooden case
2080*1060*610 mm

Dimension	2330mm(L)*1050mm(W)*530-710mm
Function
Back-rest	0-65  °
Foot-rest	0-43  °
hi-low	710-530 mm
Trendelenburg	10  °
Rev.Trendelenburg	10  °
Packing	2080*1060*610 mm
