Product Description

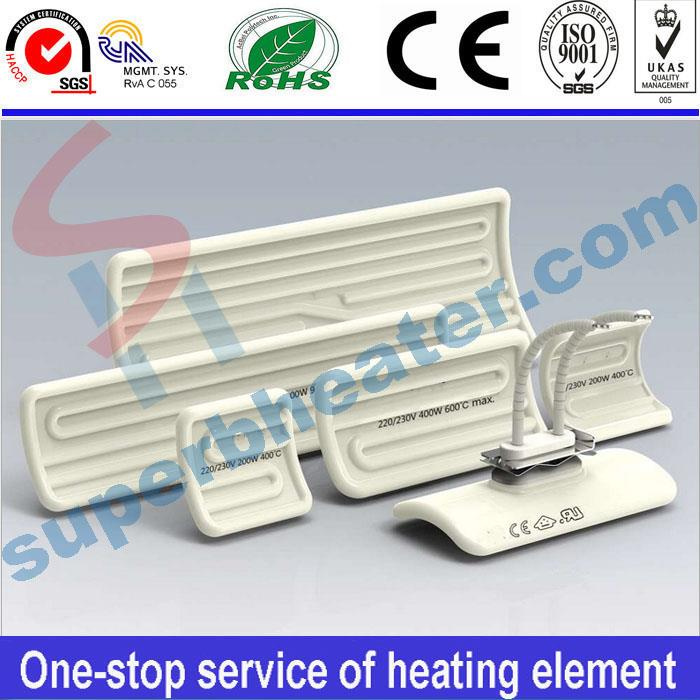

Safe usage white infrared ceramic heater Quick Detail Ceramic infrared heater is made out of ceramics.
1. Radioactive properties: a maximum monochromatic radiation components reached 0.9, the normal total radiation rate is greater than 0.83.
2. Thermal response time: from room normal temperature to a constant value of the radiant panel surface temperatures less than 20 minutes.
3. Degeneration of hot and cold resistance: five alternating hot and cold test of no peeling, no cracking.
| Radiating temperature inhomogeneity | ≤ 15% |
| Power error | The rated working voltage ≤ 5% |
| Cold insulation resistance | 500V megger> 2mΩ |
| Thermal insulation resistance | 500V megger> 0.5mΩ |
| Using life | > 3000 hours |
Ceramic heater are efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Most plastics and many other materials absorb infrared wave best in this range, which makes the ceramic heater the most efficient infrared radiant emitter on the market.
Specification| Size(mm) | Type | Power |
| 60*60 | Curved/flat/Hollow | Available in 125w and 250w |
| 122*60/120*60 | Curved/flat/Hollow | Available from 125w to 500w |
| 122*122/120*120 | Curved/flat/Hollow | Available from 150w to 750w |
| 245*60 | Curved/flat/Hollow | Available from 150W to 1000w |
| 245*80 | Curved/flat/Hollow | Available from 150w to 1000W |
| Item Name | Type-Classify | Details |
Ceramic Heater
Full Trough | Full Trough Element | Available from 60 - 1000 watts |
| Dimensions: 245*80;245*60mm;122*60mm;60*60mm |
| Nickel chrome 2080 resistance wire |
| Heater Voltage: 230 Volts standard (other voltagesavailable on request) |
| Useful wavelength range: 2-10 microns |
| Max Working Temp:720 °C |
| Average Operating Life-Up to 20,000 hrs depending onconditions |
| Recommended radiation distance from heater is 100 mm to 200 mm |
| Supplied with 100mm ceramic beaded power leads |
Advantage 1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted : We can produce any your design as long as you provide us the drawing.
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the foreigner market
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Check below for more information on placing| 1. Inquiry-Professional and accurate quotation. |
| 2. Confirm the price, trade term, lead time, artwork, payment term etc. |
| 3. MICC sales send the Proforma Invoice with MICC seal. |
| 4. Customer arranges the payment for deposit and sends us bank slip. |
| 5.Initial Production step-Inform the clients that we have got the payment. And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
| 6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
| 7. End Production-Mass production products photos. |
| 8. Clients make payment for balance and MICC ships the goods. Inform the tracking number and check the status for clients. |
| 9. The order is finished perfectly when you receive the goods and get satisfied with them . |
| 10. Feedback to MICC about Quality , Service, Market Feedback & Suggestion. And we will do better . |
Shipment
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
