| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T |
| Prod Model: | CNWC |
|---|---|
| Material: | Mainly CRC |
| Cabinet Roof: | Slanting Canopy Type |
| Cabinet Relative Humidity: | ≤95%, 25ºC |
| Operating Temperature: | 0~55ºC |
| Thermal Insulation: | 10mm Thick ,Non-Flammable Insulation Foam |
| Phase: | Depend on The Mechine |
| Type: | Depend on The Mechine |
| Protection: | IP55 |
| Application: | Outdoor Battery |
| Standby UPS: | Depend on The Mechine |
| Output Capacity: | Depend on The Mechine |
| Equipment Mode: | Depend on The Mechine |
| Brand: | Consnant |

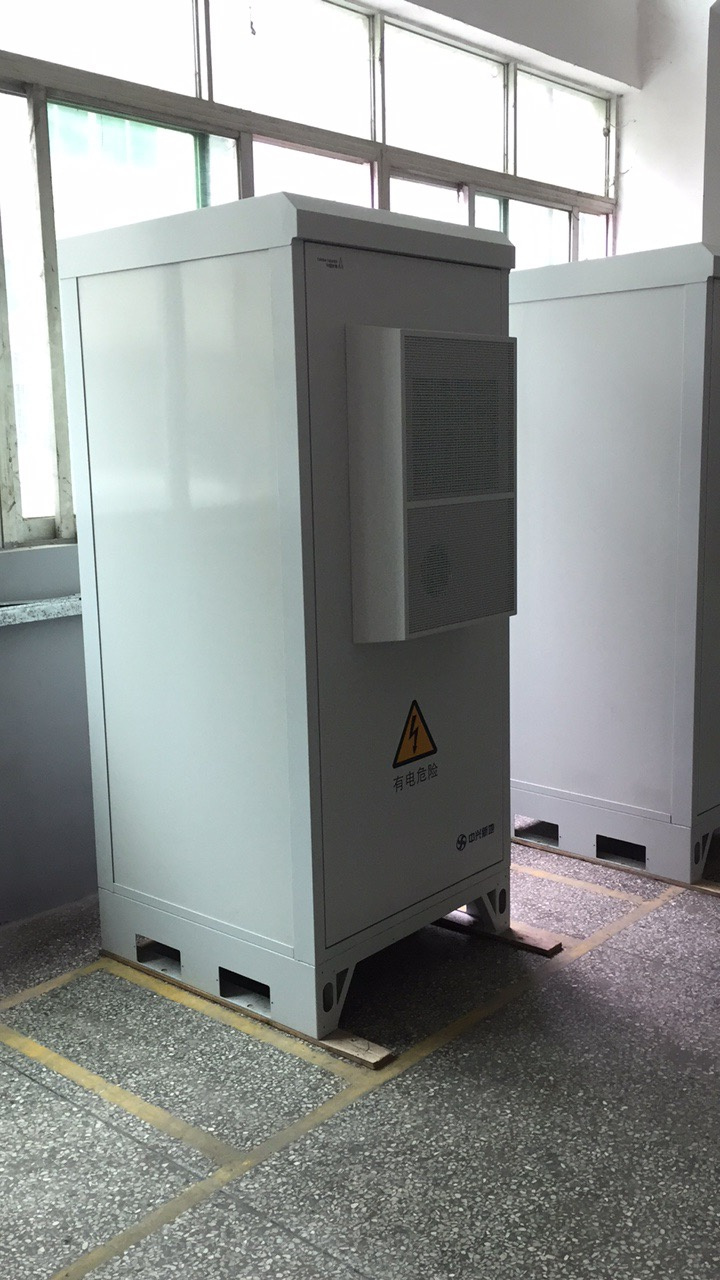

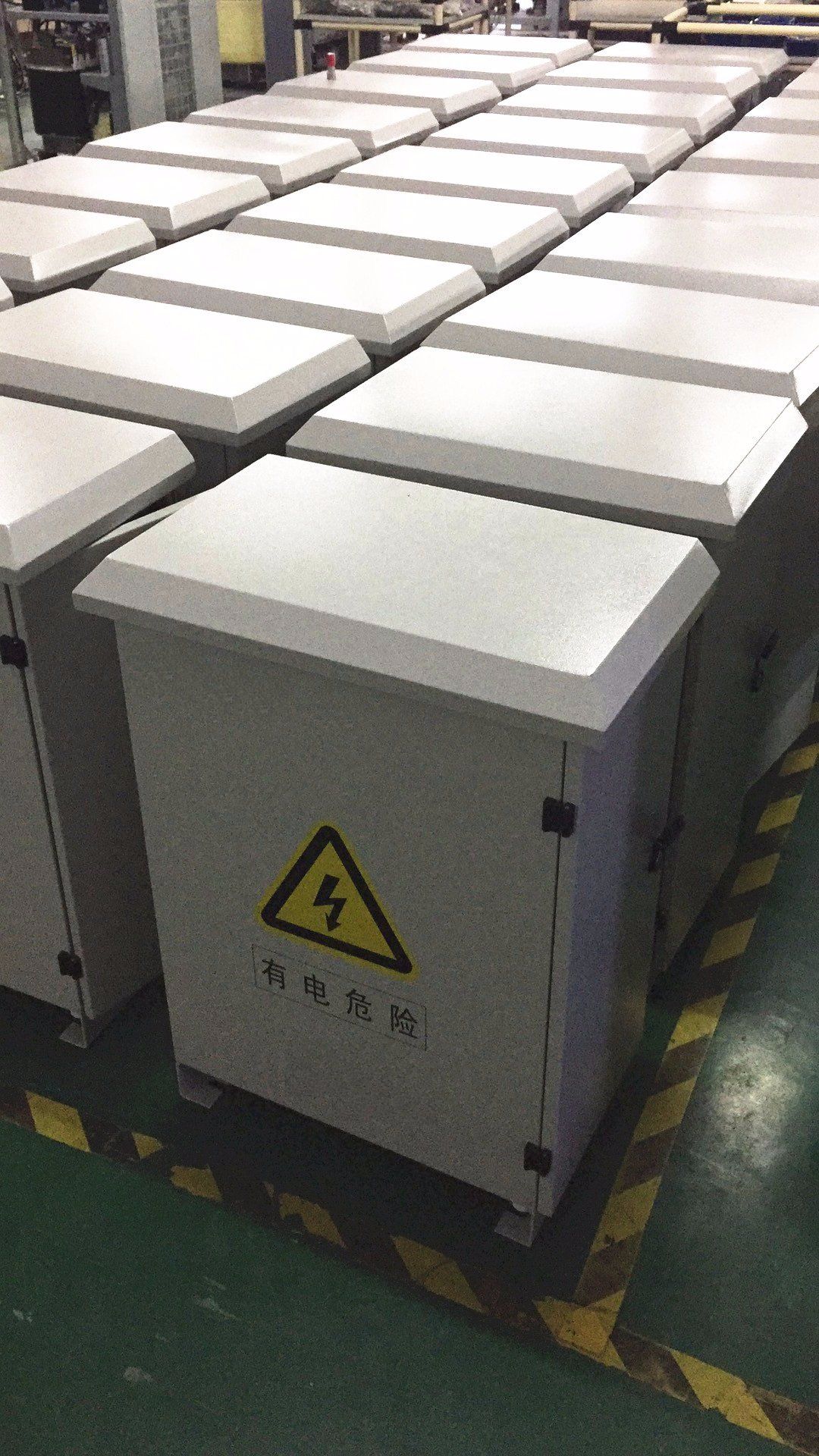

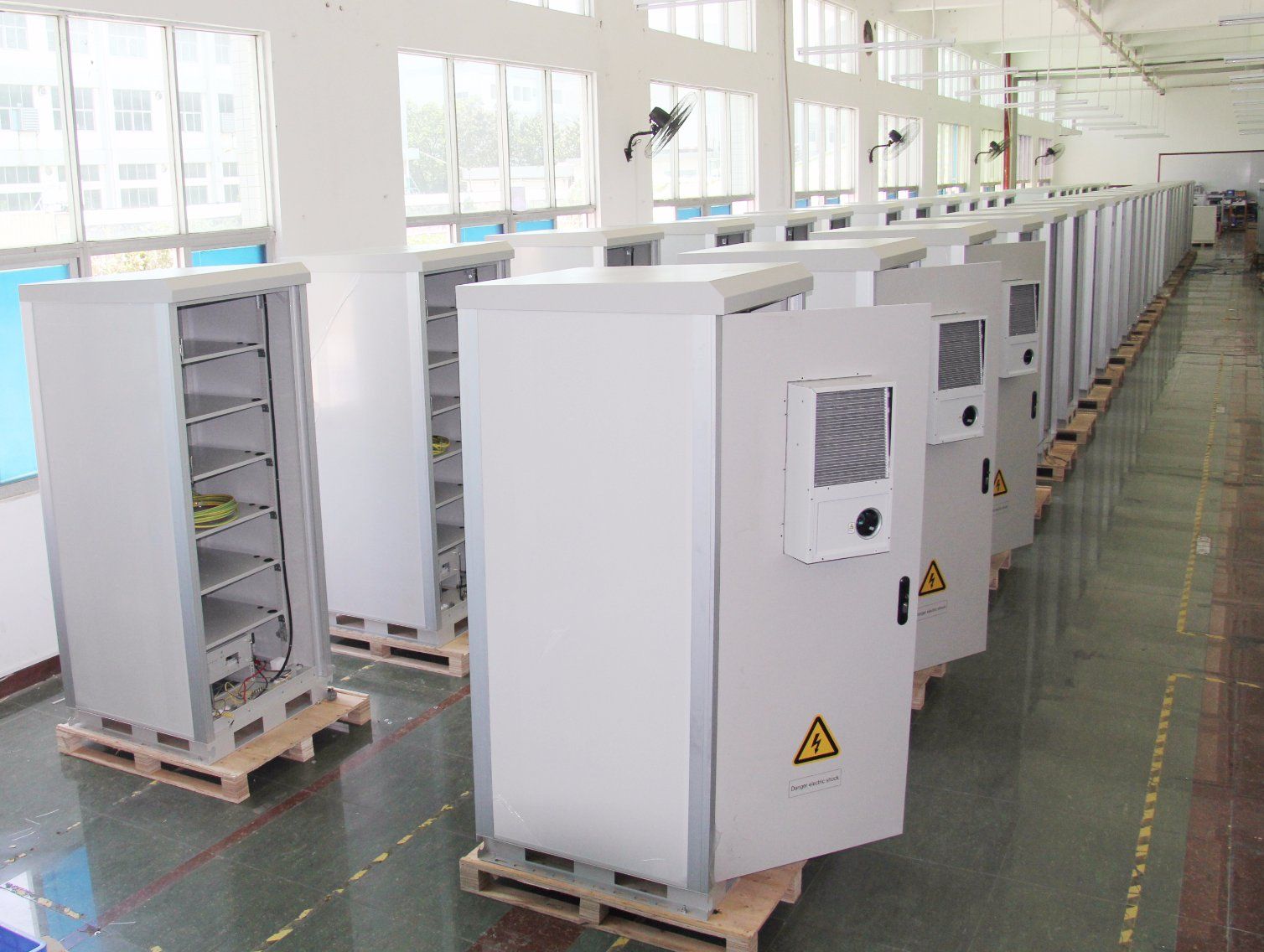

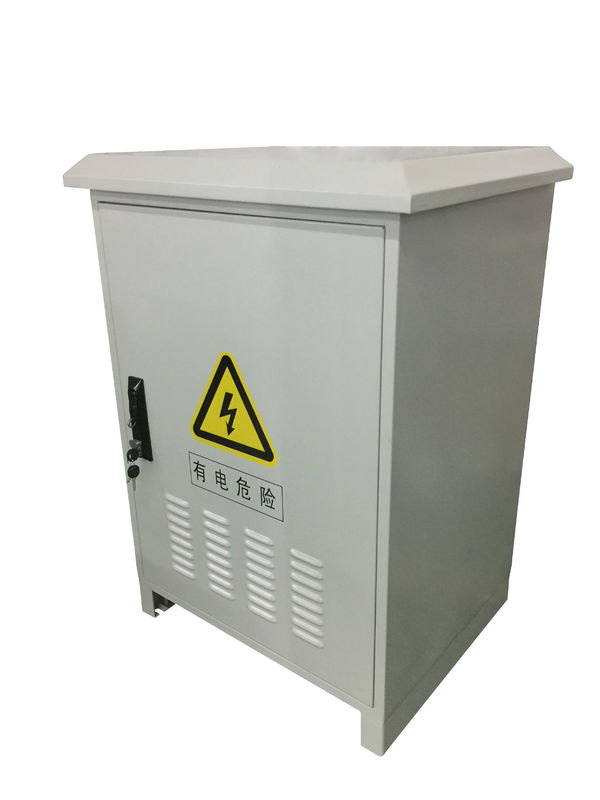

Modular Design IP55 Outdoor Cabinet With Good Rust-proof Capacity
Fully Customization from dimension to materials!
Brief Introduction (for reference):
Two series outdoor cabinet:
Advantages:
Single cabinet covers area < 1 square meter. The site is easy to obtain, so the cabinet can be applied to the top of the hill, roof, street and other scenes;
Support the installation of main equipment, transmission equipment, power supply, battery and other equipment from different manufacturers and different installation methods.
Fine sub-class temperature control save energy maximumly; cabinet with insulated sandwich panels weaken the impact of solar radiation on the cabinet temperature
Modular design support bulk shipment and site installation, and easy to expand
Aluminum profile frame structure, outside panel adopts color steel panel with excellent performance of antiseptic, passing the salt spray test for 960H.
FAQ:
Q: Could you do custom-made products?
A: Yes, please show us the drawing of the goods you need, or your requirement for the products, customized UPS is available.
Q: Can you print my picture or logo onto the products?
A: Yes, OEM and ODM accepted
Q: What included in the products?
A: It includes cabinet unit, user manual, 2% free spares together with shipment for urgent issue. Test certificate(optional)
Q: Nobody in our company know how to install the cabinet?
A: First, We can show you the user manual, the installation drawing or the video. Second, online guide will be provided all the time. Third, we can also despatch engineer to assist you solve the problem if necessary ( But you are requested to pay for the cost of ticket, hotel etc. ). Or you can despatch engineer(s) to our company to get training.
Specification:
| Item | Specification |
| Weight | 105KG( not including electronics and battery) |
| User space | 40U |
| Flame material | Galvanized steel sheet |
| Wall material | Color steel sandwich panel: color steel+polystyrene(polyurethane PU optional) |
| Wall thick | 45mm |
| Door lock | Three point security locks,European standard , |
| IP | IP55 |
| Cable laying arrangement. | 8*Φ50mm |
| Delivery form | Fully equiped |
| Operating temperature | -40ºC~+70ºC |
| Cabinet relative humidity | 5%~100% |
| Air Circulation & Heat exhaust arrangement | |
| Temperature control | PC300 |
| TCO2 power dissipation | 230W @L35/L35 |
| TCO2 refrigerating capacity | 400W @L35/L35 |
| Heater power consumption(optional) | 500W |
