Prod Model:	CNWC
Material:	Mainly CRC
Cabinet Roof:	Slanting Canopy Type
Cabinet Relative Humidity:	≤95%, 25ºC
Operating Temperature:	0~55ºC
Thermal Insulation:	10mm Thick ,Non-Flammable Insulation Foam
Phase:	Depend on The Mechine
Type:	Depend on The Mechine
Protection:	IP55
Application:	Outdoor Battery
Standby UPS:	Depend on The Mechine
Output Capacity:	Depend on The Mechine
Equipment Mode:	Depend on The Mechine
Brand:	Consnant

Product Description

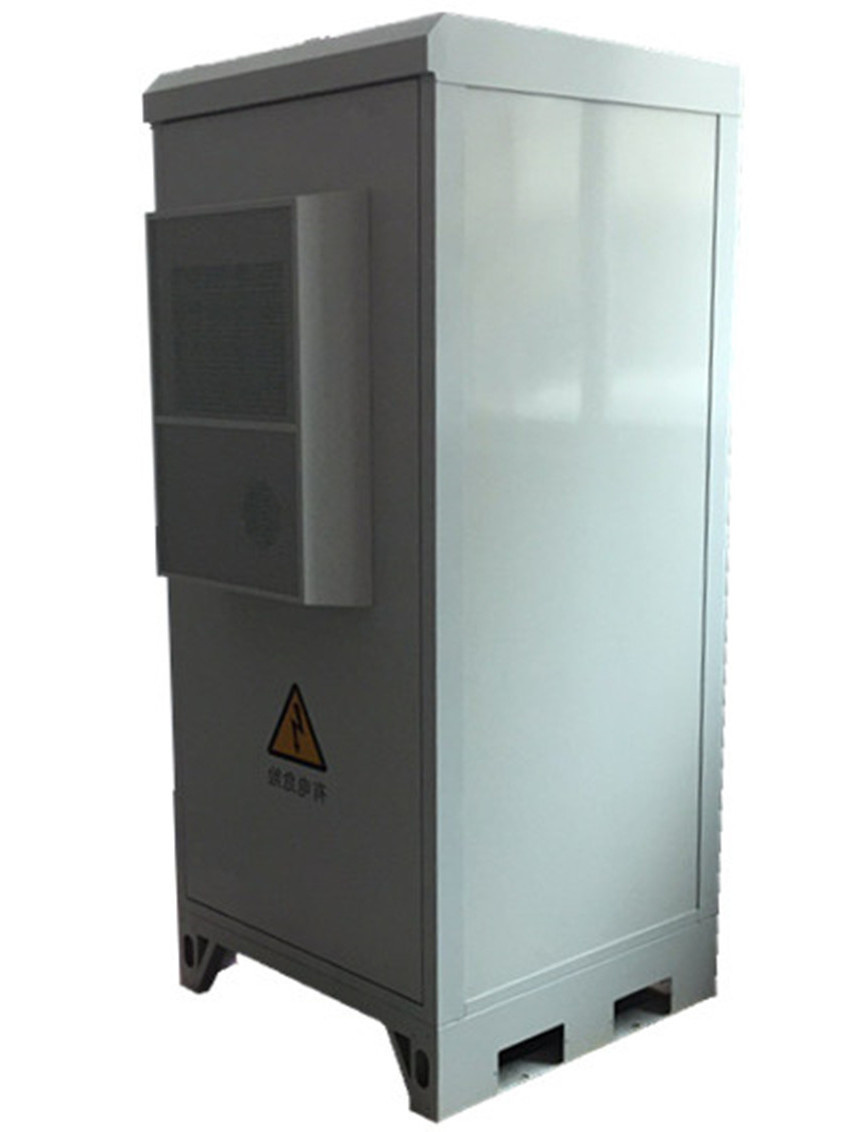

Modular Design IP55 Outdoor Cabinet With Good Rust-proof Capacity

Fully Customization from dimension to materials!

Brief Introduction (for reference):

Two series outdoor cabinet:

Functional cabinet that covers power cabinet, electronics cabinet and battery cabinet;
1U holding cabinet(outdoor macro site, RRU),2U holding cabinet, 3U holding cabinet

Advantages:

Small volume, site can be obtained easily.

Single cabinet covers area < 1 square meter. The site is easy to obtain, so the cabinet can be applied to the top of the hill, roof, street and other scenes;

Flexible housing and strong adaptability

Support the installation of main equipment, transmission equipment, power supply, battery and other equipment from different manufacturers and different installation methods.

Subdivision temperature control, energy conservation and emission reduction

Fine sub-class temperature control save energy maximumly; cabinet with insulated sandwich panels weaken the impact of solar radiation on the cabinet temperature

Modular design, convenient provision

Modular design support bulk shipment and site installation, and easy to expand

Good rust-proof capacity, strong structure

Aluminum profile frame structure, outside panel adopts color steel panel with excellent performance of antiseptic, passing the salt spray test for 960H.

Specification:

Item	Specification
Weight	105KG( not including electronics and battery)
User space	40U
Flame material	Galvanized steel sheet
Wall material	Color steel sandwich panel: color steel+polystyrene(polyurethane PU optional)
Wall thick	45mm
Door lock	Three point security locks,European standard ,
IP	IP55
Cable laying arrangement.	8*Φ50mm
Delivery form	Fully equiped
Operating temperature	-40ºC~+70ºC
Cabinet relative humidity	5%~100%
Air Circulation & Heat exhaust arrangement
Temperature control	PC300
TCO2 power dissipation	230W @L35/L35
TCO2 refrigerating capacity	400W @L35/L35
Heater power consumption(optional)	500W
