| Prod Model: |
HTGA-A-DW |
| Operating Temperature: |
-26 ~+65 Degree Centigrade |
| Material: |
Aluminum Outer Tube and Stroke Rod |
| Characteristic1: |
Metal Gear Rolling |
| Characteristic2: |
Aluminum Alloy Housing |
| Characteristic3: |
Robust |
| Potentiometer: |
1 K, 5k, 10k |
| Max Load: |
1500n |
| Duty Cycle: |
20% (High-Speed Linear 10%) |
| Max Static Force: |
3000n |
| Life Time: |
50 000 Complete Cycles |
Product Description
Why choose us?" QUALITY IS OUR CULTURE "
"WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE" 1.Competitive Advantage Products2.Full REFUND in case of Bad quality OR Late Delivery3.Payment By Paypal, Western Union, TT etc we all can accept.4.Confidentiality Agreement " Business Secret CONTRACT "5.Quality Assurance CONTRACT6.Small Order Welcomed

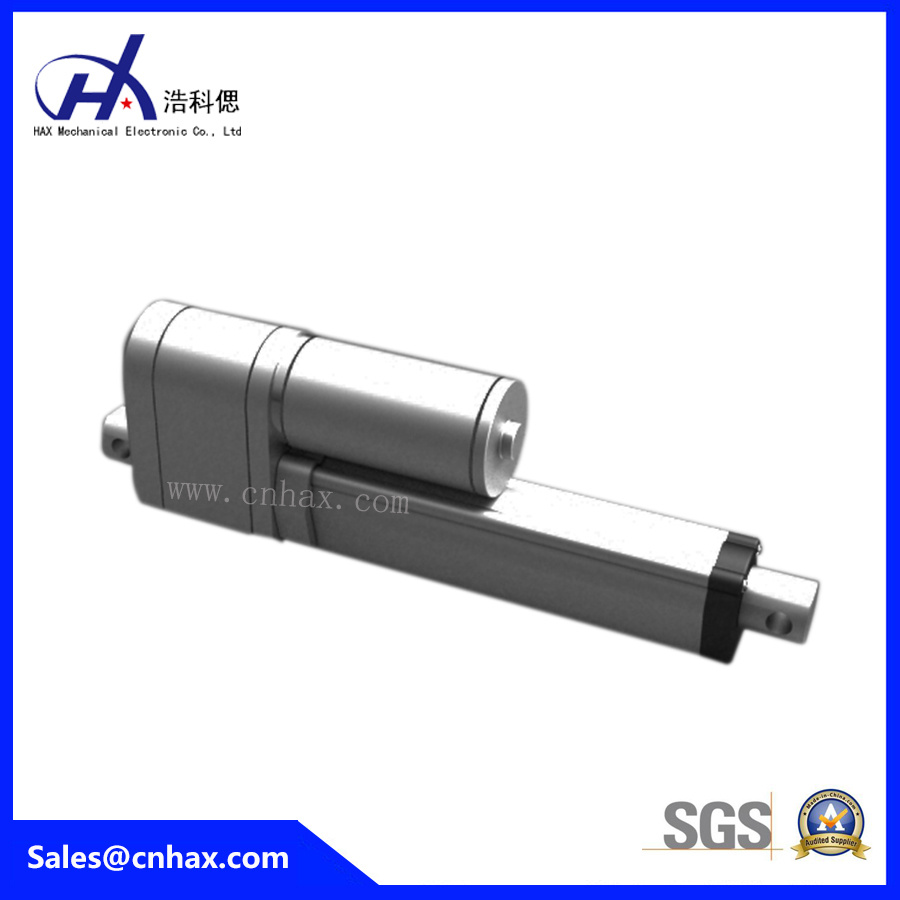

Features of HTGA-A-DW linear actuatorMiniature Linear DC Actuator
Small motor actuator with ACME screws,built-in Micro switch and an internal diode,can automatically stop
and enables the change of direction by simply reversing the applied voltage polarity. stroke length can been
customized. switches are not made to be adjustable. Inversely proportional to the speed and power. position
feedback is possible

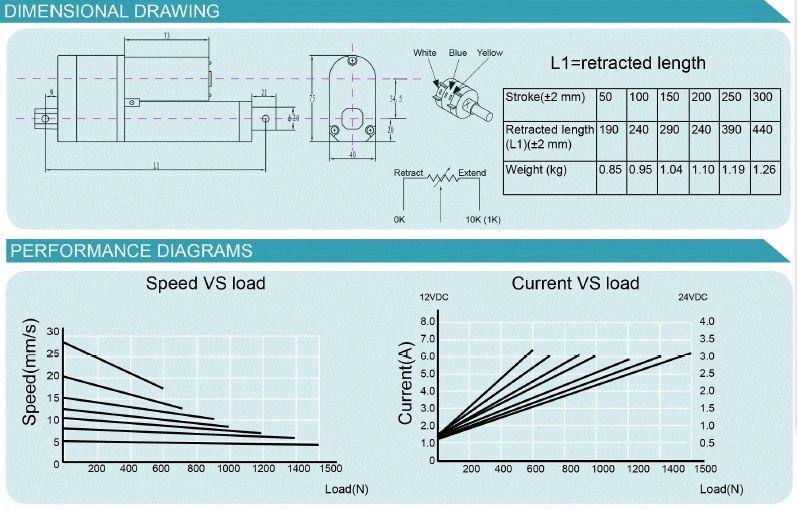

MECHANICAL DATA
• Operating temperature -26ºC~+65ºC
• Aluminum outer tube and stroke rod
• Protection IP54 or IP65
• 12 or 24 or 36 or 48VDC
• Preset limit switches
• Metal Gear rolling
• Potentiometer: 1 K, 5K, 10K
• Aluminum alloy housing
• Low price
• Robust
FOECE DATA
• Max load 1500 N
• Duty cycle 20% (High-speed linear 10%)
• Max static force 3000N
• Life time 50 000 complete cycles
The linear actuators are widely used in electric sofas, massage chairs, dental chairs, electric medical beds,
traction bed, television movements counters, furniture, industrial electric lifting system, camera rack, projector,
wedding system, smart home furniture , home decoration, automobiles, locomotives, ships and other
movements and other fields.

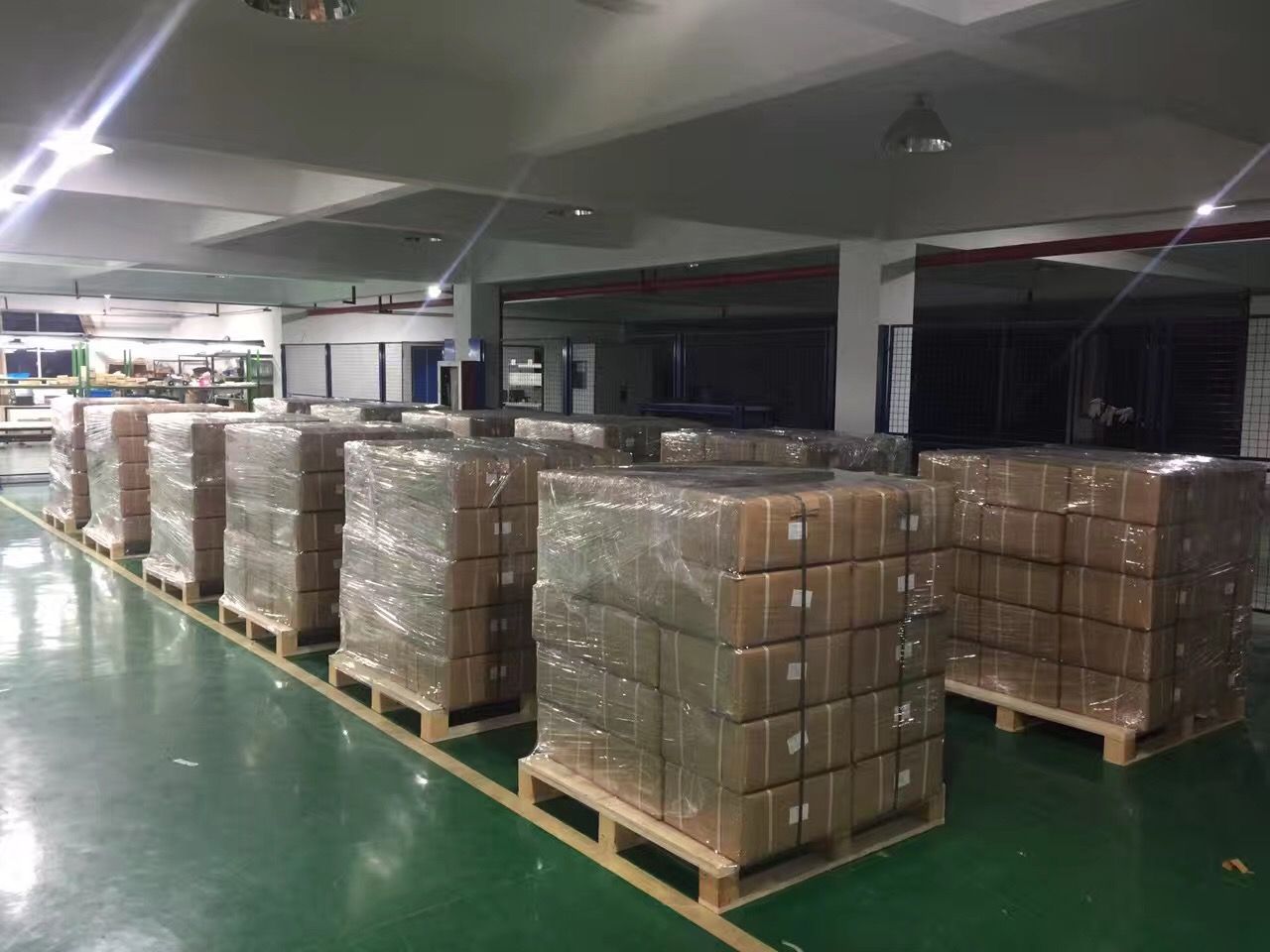

Packaging & Shipping Export Standard packing which can withstand rough handling. Samples' delivery time:3-5 working days after we received the deposit. Bulk quantity delivery time: according to the specific quantity.3. Delivery term: FOB & CIF & CFR & EXW4. Shipment: your appointed forwarder is acceptable or we send to your Chinese agent
Our Services - Customization and OEM are welcome.
- Trade assurance orders are favored. 4. Other service which you need.

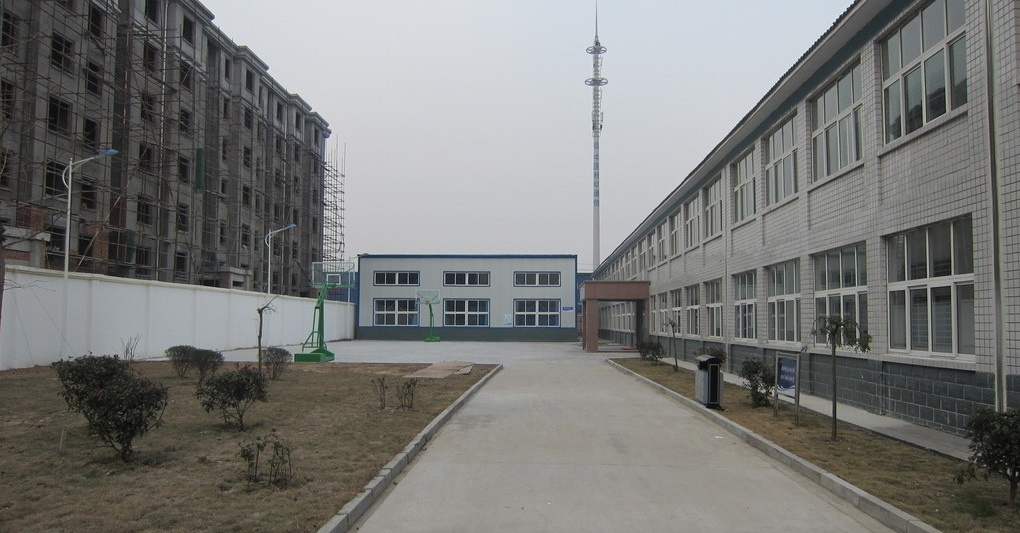

About Us: Changzhou HAX Mechanical Electronic Co.,Ltd, establish in 2011, located in Yangtze River Delta economic
