| Prod Model: |
HTGA-DW |
| Operating Temperature: |
-20 ~+65 Degree Centigrade |
| Material: |
Aluminum Outer Tube and Stroke Rod |
| Potentiometer: |
1k,5k, 10k |
| Characteristic2: |
Preset Limit Switches |
| Characteristic3: |
Powder Metal Gears |
| Max Load: |
900n |
| Duty Cycle: |
20% (High-Speed Linear 10%) |
| Max Static Force: |
2300n |
| Life Time: |
50 000 Complete Cycles |
| Characteristic4: |
Aluminum Alloy Housing |
Product Description
Why choose us?" QUALITY IS OUR CULTURE "
"WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE" 1.Competitive Advantage Products2.Full REFUND in case of Bad quality OR Late Delivery3.Payment By Paypal, Western Union, TT etc we all can accept.4.Confidentiality Agreement " Business Secret CONTRACT "5.Quality Assurance CONTRACT6.Small Order Welcomed

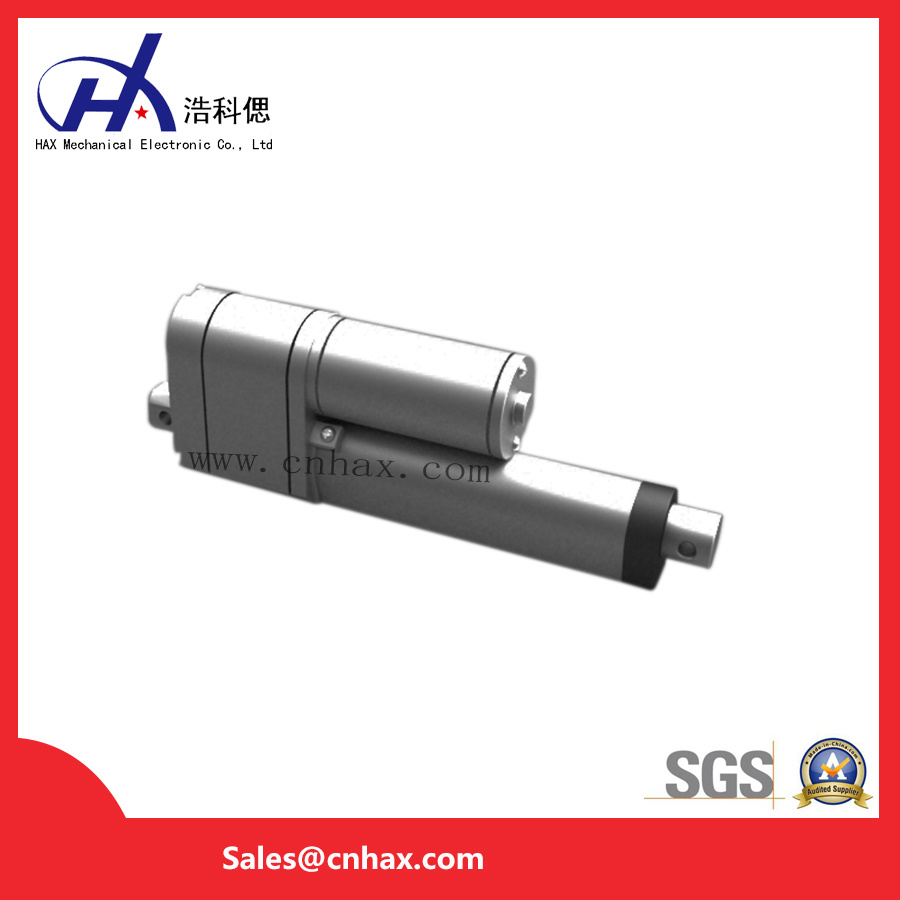

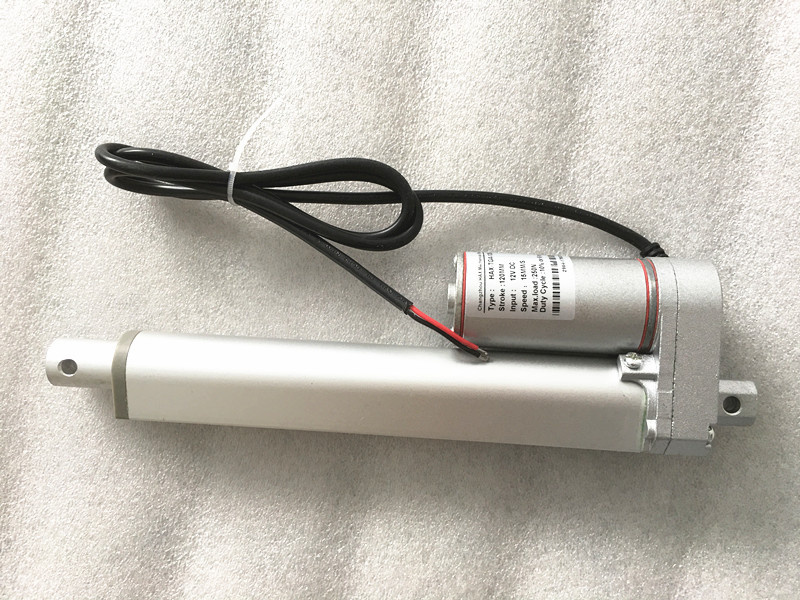

Features of HTGA-DW linear actuatorMiniature Linear DC Actuator
Small motor actuator with ACME screws,built-in Micro switch and an internal diode,can automatically stop and enables the
change of direction by simply reversing the applied voltage polarity. stroke length can been customized. switches are not
made to be adjustable.Inversely proportional to the speed and power. position feedback is possible

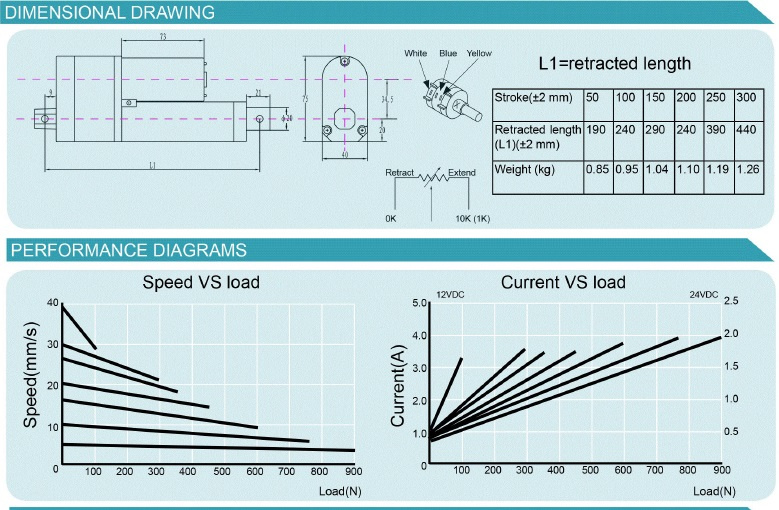

MECHANICAL DATA
• Operating temperature -26ºC~+65ºC
• Aluminum outer tube and stroke rod
• Protection IP54 or IP65
• 12 or 24 or 36 or 48VDC
• Preset limit switches
• Powder metal gears
• Potentiometer:1K,5K, 10K
• Aluminum alloy housing
• Low price
• Robust
FOECE DATA
• Max load 900N
• Duty cycle 20%(High-speed linear 10%)
• Max static force 2300N
• Life time 50 000 complete cycles

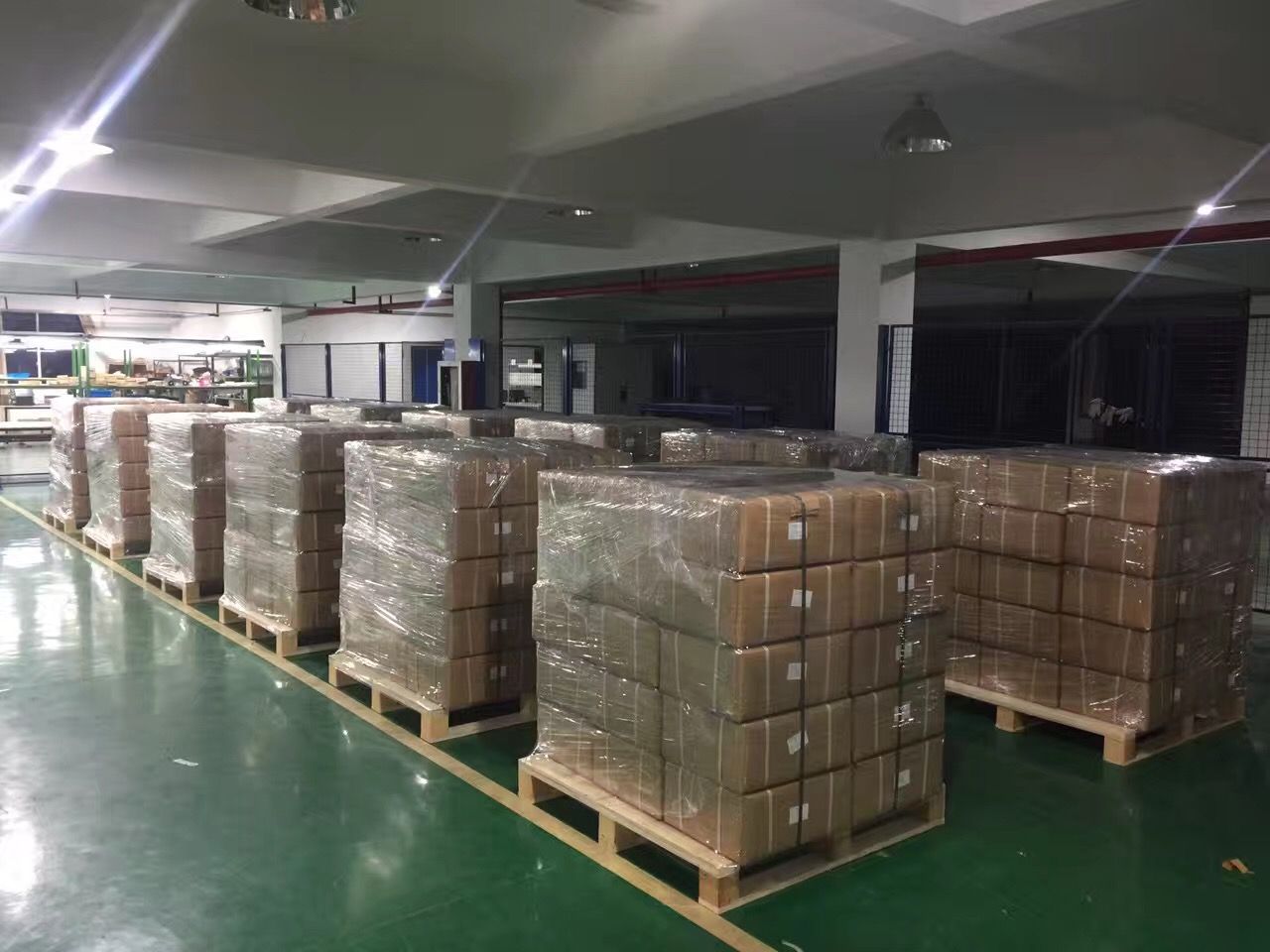

Packaging & Shipping Export Standard packing which can withstand rough handling. Samples' delivery time:3-5 working days after we received the deposit. Bulk quantity delivery time: according to the specific quantity.3. Delivery term: FOB & CIF & CFR & EXW4. Shipment: your appointed forwarder is acceptable or we send to your Chinese agent
Our Services - Customization and OEM are welcome.
- Trade assurance orders are favored. 4. Other service which you need.

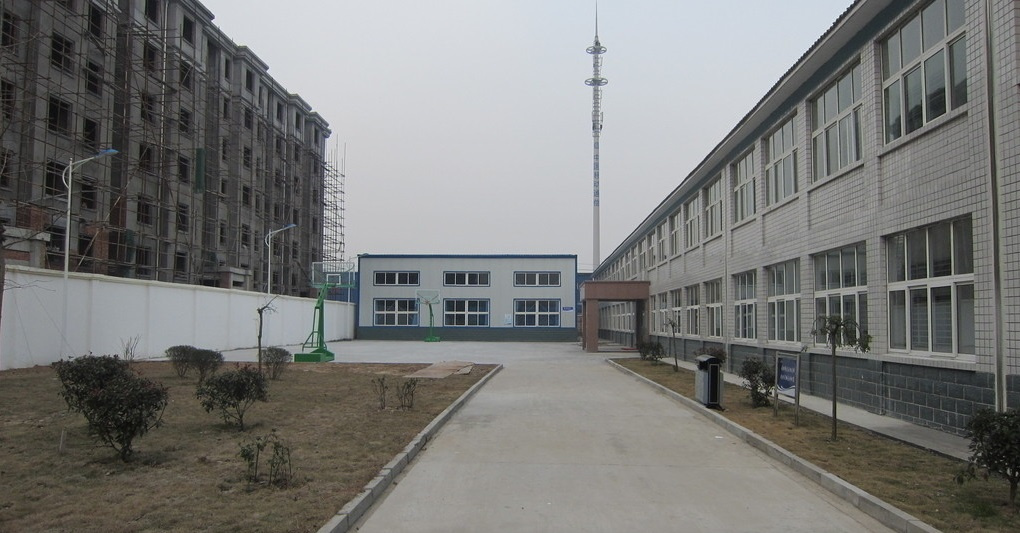

About Us: Changzhou HAX Mechanical Electronic Co.,Ltd, establish in 2011, located in Yangtze River Delta economic
zone, Changzhou City.We are the factory which gathers production and sales of all kind gas springs and liner actuators. Our mainly products are
all kinds of DC linear actuators, AC linear actuators, servo linear actuators, lift gas springs, lockable gas springs etc. Our gas springs and liner actuators are mainly used for all kinds of recliner, massage chair, beds, windows, solar
equipments, cars, buses, furnitures, boats , medical equipment, beauty chairs, aviation, many machines , agriculture
machine equipment and so on. HAX has strict quality control system, and full sets of advanced equipment. We have flexible mode of operation, stable quality,
complete catalog, excellent quality. HAX enjoys a good reputation in domestic and foreign market. Our product exports to
Europe, America, Southeast Asia, the Middle East, Russia, Africa and other countries.HAX now is growing and expanding, we have customers throughout the world. We sincerely hope: Hand in hand, we together create a better future!
