| Prod Model: |

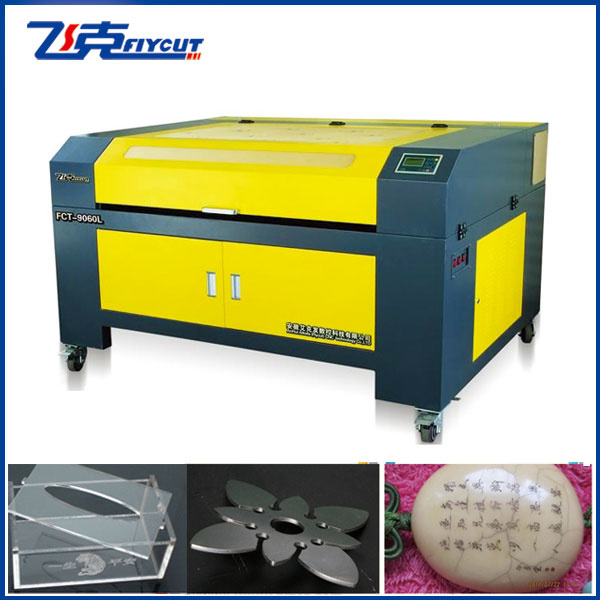

FCT-9060 |
| Markets: |
North America,South America,Southeast Asia |
| Usage: |
Rubber |
| Power: |
Small Power |
| Drive Type: |
Stepper Drive |
| Control: |
Automatic |
| Laser Type: |
CO2 |
| Current: |
AC |
| Condition: |
New |
| Engraving Machine Type: |
Cutting Machine |
Product Description
Feature:
1.Adopt high quality image MFC videograbber.
2.Adopt imported HD CCD camera,make sure the postioning accuracy.
3.CCD vision system pick up the image and transfer it to the computer,after processor of the software,the computer system can get the right position of the workpiece,give the signal to the controller of the machine,so the machine can cut the images out.
4.The alaming cooling case ensures that the machine works safely.
Great value-added service:
Optional Functions:Servo motor control system ,red dot system,safety swithch,up-down table,multi-head system,can raise the working efficiency and reduce the production cost.
Application:
Meet the demand of professional requirements of cutting and scanning on large size garments,fabric,lether,furniture,packing,printing,advertising,decoration,cnstruction,paper,teplate and other industries.
Suitable material:
fabric,leather,paper,wood,organic glass,rubber,plastic and sythetic materials.
Technical parameters:
Model |
FCT-6040L |
FCT-9060L |
FCT-1290L |
FCT-1512L |
Working size |
600*400mm |
900*600mm |
1200*900MM |
1500*1200mm |
Machine size |
1150*800*1100mm |
2000*1100*1100mm |
2100*1400*1100mm |
2200*1700*1200mm |
Laser tube power |
60W |
60W |
80W |
80W |
Laser intensity control |
Analogue or PMW |
Laser mirror |
Imported mirror |
Focus lens |
mported mirror |
Laser table |
Knock-down aluminum bars or honey comb table |
Industry chiller |
Water pump or CW-3000 water chiller |
CW-3000 water chiller |
Air compressor |
Optional |
Exhaust fan |
Big power exhaust fan |
Working speed |
0-24000mm/min |
Max.scan accuracy |
2500dpi |
Min.character |
Chinese 1mm*1mm,English 0.8mm*0.8mm |
Positioning accuracy |
±0.01mm |
Support format |
BMP,GIF,JPG,TGA,TIFF,PLT,CDR,DMG,DXF |
Motor driver |
Stepper motor |
Cutting thickness |
0-20mm depends on different material |
Net weight |
300KG |
500KG |
600KG |
800KG |
Any quesiton please kindly contact with us:
Alice (overseas department )
Tel:+86 13966703473
