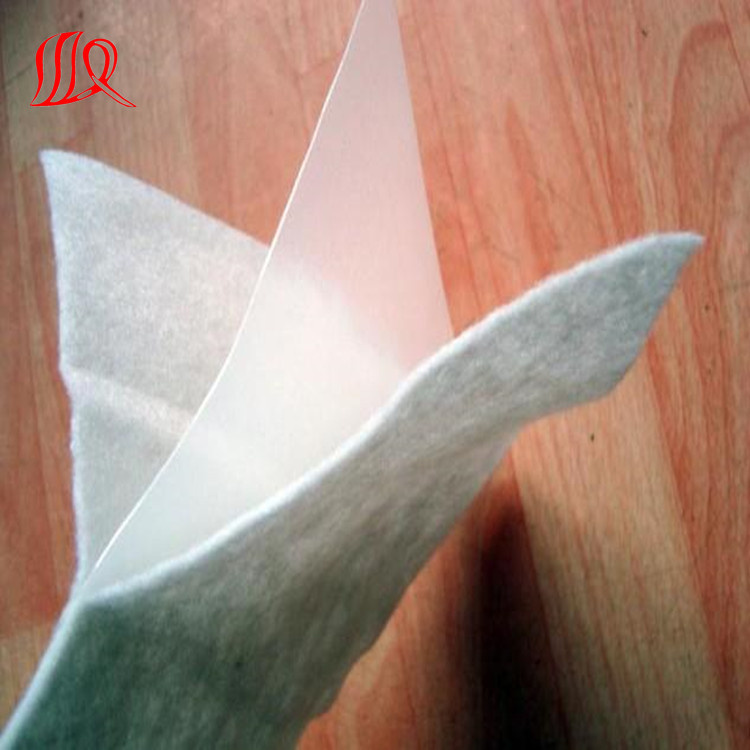

Laminated Geotextile and Geomembrane, 8m Width
| Price: |
US $ 0.9/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
5000/Square Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
2-layers or multi-layers |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Geotextile: |
Can Be Long Fibre or Short Fibre |
| Certificate1: |
ISO9001 |
| Material: |
HDPE |
| Color: |
White |
Product Description
SpecificationsManufacturer, 2 layers or multi-layers at request.
Size: 2-6m, length is 50-100m
Laminated Geotextile and Geomembrane,1-8m width----composite geomembrane 1,Good impermeable;
2,Excellent environmental stress resistant cracking performance; 3,Excellent performance of chemical erosion resistance; 4,Big scope of application temperature and long service life
Application 1.Environmental protection, sanitation (such as landfill, waste water treatment, toxic
and harmful chemicals disposal sites, storage of dangerous goods , industrial waste,
construction and demolition waste, ect.)2.Water (such as impervious, stop water loss, and reinforcing of lakes, and the impervious,
slope protection, ect.)3.Municipal projects (underground subway, engineering underground and reservoirs
on the roof, and the park on the roof, the lining in the sewage pipes, ect.4.Garden (artificial lakes, ponds, the lining of tank in golf course, slope protection, ect.5.Petrochemical(chemical plants, oil refineries, oil tank of fill stations , chemical reactions pound,
the lining of settling basin, second lining, ect.)
6.Mining( washing and selecting pool , heap pool, ashery, dissolving pool, settling basin ,
stock dump, lining of tailing pond, ect.)
7.Agriculture (reservoirs, drinking water tank, water storage pond, irrigation systems)
8.Aquaculture(fish ponds, the lining of breeding shrimp tank, slope protection of sea slug tank)
9.Salt industry (crystallization pond, thatch of salt pond, salt membrane, plastic thatch
of salt pond)
Features:
This compound geomembrane is compounded by more than two kinds of materials, including non woven geotextiles (or fiber-glass net) and macromolecule materials (such as PE membrane (HDPE or LDPE), EVA membrane).
We also can manufacture this compound geomembrane according to customers' requirements.
Type:
One piece of geotextile and one piece of membrane; Weight of base geotextile: 100-1000g/m²; Thickness of geomembrane: 0.1-1.5mm.
Two pieces of geotextiles and one piece of membrane; Weight of base geotextile: 80-600g/m2; Thickness of geomembrane: 0.2-1.5mm.One piece of geotextile and two pieces of membranes. Weight of base geotextile: 100-1000g/m²; Thickness of geomembrane: 0.1-0.8mm.5-layer for vapor barrier: one piece of geotextile, two pieces of membranes, one piece of grid, one piece of aluminum. Weight of base geotextile: 100-1000g/m2; Thickness of geomembrane: 0.1-0.8mm.The use of composite geomembrane1.The river bank, lake dam, tailings dam, waste water dam and reservoir area, channels, build liquid pool (pit, Kuang).2.subways, basements and tunnels, the tunnel impermeable lining.3.the roadbed and other foundation saline seepage.Embankment, the dam of the level of impervious blanket, the vertical impermeable layer of foundation, construction of the cofferdam, the scrap yard.Seawater, freshwater farms.Roads, railways, high-speed highway of roadbed; waterproof layer of swelling soil and collapsible loess.Technical data Acupuncture common short-fabric non-woven / polyethylene composite geotextile strength
requirementsUnit weight, g/m2 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | |
Tensile at break kN/ m | 5 | 7.5 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | 20 | MD/CD |
Elongation % | 30~100 |
CBR strength kN | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 | 3.2 | |
Tear strength kN | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 | 0.70 | MD/CD |
Racking strength N/cm | ≥6 |
Note: According to the specifications of thickness per unit area, the actual specifications in the range of specifications between the adjacent table, according to the interpolation method to calculate the appropriate evaluation indicators; beyond the scope of the table, the assessment indicators to be negotiated by the supply and demand. |
Hydrostatic pressure tolerance specification data:Thickness of membrane
mm | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 |
One textile one membrane mm | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 |
Two textile one membrane mm | 0.5 | 0.6 | 0.8 | 10. | 1.2 | 1.4 | 1.6 | 1.8 |
Hongxiang New Geo-Material Co., Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June, 1987 and become a provincial enterprise in Oct. 1997. It occupies a land of 300, 000 square meters, with total asset RMB320, 000, 000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
