| Prod Model: |
150/0.3/150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Width: |
2-6m |
| Geotextile: |
100-300GSM |
| Geomembrane: |
0.2-1.0mm |
| Type: |
Composite Geomembrane |
Product Description

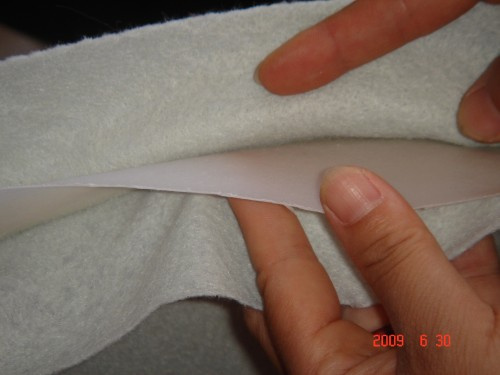

Geomembrane and Geotextile Composite Geomembrane
Description: Composite Geomembrane is made by compositing geotextiles with PE geomembrane.
There are three types: JZ-CG1: one layer textile and one layer membrane (weight of textiles:100-1000g/m; thickness of membrane:0.1-1.5mm)
JZ-CG2: one layer textile and two layers membrane (weight of textiles:100-1000g/m; thickness of membrane:0.1-1.5mm)
JZ-CG3: two layers textile and one layer membrane(weight of textiles:80-600g/m; thickness of membrane:0.2-1.5mm)
Features: Composite Geomembrane have both bleeding resistance and drainage characteristic. It is with high friction coefficient, endurable to puncture, aging, acid and alkali, preventing the loss of water and soil erosion.
1,Good impermeable;
2,Excellent environmental stress resistant cracking performance;
3,Excellent performance of chemical erosion resistance;
4,Big scope of application temperature and long service life
Application 1.Environmental protection, sanitation (such as landfill, waste water treatment, toxic and harmful chemicals disposal sites, storage of dangerous goods , industrial waste, construction and demolition waste, ect.)
2.Water (such as impervious, stop water loss, and reinforcing of lakes, and the impervious, slope protection, ect.)
3.Municipal projects (underground subway, engineering underground and reservoirs on the roof, and the park on the roof, the lining in the sewage pipes, ect.
4.Garden (artificial lakes, ponds, the lining of tank in golf course, slope protection, ect.
5.Petrochemical(chemical plants, oil refineries, oil tank of fill stations , chemical reactions pound, the lining of settling basin, second lining, ect.)
6.Mining( washing and selecting pool , heap pool, ashery, dissolving pool, settling basin ,stock dump, lining of tailing pond, ect.)
7.Agriculture (reservoirs, drinking water tank, water storage pond, irrigation systems)
8.Aquaculture(fish ponds, the lining of breeding shrimp tank, slope protection of sea slug tank)
9.Salt industry (crystallization pond, thatch of salt pond, salt membrane, plastic thatch of salt pond)
Features:
This compound geomembrane is compounded by more than two kinds of materials, including non woven geotextiles (or fiber-glass net) and macromolecule materials (such as PE membrane (HDPE or LDPE), EVA membrane).
We also can manufacture this compound geomembrane according to customers' requirements.
Type:
One piece of geotextile and one piece of membrane; Weight of base geotextile: 100-1000g/m²; Thickness of geomembrane: 0.1-1.5mm.
Two pieces of geotextiles and one piece of membrane; Weight of base geotextile: 80-600g/m2; Thickness of geomembrane: 0.2-1.5mm.
One piece of geotextile and two pieces of membranes. Weight of base geotextile: 100-1000g/m²; Thickness of geomembrane: 0.1-0.8mm.
5-layer for vapor barrier: one piece of geotextile, two pieces of membranes, one piece of grid, one piece of aluminum. Weight of base geotextile: 100-1000g/m2; Thickness of geomembrane: 0.1-0.8mm.
The use of composite geomembrane 1.The river bank, lake dam, tailings dam, waste water dam and reservoir area, channels, build liquid pool (pit, Kuang).
2.subways, basements and tunnels, the tunnel impermeable lining.
3.the roadbed and other foundation saline seepage.Embankment, the dam of the level of impervious blanket, the vertical impermeable layer of foundation, construction of the cofferdam, the scrap yard.Seawater, freshwater farms.Roads, railways, high-speed highway of roadbed; waterproof layer of swelling soil and collapsible loess.
Technical data Acupuncture common short-fabric non-woven / polyethylene composite geotextile strength requirements
Unit weight, g/m2 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
|
Tensile at break kN/ m |
5 |
7.5 |
10.0 |
12.0 |
14.0 |
16.0 |
18.0 |
20 |
MD/CD |
Elongation % |
30~100 |
CBR strength kN |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3.0 |
3.2 |
|
Tear strength kN |
0.15 |
0.25 |
0.32 |
0.40 |
0.48 |
0.56 |
0.62 |
0.70 |
MD/CD |
Racking strength N/cm |
≥6 |
Note: According to the specifications of thickness per unit area, the actual specifications in the range of specifications between the adjacent table, according to the interpolation method to calculate the appropriate evaluation indicators; beyond the scope of the table, the assessment indicators to be negotiated by the supply and demand. |
Hydrostatic pressure tolerance specification data:
Thickness of membrane
mm |
0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
0.8 |
1.0 |
One textile one membrane mm |
0.4 |
0.5 |
0.6 |
0.8 |
1.0 |
1.2 |
1.4 |
1.6 |
Two textile one membrane mm |
0.5 |
0.6 |
0.8 |
10. |
1.2 |
1.4 |
1.6 |
1.8 |
